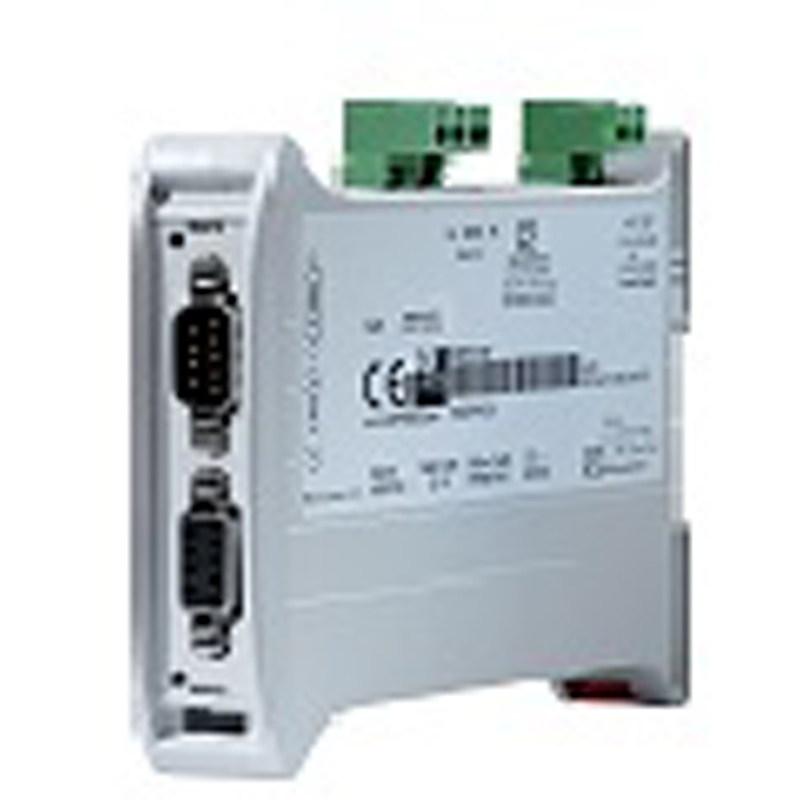

EthernetIP to CAN

Part No.: MPADFW-EthernetIP-to-CAN
This series of products allows to integrate an EtherNet/IP network with a CAN net.

產品介紹

EtherNet/IP - CAN Converter

EtherNet/IP - CANopen Converter

This series of products allows to integrate an EtherNet/IP network with a CAN net.

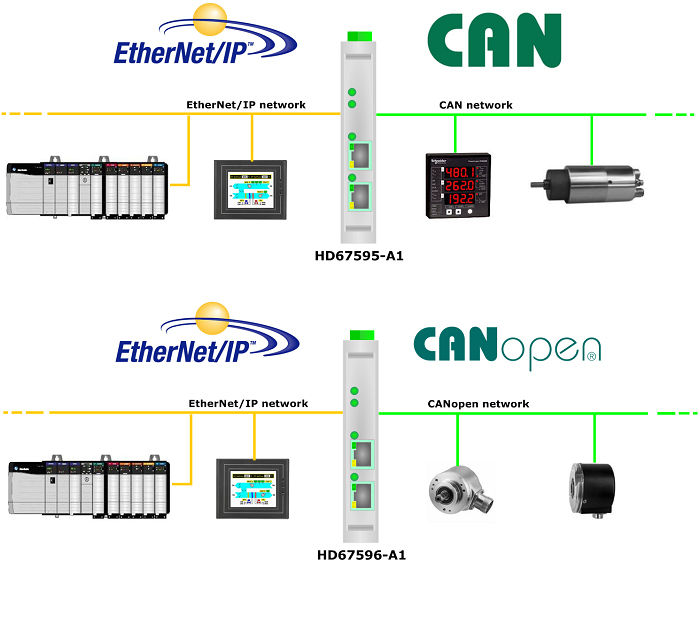

The HD67595 is a EtherNetIP / CAN Converter and it allows you to connect some CAN devices with an EtherNetIP net (for example an Allen Bradley PLC...) in order to exchange the informations between the networks.

The HD67596 is a EtherNetIP / CANopen Converter and it allows you to connect some CANopen devices with an EtherNetIP net (for example an Allen Bradley PLC...) in order to exchange the informations between the networks.

The HD67645 is a EtherNetIP Master / CAN Converter and it allows you to connect some CAN devices with some EtherNetIP devices (for example Encoder, I/O...) in order to exchange the informations between the networks.

The HD67646 is a EtherNetIP Master / CANopen Converter and it allows you to connect some CANopen devices with some EtherNetIP devices (for example Encoder, I/O...) in order to exchange the informations between the networks.

In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use the switch and extend the line.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67419 - EtherNetIP / CAN, STRONG Converter
  • HD67429 - EtherNetIP / CANopen, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between CAN/Ethernet - CAN/Power Supply - Ethernet/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series CAN from/to EtherNet/IP



HD67595-A1

EtherNet/IP / CAN - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xEtherNet/IP
Data Rates CAN Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67595



HD67645-A1

EtherNet/IP Master/ CAN - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )



Ports 1xCAN; 1xEtherNet/IP
CAN Protocol CAN 2.0A and CAN 2.0B
Ethernet Protocol EtherNet/IP Master
Data Rates CAN Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67645



EtherNet/IP / CAN Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kVbetween CAN/EtherNet/IP - CAN/Power Supply – EtherNet/IP/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67419-E4V

EtherNet/IP / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates CAN up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CAN Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67419



HD67419-E4R

EtherNet/IP / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEthernet
Data Rates CAN up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CAN Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67419



HD67419-E7V

EtherNet/IP / CAN - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates CAN up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CAN Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67419



HD67419-E7R

EtherNet/IP / CAN - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEthernet
Data Rates CAN up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CAN Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67419



Series CANopen from/to EtherNet/IP



HD67596-A1

EtherNet/IP / CANopen - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )





Ports 1xCANopen; 2xEtherNet/IP
Data Rates CANopen Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67596



HD67646-A1

EtherNet/IP Master / CANopen - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )



Ports 1xCANopen; 2xEtherNet/IP
CAN Protocol CANopen
Ethernet Protocol EtherNet/IP Master
Data Rates CANopen Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67646



EtherNet/IP / CANopen Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kVbetween CANopen/EtherNet/IP - CANopen/Power Supply – EtherNet/IP/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67429-E4V

EtherNet/IP / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates CANopen up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CANopen Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs
76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67429



HD67429-E4R

EtherNet/IP / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEthernet
Data Rates CANopen up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CANopen Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67429



HD67429-E7V

EtherNet/IP / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates CANopen up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CANopen Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs
76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67429



HD67429-E7R

EtherNet/IP / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )




Ports 1xCAN, 1xEthernet
Data Rates CANopen up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
CANopen Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67429



Series CAN from/to EtherNet



HD67644-A1

CAN / Ethernet - Converter ( Modality of exchange of the CAN frame: Transparent Tunnelling or Polling with buffering )





Ports 1xCAN; 1xEthernet
Data Rates CAN Up to 1 Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
Ethernet Connector RJ45
Ethernet Protocol TCP or UDP
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67644



HD67644-B2

CAN / Ethernet - Converter ( Modality of exchange of the CAN frame: Transparent Tunnelling or Polling with buffering )





Ports 1xCAN; 1xEthernet
Data Rates CAN Up to 1 Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
Ethernet Connector RJ45
Ethernet Protocol TCP or UDP
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67644



HD67644-WiFi-A1

CAN / WiFi - Converter ( Modality of exchange of the CAN frame: Transparent Tunnelling or Polling with buffering )





Ports 1xWi-Fi; 1xCAN; 1xUSB (programmation port)
Data Rates CAN Up to 1 Mbps
Data Rates Wi-Fi 802.11b/g standard
CAN Connector 3way 5mm terminal block
Wi-Fi Connector SMA Female Antenna
CAN Protocol CAN 2.0A and CAN 2.0B
Wi-Fi Protocol TCP or UDP
Power Supply Connector 2way 5mm terminal block
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67644



Tools Accessories



HD67316-E-A1

CAN Analyzer Hardware and Software ( PC Interface port: Ethernet )





Ports 1xCAN; 1xEthernet
CAN Baudrate Up to 1Mbps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x36x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67216



HD67316-U-D1

CAN Analyzer Hardware and Software ( PC Interface port: USB )





Standard ISO 11898
Ports 1xCAN; 1xUSB
CAN Baudrate Up to 1Mbps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply Given by USB port
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 119x27x65 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67216



Accessories



Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
