EtherNet/IP to BACnet
Part No.: MPADFW-EthernetIP-to-BACnet
This series of products allows to integrate a BACnet network with an EtherNetIP net.
產品介紹

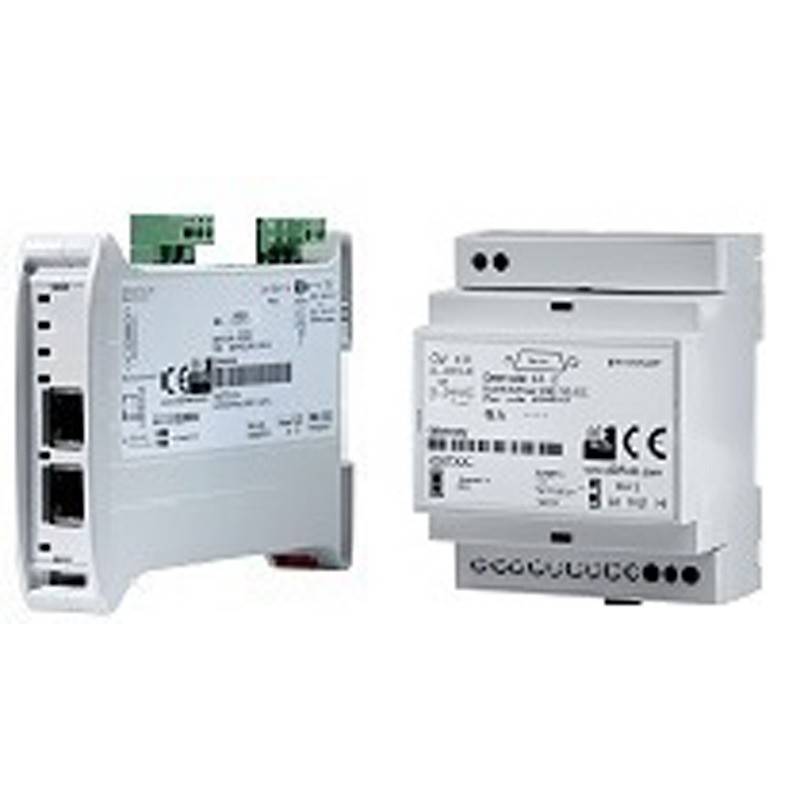

BACnet / EtherNetIP - Converter
This series of products allows to integrate a BACnet network with an EtherNetIP net.
The HD67682 is a BACnet Slave / EtherNetIP Converter and it allows you to connect a BACnet Master net with an EtherNeIP net (for example an OMRON PLC, an Allen-Bradley PLC...) in order to exchange the informations between the networks.
The HD67689 is a BACnet Slave / EtherNetIP Master Converter and it allows you to connect a BACnet Master net with some EtherNeIP devices (for example Encoder, I/O...) in order to exchange the informations between the networks.
The HD67722 is a BACnet Master / EtherNetIP Converter and it allows you to connect some BACnet Slaves devices with an EtherNeIP net (for example an OMRON PLC, an Allen-Bradley PLC...) in order to exchange the informations between the networks.
HD67682-IP, HD67689-IP, HD67722-IP support both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67682-MSTP, HD67689-MSTP, HD67722-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
BACnet Slave / EtherNet/IP Slave series
HD67682-IP-A1
BACNet IP / EtherNet/IP Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Slave | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| EtherNet IP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67682 | |
HD67682-MSTP-A1
BACnet MSTP Slave / EtherNet IP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Slave | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
|
Operating Temperature
|
-40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67682 | |
HD67682-MSTP-B2
BACnet MSTP Slave / EtherNet IP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Slave | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67682 | |
BACnet Slave / EtherNet/IP Master series
HD67689-IP-A1
BACNet IP Slave/ EtherNet/IP Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Master | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| EtherNet IP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67689 | |
HD67689-MSTP-A1
BACnet MSTP Slave / EtherNet IP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Master | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67689 | |
HD67689-MSTP-B2
BACnet MSTP Slave / EtherNet IP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Master | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67689 | |
BACnet Master / EtherNet/IP Slave series
HD67722-IP-A1
BACNet IP Master/ EtherNet/IP Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNet IP Slave | |
| BACnet Protocol | BACNet IP Master | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| EtherNet IP Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67722 | |
HD67722-MSTP-A1
BACnet MSTP Master / EtherNet IP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNetIP slave | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67722 | |
HD67722-MSTP-B2
BACnet MSTP Master / EtherNet IP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| EtherNetIP Protocol | EtherNetIP slave | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates EtherNetIP | 10/100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| EtherNetIP Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67722 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
