EnOcean to IEC61850

Part No.: MPADFW-EnOcean-to-IEC61850
This series of products allows to integrate some EnOcean devices into a IEC61850 network.

產品介紹

EnOcean / IEC61850 - Converter

This series of products allows to integrate some EnOcean devices into a IEC61850 network.

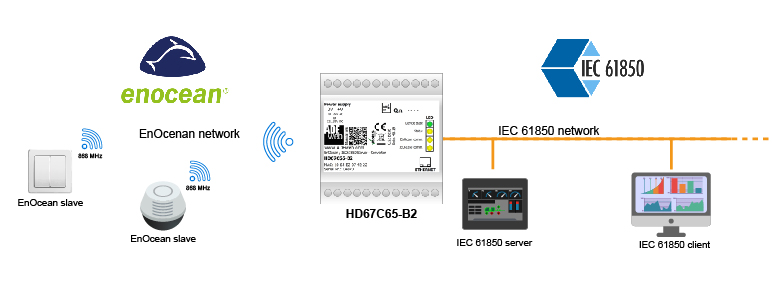

The HD67C65 is an EnOcean / IEC61850 Server Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some EnOcean devices in order to exchange informations between the nets.



EnOcean / IEC61850 Server Converters

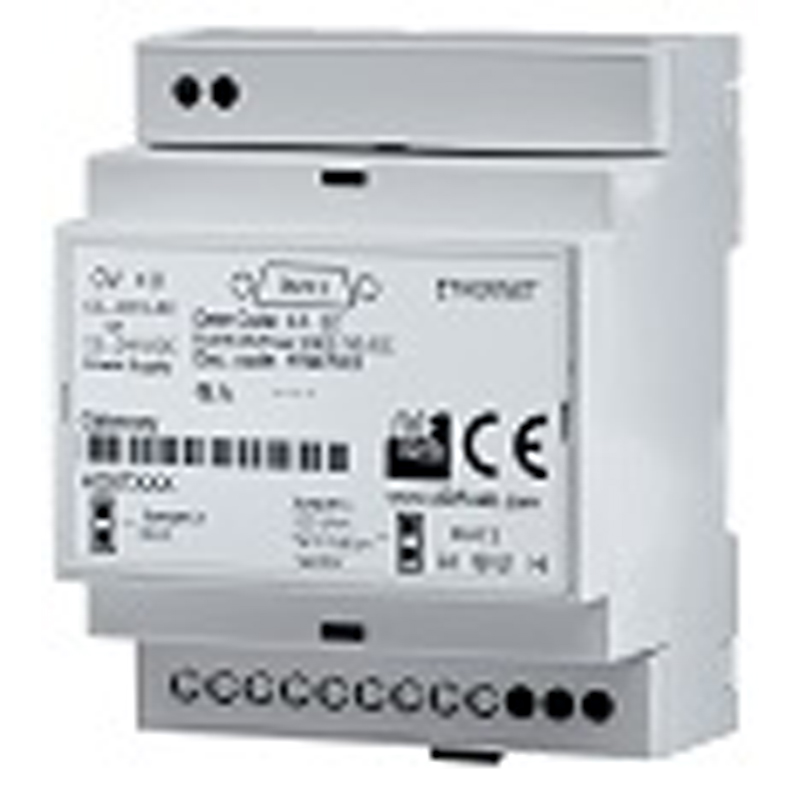

HD67C65-B2

EnOcean / IEC61850 Server - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xEthernet
IEC61850 Protocol IEC61850 Server
Ethernet Protocol EnOcean
Data Rates IEC61850 10/100 Base-T Autosensing
Data Rates EnOcean 10/100 Base-T Autosensing
IEC61850 Connector RJ45
EnOcean Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 70x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67C65



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
