DeviceNet to MQTT

Part No.: MPADFW-DeviceNet-to-MQTT
This series of products allows you to integrate a DeviceNet network with the IoT world based on MQTT net.

產品介紹

IoT Gateway

DeviceNet / MQTT - Converter

This series of products allows you to integrate a DeviceNet network with the IoT world based on MQTT net.

The HD67942-B2 are DeviceNet Master / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server from/to DeviceNet Slaves.

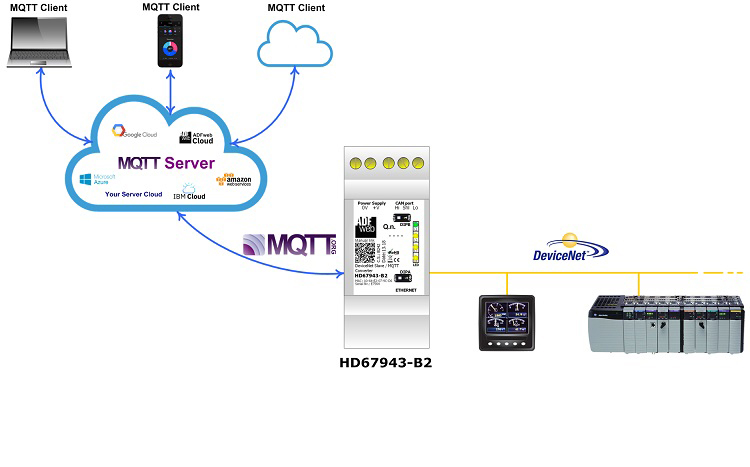

The HD67943-B2 are DeviceNet Slave / MQTT Converters.
They allow to publish and get the data into/from a MQTT Server using a DeviceNet Master (like Rockwell PLC etc.).

These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.

The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.



HD67942-B2

DeviceNet / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
EtherNet Protocol MQTT
CAN Protocol DeviceNet Master
Data Rates CAN Up to 1Mbps
Data Rates MQTT 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
MQTT Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 36x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67942



HD67943-B2

DeviceNet Slave/ MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
EtherNet Protocol MQTT
CAN Protocol DeviceNet Slave
Data Rates CAN Up to 1Mbps
Data Rates MQTT 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
MQTT Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 36x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67943



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
