DeviceNet to KNX
Part No.: MPADFW-DeviceNet-to-KNX
This series of products allows to integrate a DeviceNet network with a KNX net.
產品介紹
DeviceNet / KNX - Converter
This series of products allows to integrate a DeviceNet network with a KNX net.

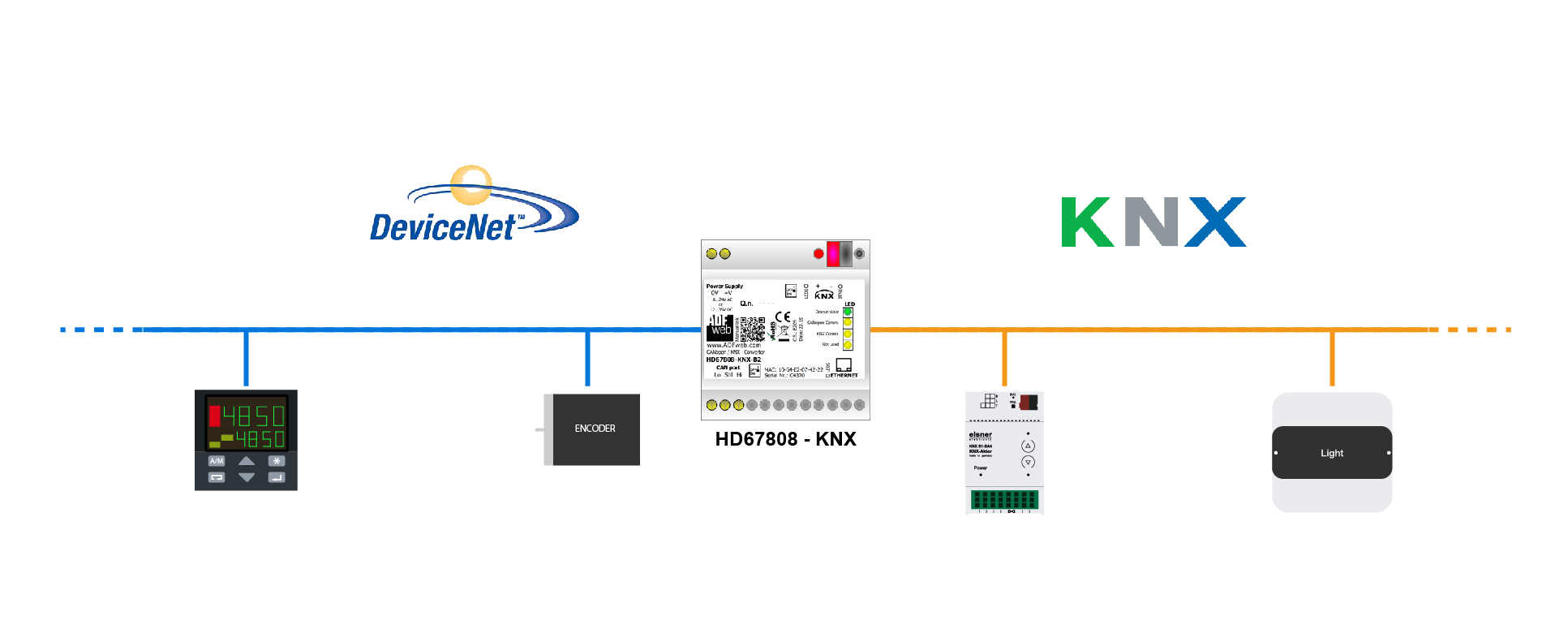

The HD67808 is a DeviceNet Master / KNX Converter and it allows you to connect some DeviceNet Slaves with a KNX net (for example light switches, actuators ).

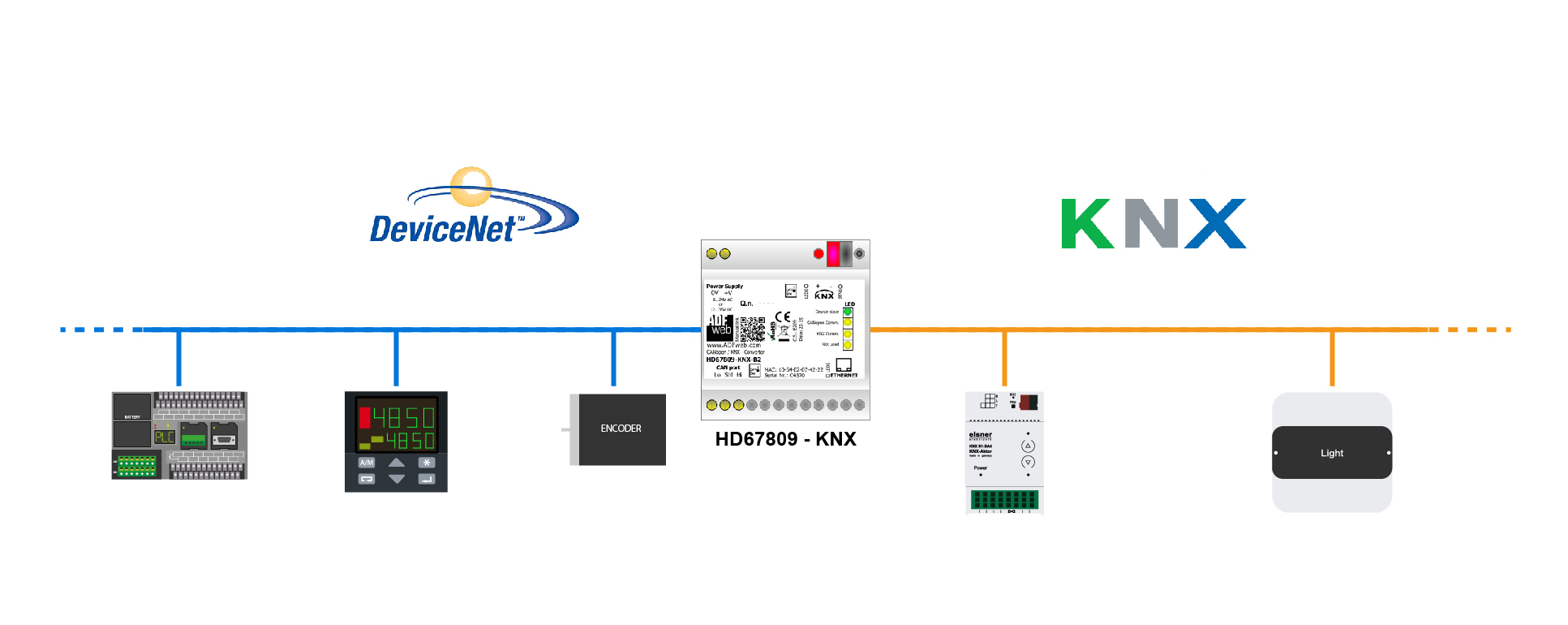

The HD67809 is a DeviceNet Slave / KNX Converter and it allows you to connect a DeviceNet Master net (for example an Allen-Bradley PLC, a ABB robot ) with a KNX net (for example light switches, actuators ) in order to exchange the informations between the networks.
This converters are very easy to configure and allows you to interface a DeviceNet system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.
DeviceNet / KNX series
HD67808-KNX-B2
DeviceNet Master / KNX - Converter (Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xCAN | |
|---|---|---|
| KNX Protocol | KNX TP | |
| DeviceNet Protocol | DeviceNet Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates DeviceNet | Up to 500 Kbps | |
| KNX Connector | KNX Bus connector | |
| DeviceNet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67808 | |
HD67809-KNX-B2
DeviceNet Slave / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xCAN | |
|---|---|---|
| KNX Protocol | KNX TP | |
| DeviceNet Protocol | DeviceNet Slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates DeviceNet | Up to 500 Kbps | |
| KNX Connector | KNX Bus connector | |
| DeviceNet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67809 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX power Supply - KNX out 640mA + AUX out 640VDC - in 240VAC |
