DeviceNet to EtherNet/IP

Part No.: MPADFW-DeviceNet-to-EtherNetIP

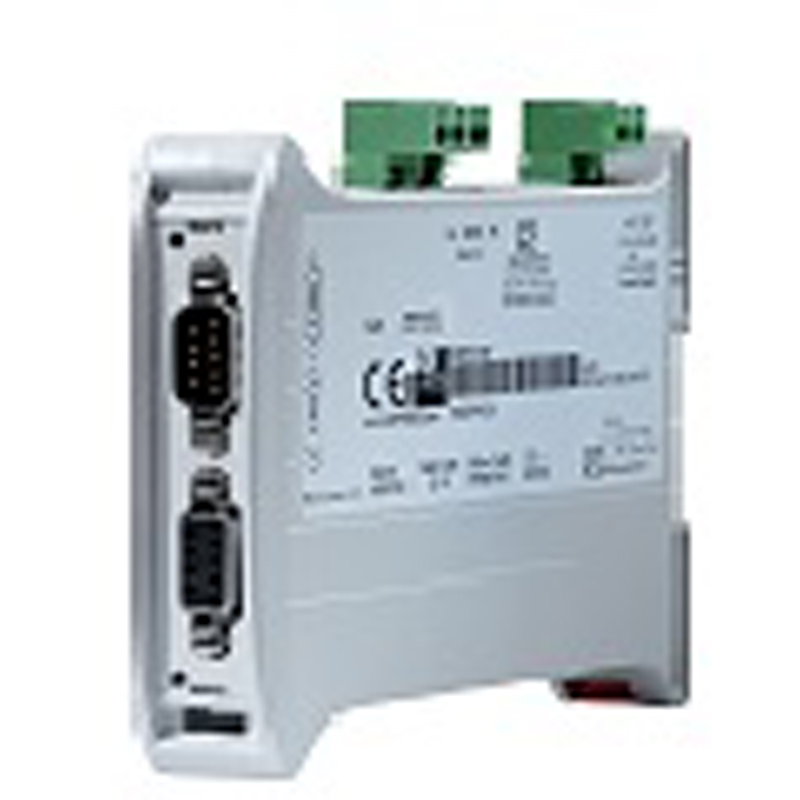

This series of products allows to integrate an EtherNet/IP network with a DeviceNet net.

產品介紹

EtherNetIP / DeviceNet - Converter

This series of products allows to integrate an EtherNet/IP network with a DeviceNet net.

The HD67597 is a EtherNetIP / DeviceNet Master Converter and it allows you to connect an EtherNetIP net (for example an Omron PLC or Allen-Bradley PLC...) with some DeviceNet Slaves.

The HD67598 is a EtherNetIP / DeviceNet Slave Converter and it allows you to connect an EtherNetIP net (for example an Omron PLC or Allen-Bradley PLC...) with a DeviceNet Master net (for example an Allen-Bradley PLC...) .

The HD67647 is a EtherNetIP Master / DeviceNet Slave Converter and it allows you to connect some EtherNetIP devices (for example Encoder, I/O...) with a DeviceNet Master net (for example an Allen-Bradley PLC...) .

In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use the switch and extend the line.

Ethernet / DeviceNet - Converter

The HD67043 is a Ethernet / DeviceNet Slave Converter and it allows you to connect an Ethernet net with a DeviceNet Master network (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.

The HD67154 is a Ethernet / DeviceNet Master Converter and it allows you to connect some DeviceNet Slaves with an existing Ethernet network.

They are available with differents connectors:

  • HD67154-A1 - Ethernet / DeviceNet Master (Terminal Blocks Connectors)
  • HD67154-A3 - Ethernet / DeviceNet Master (M12 Connectors)
  • HD67154-A4 - Ethernet / DeviceNet Master (Mini-Fit Connectors)

Series DeviceNet from/to EtherNet/IP


HD67597-A1

EtherNet/IP / DeviceNet Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )




Ports 1xDeviceNet; 1xEtherNet/IP
Data Rates DeviceNet Up to 500kbps
Data Rates Ethernet 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67597



HD67598-A1

EtherNet/IP / DeviceNet Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )





Ports 1xDeviceNet; 1xEtherNet/IP
Data Rates DeviceNet Up to 500kbps
Data Rates Ethernet 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67598



HD67647-A1

EtherNet/IP Master / DeviceNet Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )





Ports 1xDeviceNet; 1xEtherNet/IP
Data Rates DeviceNet Up to 500kbps
Data Rates Ethernet 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67647



Series DeviceNet from/to EtherNet



HD67043-A1

Ethernet / DeviceNet Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67043



HD67043-B2

Ethernet / DeviceNet Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67043



HD67154-A1

Ethernet / DeviceNet Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67154



HD67154-B2

Ethernet / DeviceNet Master - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67154



HD67316-U-D1

CAN Analyzer Hardware and Software ( PC Interface port: USB )





Standard ISO 11898
Ports 1xCAN; 1xUSB
CAN Baudrate Up to 1Mbps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply Given by USB port
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 119x27x65 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67216



Ports 1xCAN; 1xEthernet/IP
Data Rates CAN Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8…24V AC; 12…35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing
DIN Rail montage



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
