DMX to KNX

Part No.: MPADFW-DMX-to-KNX
This series of products allows to integrate a DMX network with a KNX net.

產品介紹

DMX / KNX - Converter

This series of products allows to integrate a DMX network with a KNX net.

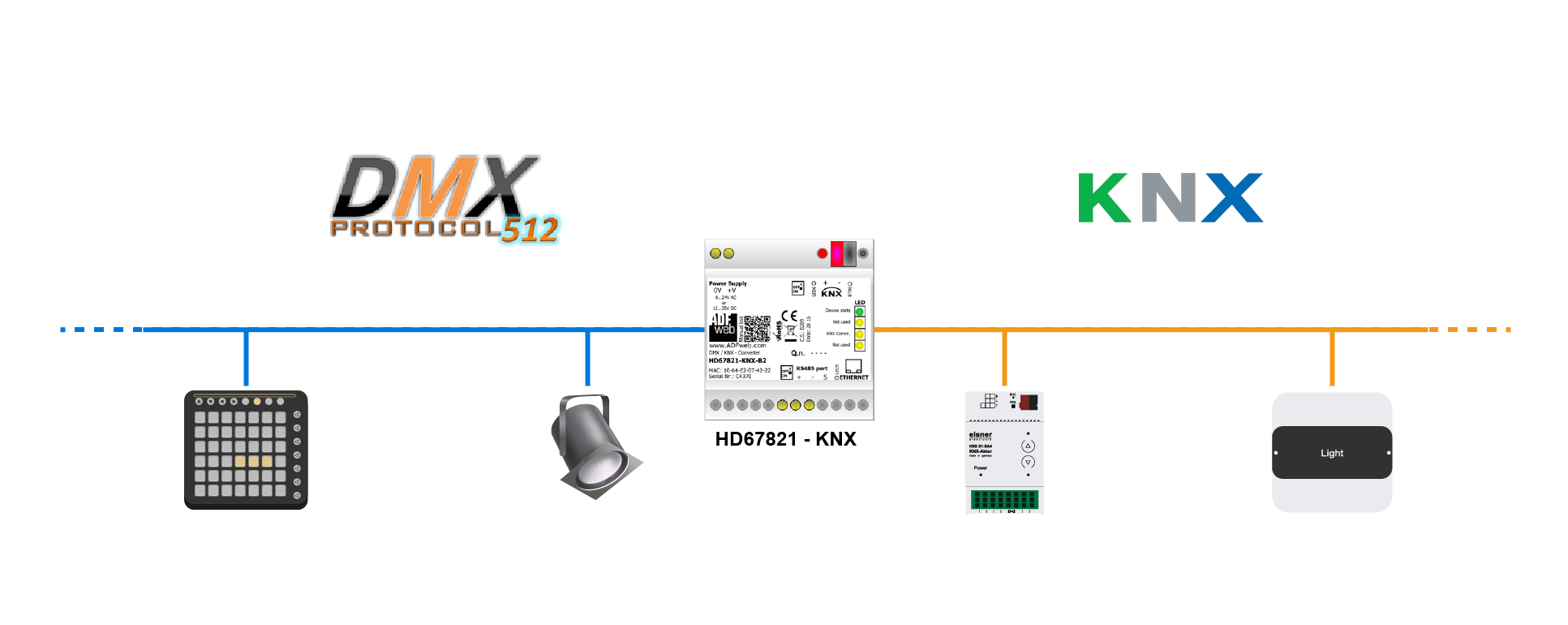

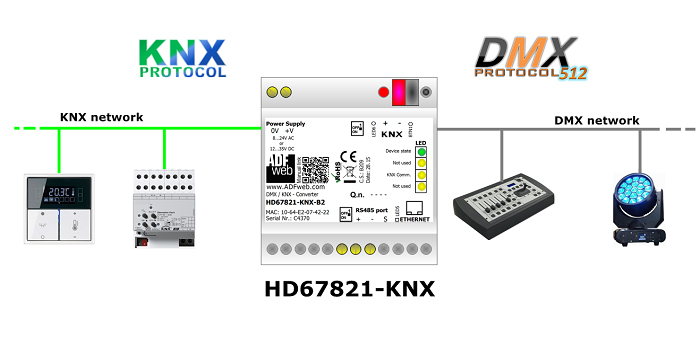

The HD67821-KNX is a DMX / KNX Converter and it allows you to connect some DMX devices (for example a Light System...) with an KNX network (for example some sensors, dimmers, KNX smart HOME System...) in order to exchange the informations between the networks.


This converters are very easy to configure and allows you to interface an DMX system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.



DMX / KNX series

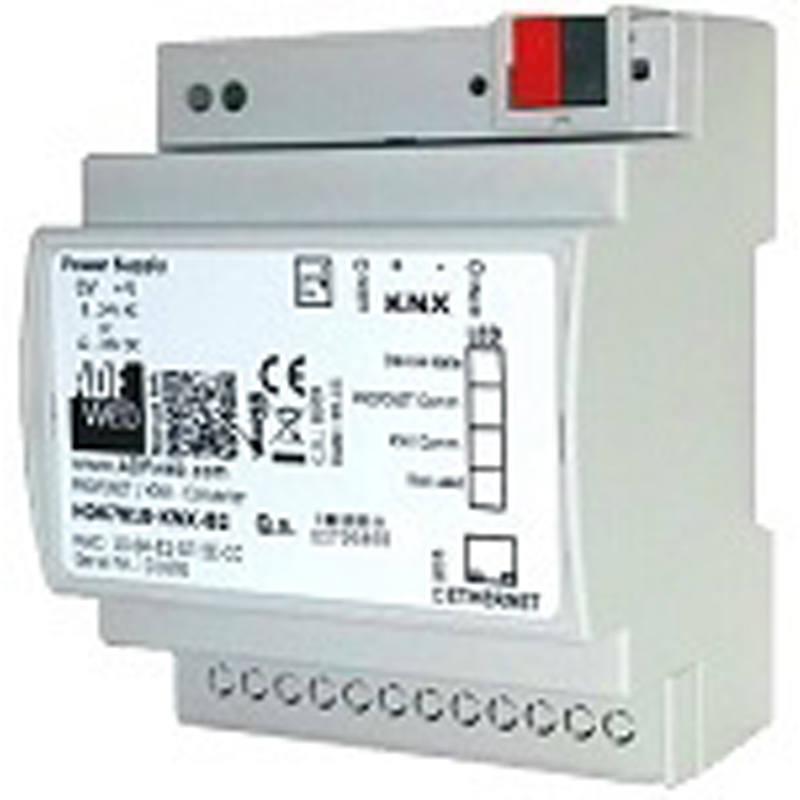

HD67821-KNX-B2

DMX / KNX - Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xKNX; 1xRS485
KNX Protocol KNX TP
RS485 Protocol DMX512
Data Rates KNX 9600 bps
Data Rates DMX 250 kbps
KNX Connector KNX Bus connector
DMX Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67821



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34-AB1TP KNX Power Supply - KNX out 640mA - in 240VAC
AC34-AG1TP KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC
