DALI to Modbus
Part No.: MPADFW-DALI-to-Modbus
This series of products allows to integrate some DALI & DALI-2 devices into a Modbus network.
產品介紹
DALI / Modbus - Converter
DALI / Modbus TCP - Converter
This series of products allows to integrate some DALI & DALI-2 devices into a Modbus network.

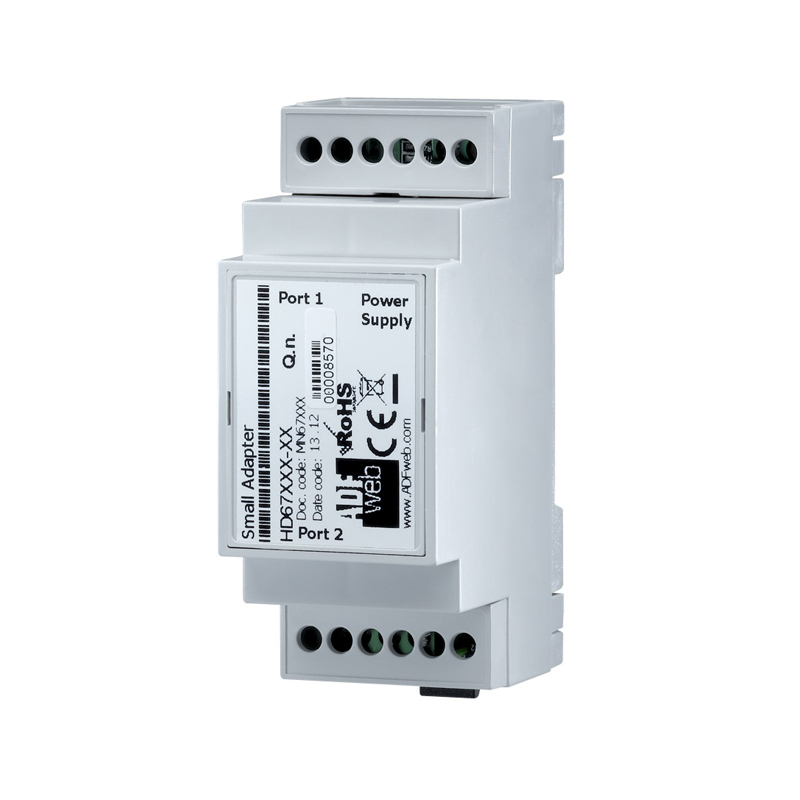

The HD67842-B2 is a DALI / Modbus Master Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with some Modbus slaves in order to exchange informations between the nets.
The HD67843-B2 is a DALI / Modbus Slave Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with a Modbus Master ( like a PLC ) in order to exchange informations between the nets.
The HD67844-B2 is a DALI / Modbus TCP Master Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with some Modbus TCP slaves in order to exchange informations between the nets.
The HD67845-B2 is a DALI / Modbus TCP Slave Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with a Modbus TCP Master ( like a PLC ) in order to exchange informations between the nets.
To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
.png)
It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.
DALI / Modbus RTU series
HD67842-B2
DALI / Modbus RTU Master - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xRS485 | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | Modbus RTU Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 115200 bps | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67842 | |
HD67843-B2
DALI / Modbus RTU Slave - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xRS485 | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | Modbus RTU Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | Up to 115200 bps | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67843 | |
DALI / Modbus TCP series
HD67844-B2
DALI / Modbus TCP Master - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | Modbus TCP Master | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67844 | |
HD67845-B2
DALI / Modbus TCP Slave - Converter ( Housing type: B, Fixed Terminal Blocks )
| Ports | 1xDALI; 1xEthernet | |
|---|---|---|
| DALI Protocol | DALI | |
| Ethernet Protocol | Modbus TCP Slave | |
| Data Rates DALI | 1200 bps | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| DALI Connector | 2way 5mm terminal block | |
| DALI Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67845 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
