This series of products allows to integrate some DALI & DALI-2 devices into a MQTT network.
The HD67941-B2 are DALI / MQTT Converters.
They allow to publish and get the data from/to a DALI network into/from a MQTT Server.
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud.. etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.
To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:
It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.

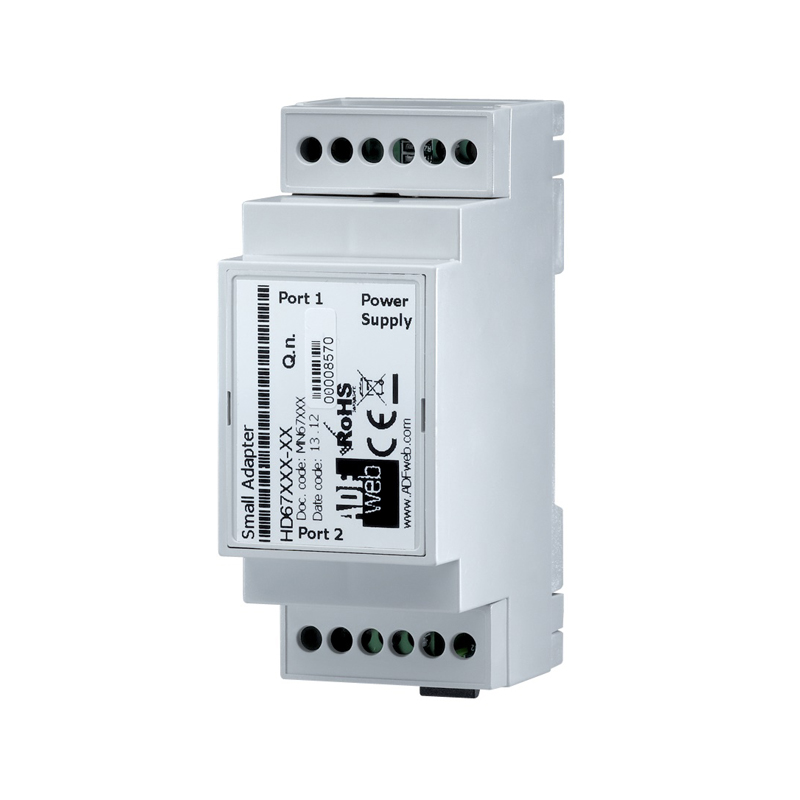

DALI / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
|Data Rates DALI||1200 bps|
|Data Rates BACnet||10/100 Base-T Autosening|
|DALI Connector||2way 5mm terminal block|
|Power Supply||8..24V AC; 12..35V DC|
|Power Supply Connector||2way 5mm terminal block|
|Operating Temperature||-40ºC/+85ºC (-40ºF/+185ºF)|
|Mechanical Fixing||DIN Rail montage|
|AC34011||Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC|
|AC34012||Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC|
|AC34131||Patch Cross Cable Cat6 2 Meters|
