DALI to KNX

Part No.: MPADFW-DALI-to-KNX
This series of products allows to integrate some DALI & DALI-2 devices into a KNX network.

產品介紹

DALI / KNX - Converter

This series of products allows to integrate some DALI & DALI-2 devices into a KNX network.

The HD67822-KNX-B2 is a DALI / KNX Converter so you can connect a DALI net ( like a light system, Sensors etc.. ) with a KNX network ( like light switches, actuaros etc.. ) in order to exchange informations between the nets.

This converters are very easy to configure and allows you to interface a DALI system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.

To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:


It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.

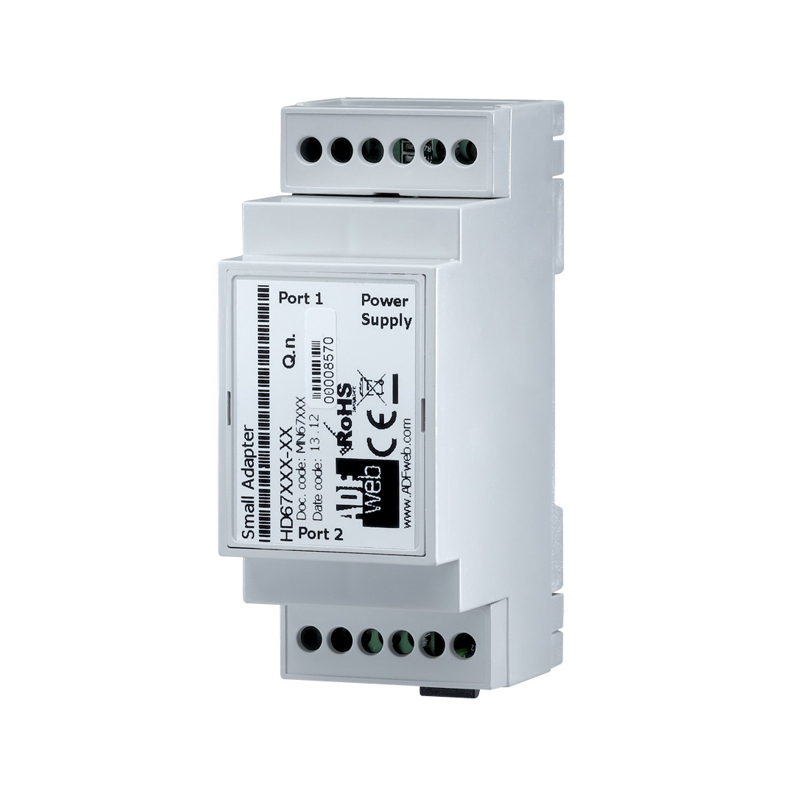

HD67822-KNX-B2

DALI / KNX - Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xDALI; 1xEthernet
DALI Protocol DALI
Ethernet Protocol KNX TP
Data Rates DALI 1200 bps
Data Rates BACnet 9600 bps
DALI Connector 2way 5mm terminal block
DALI Connector KNX Bus connector
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67822






Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
