CAN to DALI

Part No.: MPADFW-CAN-to-DALI
This series of products allows to integrate some DALI & DALI-2 devices into a CAN network.

產品介紹

DALI / CAN - Converter

This series of products allows to integrate some DALI & DALI-2 devices into a CAN network.

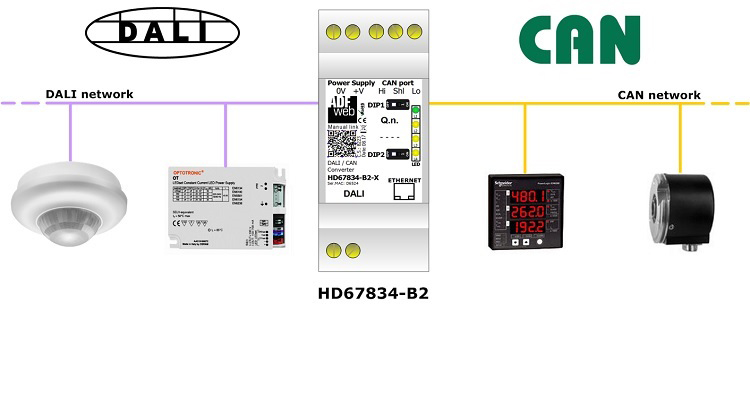

The HD67834-B2 is a DALI / CAN Converter so you can connect a DALI net ( a light system, Sensors etc.. ) with a CAN network in order to exchange informations between the nets.

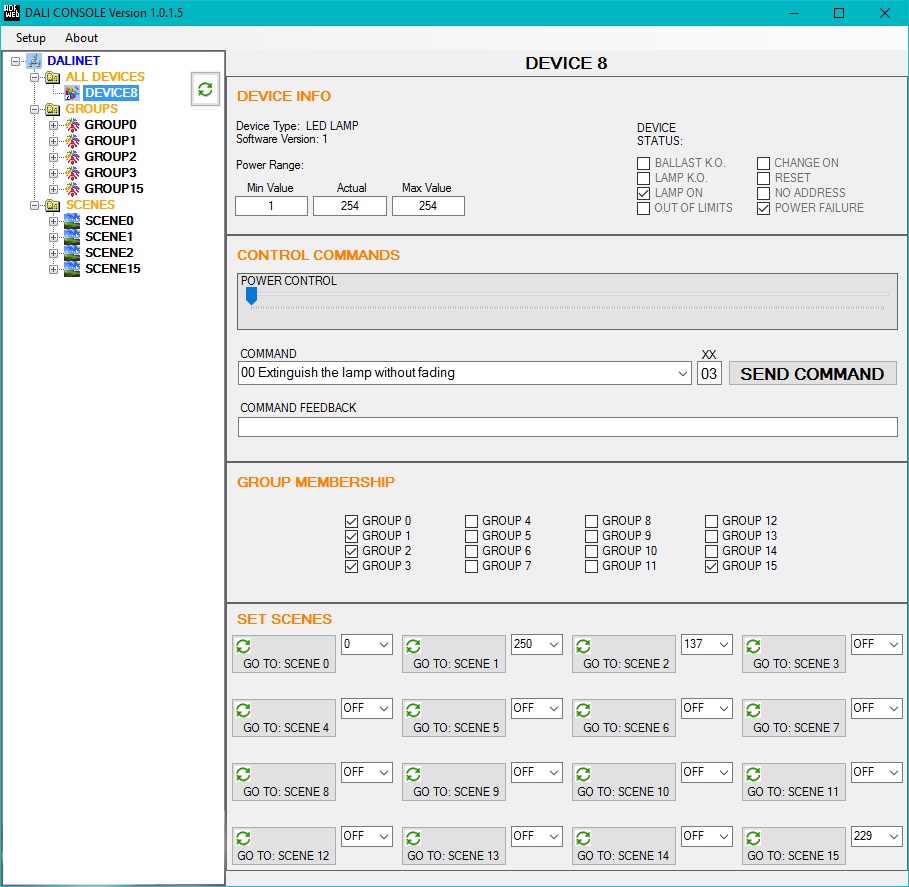

To configure DALI network and test the communication, it is possible to use the available software that runs with Windows called DALI Console:


It works with the LAN port.
This software is very simple and it allows to see all the DALI devices connected to the converter, the Groups and the Scenes set; set/manage all their parameters.



DALI / CAN



HD67834-B2

DALI / CAN - Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xDALI; 1xCAN
DALI Protocol DALI
CAN Protocol CAN
Data Rates DALI 1200 bps
Data Rates CAN Up to 1 Mbps
DALI Connector 2way 5mm terminal block
CAN Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67834



DALI / CANopen



HD67835-B2

DALI / CANopen - Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xDALI; 1xCAN
DALI Protocol DALI
CAN Protocol CANopen
Data Rates DALI 1200 bps
Data Rates CANopen Up to 1 Mbps
DALI Connector 2way 5mm terminal block
CANopen Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67835



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
