CAN to 232/485

Part No.: MPADFW-CAN-to-232-485
This series of products allows to integrate a CAN network with a RS232 or Ethernet or USB net.

產品介紹

RS232/Ethernet/USB to CAN - Converter

This series of products allows to integrate a CAN network ( CAN2.0A, CAN2.0B, CANopen, J1939, NMEA2000, DeviceNet ) with a RS232 or Ethernet or USB net.

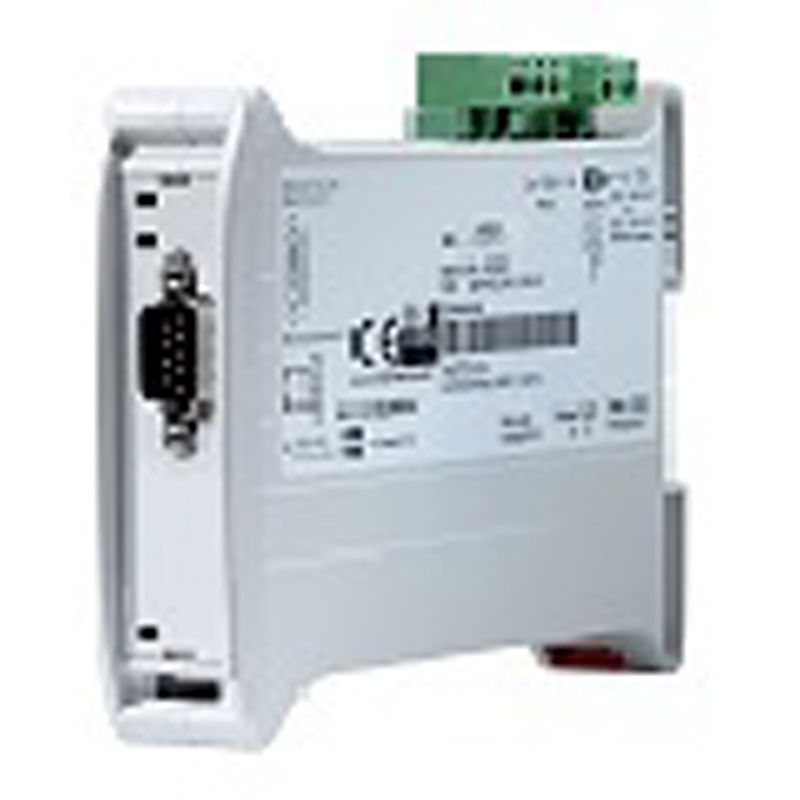

The HD67290 is a CAN / RS232 Converter and it allows you to connect a CAN network with a RS232 network.

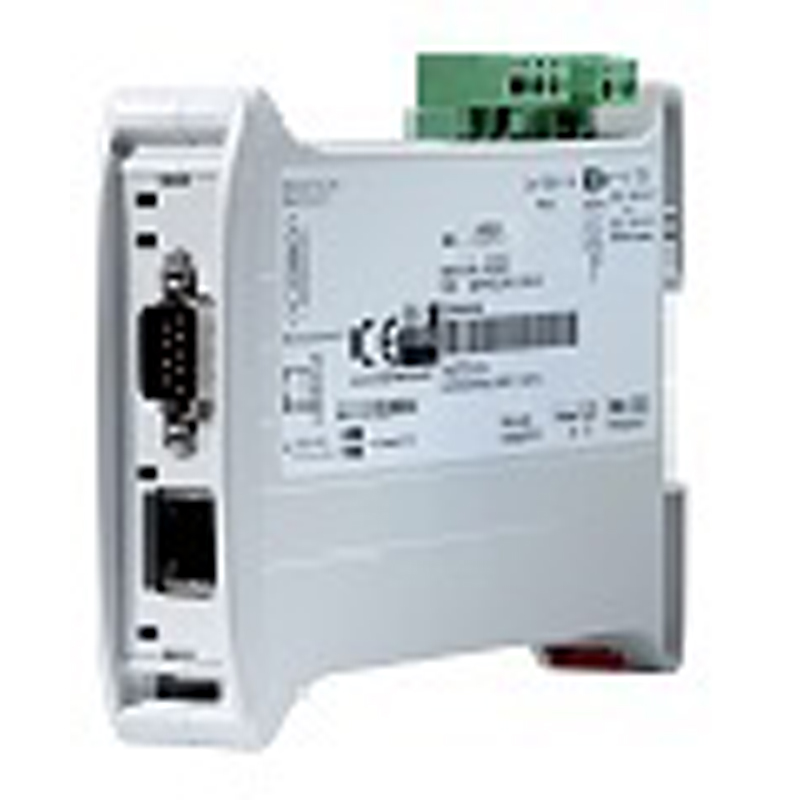

The HD67390-E-A1 is a CAN / Ethernet Converter and it allows you to connect a CAN network with an Ethernet network.

The HD67390-U-D1 is a CAN / USB Converter and it allows you to connect a CAN network with an USB network.

To configure the device use our free software, it is very easy.


HD67290

CAN / RS232 - Converter




Ports ​1 x CAN 2.0
1 x RS232 for Re-Program
CAN Baudrate Baud Rate From 10K up to 1M bps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply 8..19V AC
8..35V DC
EMI Compliance EN 61000-6-2
FCC part 15 of Class A
Operating Temperature -40ºC / +85ºC (-40ºF/ +185ºF)
Dimensions 120x23x107(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67290



HD67390-U-D1

Gateway CAN from/to USB (Device Table)




Ports
1xCAN
1xUSB
CAN Baudrate Baud Rate From 10K up to 1M bps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply
8..19V AC
8..35V DC
EMI Compliance
EN 61000-6-2
FCC part 15 of Class A
Operating Temperature ​-40ºC /+85ºC (-40ºF/ +185ºF)
Dimensions 119x27x65(DxWxH)
Weight 200g approx
Mechanical Fixing Device table



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator

  • Designed for serius use

  • Very easy to configure

  • Low cost

  • Rail din mountable

  • Wide supply input range

  • Galvanic isolation

  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
