BACnet to KNX
Part No.: MPADFW-BACnet-to-KNX
This series of products allows to integrate a BACnet network with a KNX net.
產品介紹
BACnet / KNX - Converter
This series of products allows to integrate a BACnet network with a KNX net.
The HD67801 is a BACnet Master / KNX Converter and it allows you to connect some BACnet Slaves with a KNX net (for example light switches, actuators…).
The HD67802 is a BACnet Slave / KNX Converter and it allows you to connect a BACnet Master net (for example a PC, a Supervisory System…) with a KNX net (for example light switches, actuators…) in order to exchange the informations between the networks.
This converters are very easy to configure and allows you to interface a BACnet system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.
HD67801-KNX-BIP, HD67802-KNX-BIP supports both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67801-KNX-BMSTP, HD67802-KNX-BMSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
BACnet / KNX series

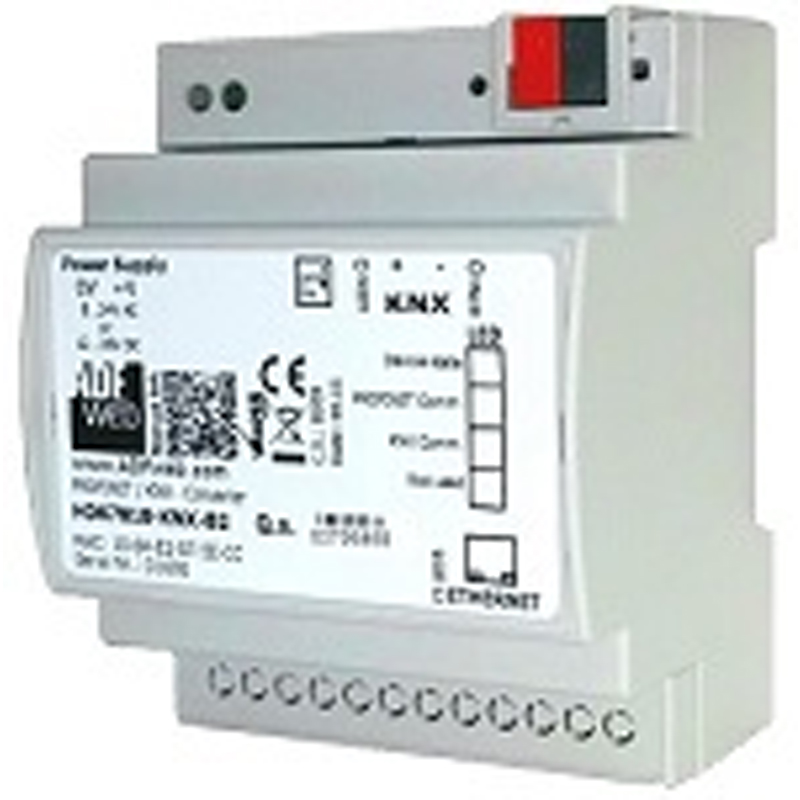

HD67801-KNX-BIP-B2
BACNet IP Master / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| BACnet Protocol | BACNet IP Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67801 | |
HD67801-KNX-BMSTP-B2
BACNet MSTP Master / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS485 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| BACnet Protocol | BACNet MS/TP Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates BACnet | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67801 | |
HD67802-KNX-BIP-B2
BACNet IP slave/ KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| BACnet Protocol | BACNet IP slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67802 | |
HD67802-KNX-BMSTP-B2
BACNet MSTP slave/ KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS485 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| BACnet Protocol | BACNet MS/TP slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates BACnet | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| BACnet Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67802 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
