BACnet to BACnet

Part No.: MPADFW-BACnet-to-BACnet
This series of products are BACnet Routers that allows to integrate in the same system different BACnet networks.

產品介紹

BACnet Routers

This series of products are BACnet Routers that allows to integrate in the same system different BACnet networks.

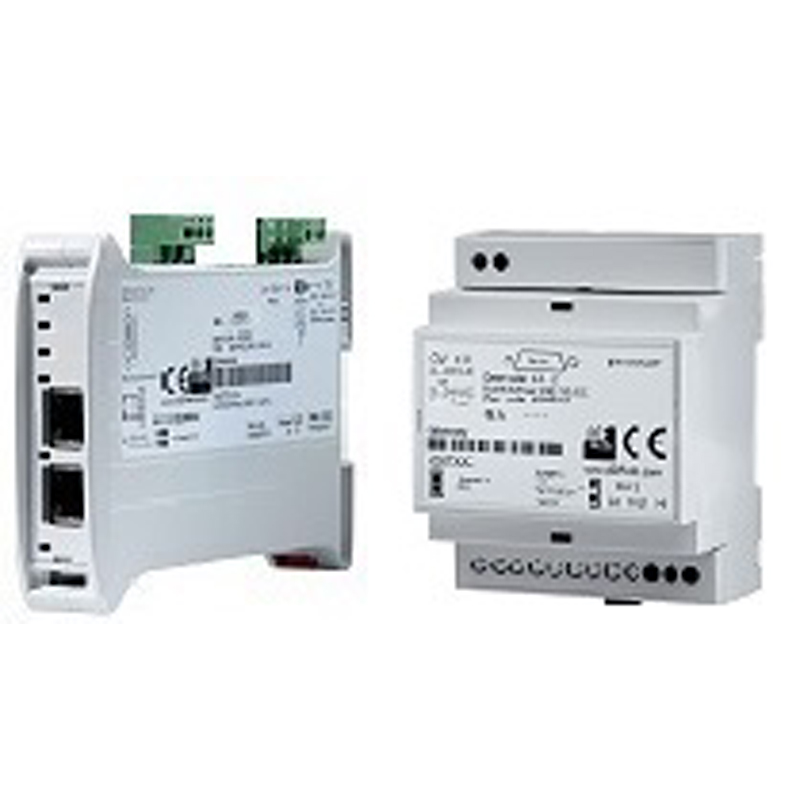

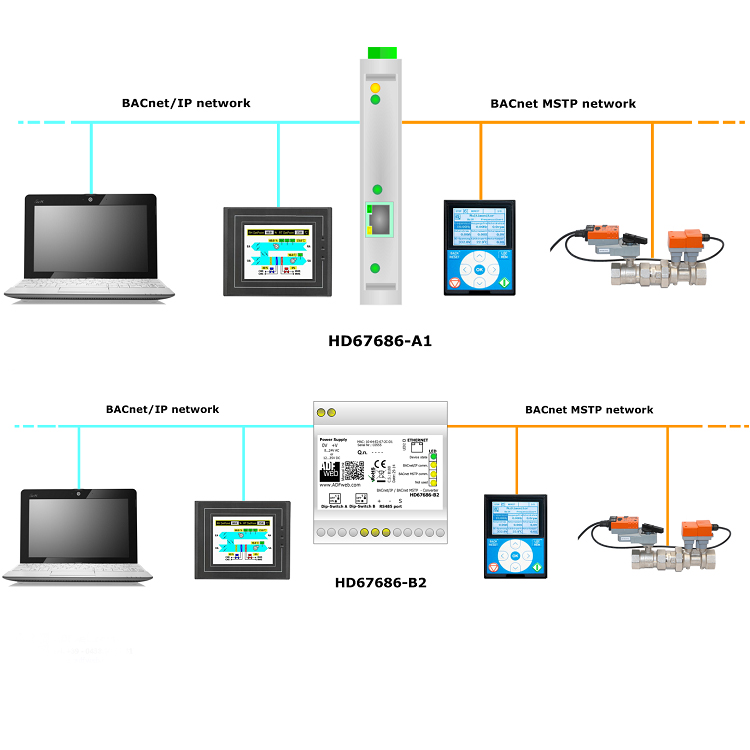

The HD67686-A1 and the HD67686-B2 converters allow you to interface a BACnet MSTP network with a BACnet IP network.
The Converters support both BACnet/IP on Ethernet side and BACnet MSTP on RS485 side.



HD67686-A1

BACnet IP / BACnet MSTP - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 1xEthernet; 1xRS485
BACnet Protocol (on Ethernet) BACnet IP
BACnet Protocol (on RS485) BACnet MSTP
Data Rates BACnet/IP 10/100 Base-T Autosensing
Data Rates BACnet MSTP Up to 115200 bps
BACnet/IP Connector RJ45
BACnet MSTP Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67686



HD67686-B2

BACnet IP / BACnet MSTP - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS485; 1xEthernet
BACnet Protocol (on Ethernet) BACnet IP
BACnet Protocol (on RS485) BACnet MSTP
Data Rates BACnet/IP 10/100 Base-T Autosensing
Data Rates BACnet MSTP Up to 115200 bps
BACnet/IP Connector RJ45
BACnet MSTP Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67686




Accessories



Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Galvanic isolation
  • Industrial temperature range: -40° to +85° (-40°F / 185°F)
