CANopen to J1939

Part No.: MPADFW-CANopen-to-J1939
This series of products allows to integrate a J1939 network with a CANopen net.

產品介紹

J1939 / CANopen - Converter

This series of products allows to integrate a J1939 network with a CANopen net.

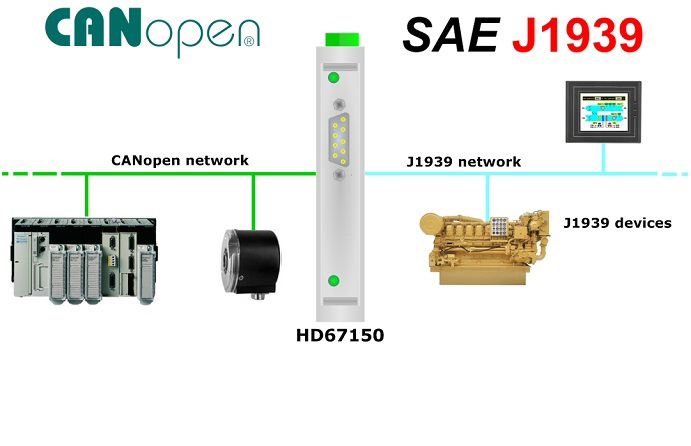

The HD67150 is a J1939 / CANopen Converter and it allows you to connect some CANopen devices with a J1939 net (for example an engine, joysticks...) in order to exchange the informations between the networks.
The automatic generation of the EDS file will help you in a quickly integration in your system.

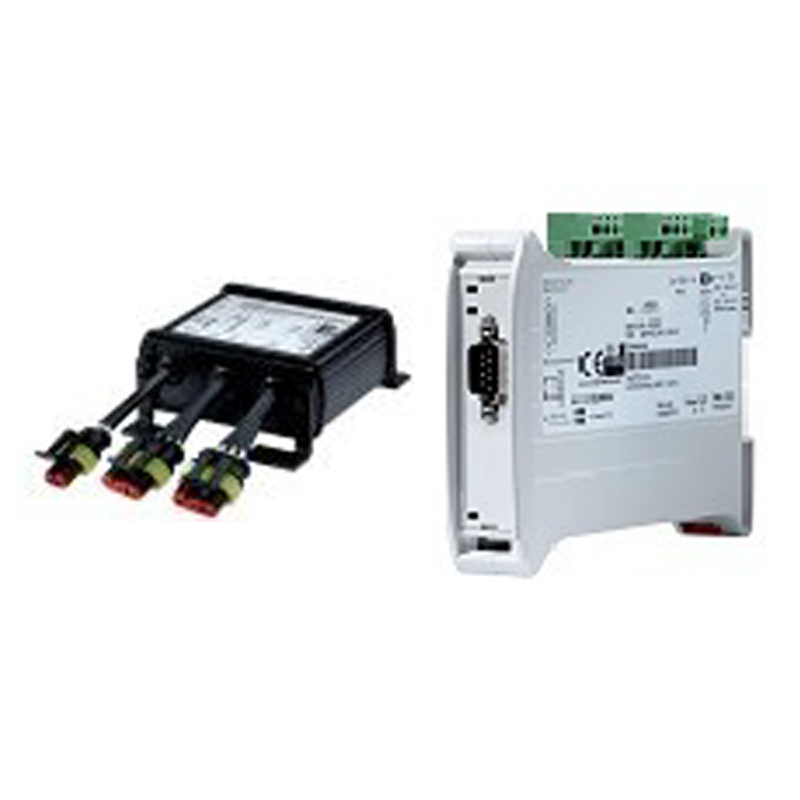

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67438 - J1939 / CANopen, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between J1939/CANopen- J1939/Power Supply - CANopen/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



HD67150

J1939 / CANopen - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xJ1939; 1xCANopen
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67150



J1939 / CANopen - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV

between CANopen/J1939 - CANopen/Power Supply – J1939/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.

Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.


HD67438-E4V

J1939 / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCANopen; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CANopen Up to 1 Mbps
J1939 Connector 3way Mini-Fit®
CANopen Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software
SW67438



HD67438-E4R

J1939 / CANopen - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCANopen; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CANopen Up to 1 Mbps
J1939 Connector 3way Mini-Fit®
CANopen Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67438

HD67438-E7V

J1939 / CANopen - Converte ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCANopen; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CANopen Up to 1 Mbps
J1939 Connector 3way SuperSeal 1.5
CANopen Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software
SW67438



HD67438-E7R

J1939 / CANopen - Converte ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCANopen; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CANopen Up to 1 Mbps
J1939 Connector 3way SuperSeal 1.5
CANopen Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67438



Ports 1xJ1939; 1xCANopen
Power Supply 12-24VDC; 12/24VAC 50/60Hz
Operating Temperatur -30° to +70° (-22°F to +158°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67150



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
