CANopen to DeviceNet
Part No.: MPADFW-CANopen-to-DeviceNet

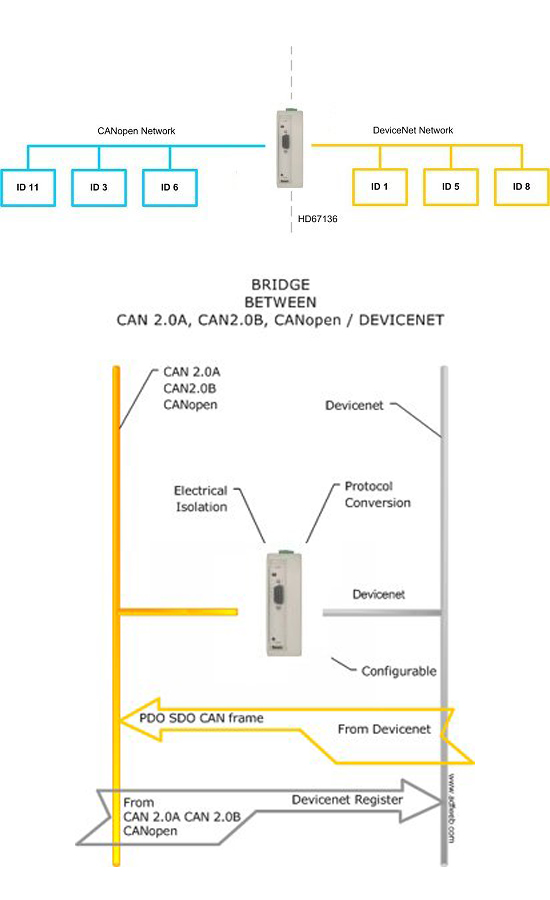

This series of products allows to integrate a DeviceNet network with a CANopen net.
產品介紹

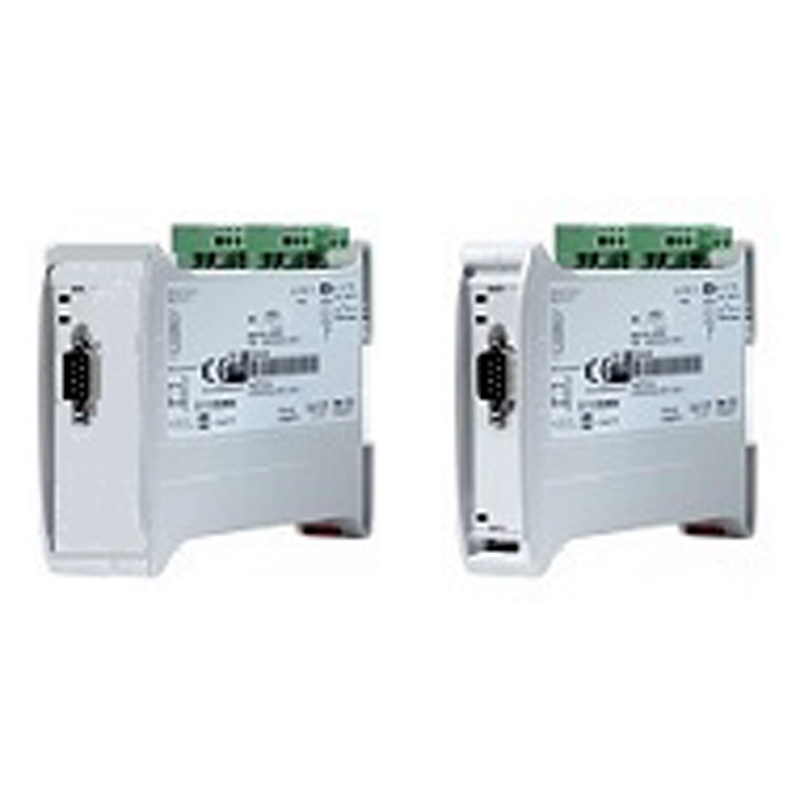

CANopen / DeviceNet - Converter
This series of products allows to integrate a DeviceNet network with a CANopen net.
The HD67134 is a DeviceNet Slave / CANopen Converter and it allows you to connect a DeviceNet net (for example an Allen-Bradley PLC..) with a CANopen network in order to exchange the informations between the networks.
The HD67153 is a CANopen/ DeviceNet Master Converter and it allows you to connect some DeviceNet slave with a CANopen network in order to exchange the informations between the networks.
They are available with differents connectors:
- HD67153-A1 - CANopen / DeviceNet Master (Terminal Blocks Connectors)
- HD67153-A3 - CANopen / DeviceNet Master (M12 Connectors)
- HD67153-A4 - CANopen / DeviceNet Master (Mini-Fit Connectors)
The HD67235 is a DeviceNet Slave / CAN Converter and it allows you to connect a DeviceNet net (for example an Allen-Bradley PLC...) with a CAN network in order to exchange the informations between the networks.
They are available with differents connectors:
- HD67235-A1 - DeviceNet Slave / CAN (Terminal Blocks Connectors)
- HD67235-A3 - DeviceNet Slave / CAN (M12 Connectors)
- HD67235-A4 - DeviceNet Slave / CAN (Mini-Fit Connectors)
Series DeviceNet from/to CANOpen
HD67134-A1
CANopen / DeviceNet Slave – Converter ( CANopen with SDO client, SDO server, PDO)
| Ports | 1xCANopen; 1xDeviceNet | |
|---|---|---|
| Data Rates CANOpen | Up to 1000 kbps | |
| Data Rates DeviceNet | Up to 500 bps | |
| Power Supply | 10...19V AC ; 10...35V DC | |
| Operating Temperature | -40°C/+85°C (-40°F/+185°F) | |
| Dimensions | 120x36x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67134 | |
Series CANopen from/to DeviceNet Master
HD67153-A1
CANopen / DeviceNet Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCANopen; 1xDeviceNet | |
|---|---|---|
| Data Rates CANopen | Up to 1000 kbps | |
| Connectors | Terminal block | |
| Data Rates DeviceNet | Up to 500k bps | |
| Power Supply | 8...19V AC; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
|
Weight
|
200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67153 | |
HD67153-A3
CANopen / DeviceNet Master - Converter ( Housing type: A, M12 Connectors )
| Ports | 1xCANopen; 1xDeviceNet | |
|---|---|---|
| Data Rates CANopen | Up to 1000 kbps | |
| Connectors | M12 | |
| Data Rates DeviceNet | Up to 500k bps | |
| Power Supply | 8...19V AC; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x36x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67153 | |
HD67153-A4
CANopen / DeviceNet Master - Converter ( Housing type: A, Mini-Fit Connectors )
| Ports | 1xCANopen; 1xDeviceNet | |
|---|---|---|
| Data Rates CANopen | Up to 1000 kbps | |
| Connectors | Mini-Fit | |
| Data Rates DeviceNet | Up to 500k bps | |
| Power Supply | 8...19V AC; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67153 | |
Series DeviceNet from/to CAN
HD67235-A1
DeviceNet Slave / CAN - Coverter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 1xDeviceNet | |
|---|---|---|
| Connectors | Terminal Blocks | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates DeviceNet | Up to 500 bps | |
| Number of Input Bytes | Up to 455 | |
| Number of Output Bytes | Up to 455 | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67235 | |
HD67235-A3
DeviceNet Slave / CAN - Coverter ( Housing type: A, M12 Connectors )
| Ports | 1xCAN; 1xDeviceNet | |
|---|---|---|
| Connectors | M12 | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates DeviceNet | Up to 500 bps | |
| Number of Input Bytes | Up to 455 | |
| Number of Output Bytes | Up to 455 | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x36x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67235 | |
HD67235-A4
DeviceNet Slave / CAN - Coverter ( Housing type: A, Mini-Fit Connectors )
| Ports | 1xCAN; 1xDeviceNet | |
|---|---|---|
| Connectors | Mini-Fit | |
| Data Rates CAN | Up to 1000 kbps | |
| Data Rates DeviceNet | Up to 500 bps | |
| Number of Input Bytes | Up to 455 | |
| Number of Output Bytes | Up to 455 | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67235 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
