RS232 to CAN

Part No.: MPADFW-RS232-to-CAN
This series of products allows to integrate a CAN network with a RS232 or Ethernet or USB net.

產品介紹

Description

This series of products allows to integrate a CAN network ( CAN2.0A, CAN2.0B, CANopen, J1939, NMEA2000, DeviceNet ) with a RS232 or Ethernet or USB net.

The HD67290 is a CAN / RS232 Converter and it allows you to connect a CAN network with a RS232 network.

The HD67390-E-A1 is a CAN / Ethernet Converter and it allows you to connect a CAN network with an Ethernet network.

The HD67390-U-D1 is a CAN / USB Converter and it allows you to connect a CAN network with an USB network.

To configure the device use our free software, it is very easy.


HD67290

CAN / RS232 - Converter


Ports ​1 x CAN 2.0 ;1 x RS232 for Re-Program
CAN Baudrate Baud Rate From 10K up to 1M bps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply 8..19V AC ;8..35V DC
EMI Compliance EN 61000-6-2 ;FCC part 15 of Class A
Operating Temperature -40ºC / +85ºC (-40ºF/ +185ºF)
Dimensions 120x23x107(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67290

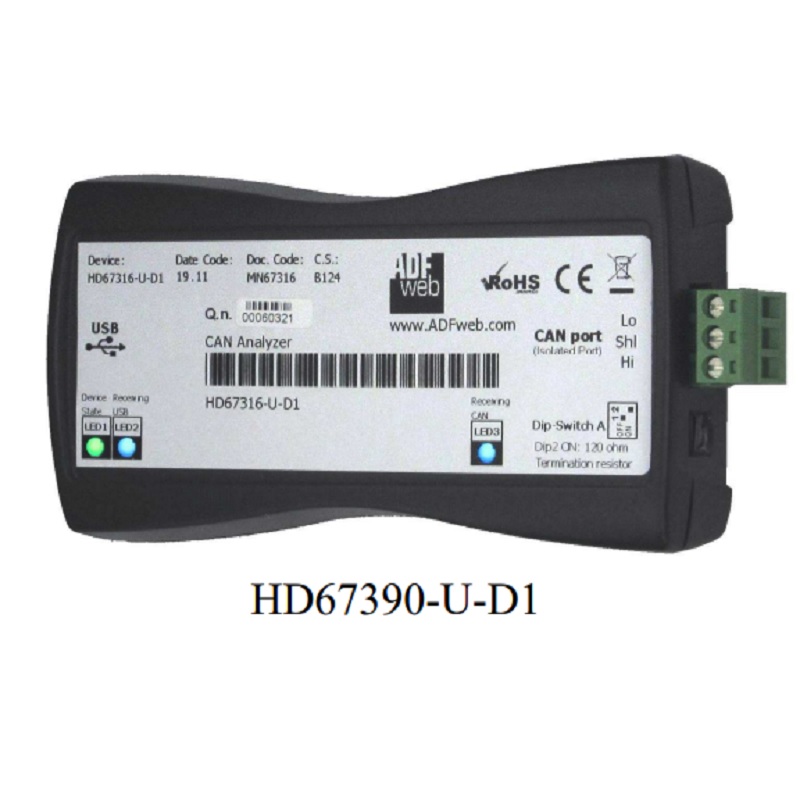

HD67390-U-D1

Gateway CAN from/to USB (Device Table)


Ports
1xCAN ;1xUSB
CAN Baudrate Baud Rate From 10K up to 1M bps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply
8..19V AC;8..35V DC
EMI Compliance
EN 61000-6-2;FCC part 15 of Class A
Operating Temperature ​-40ºC /+85ºC (-40ºF/ +185ºF)
Dimensions 119x27x65(DxWxH)
Weight 200g approx
Mechanical Fixing Device table



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator

  • Designed for serius use

  • Very easy to configure

  • Low cost

  • Rail din mountable

  • Wide supply input range

  • Galvanic isolation

  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
