RS232-422-485 to IEC 61850

Part No.: MPADFW-RS232-422-485-to-IEC-61850
This series of products allows to integrate some IEC61850 devices into a Serial network.

產品介紹

IEC 61850 / Serial - Converter

This series of products allows to integrate some IEC61850 devices into a Serial network.

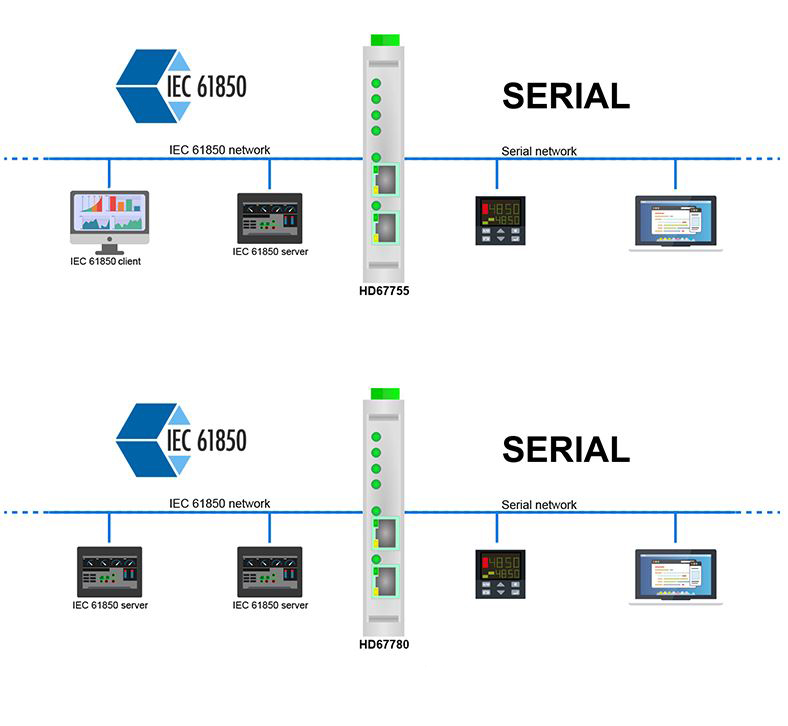

The HD67755-A1 is an IEC 61850 Server / Serial Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) and interface this by Serial in order to exchange informations between the nets.

The HD67780-A1 is an IEC 61850 Client / Ethernet Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) and interface this by Serial in order to exchange informations between the networks.



IEC 61850 Server / Serial



HD67755-2-A1

IEC 61850 Server / Serial (RS232) - Converter ( Housing type: A, Terminal Blocks Connectors )


Ports 2xEthernet; 1xRS232
Serial Serial RS232
IEC 61850 Protocol IEC 61850 Server
Data Rates Serial Up to 115200 bps
Data Rates IEC 61850 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67755



HD67755-5-A1

IEC 61850 Server / Serial (RS485) - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 2xEthernet; 1xRS485
Serial Serial RS485
IEC 61850 Protocol IEC 61850 Server
Data Rates Serial Up to 115200 bps
Data Rates IEC 61850 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67755



IEC 61850 Client / Serial



HD67780-2-A1

IEC 61850 Client / Serial (RS232) - Converter ( Housing type: A, Terminal Blocks Connectors )


Ports 2xEthernet; 1xRS232
Serial Serial RS232
IEC 61850 Protocol IEC 61850 Client
Data Rates Serial Up to 115200 bps
Data Rates IEC 61850 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67780



HD67780-5-A1

IEC 61850 Client / Serial (RS485) - Converter ( Housing type: A, Terminal Blocks Connectors )


Ports 2xEthernet; 1xRS485
Serial Serial RS485
IEC 61850 Protocol IEC 61850 Client
Data Rates Serial Up to 115200 bps
Data Rates IEC 61850 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67780



Accessories



Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
