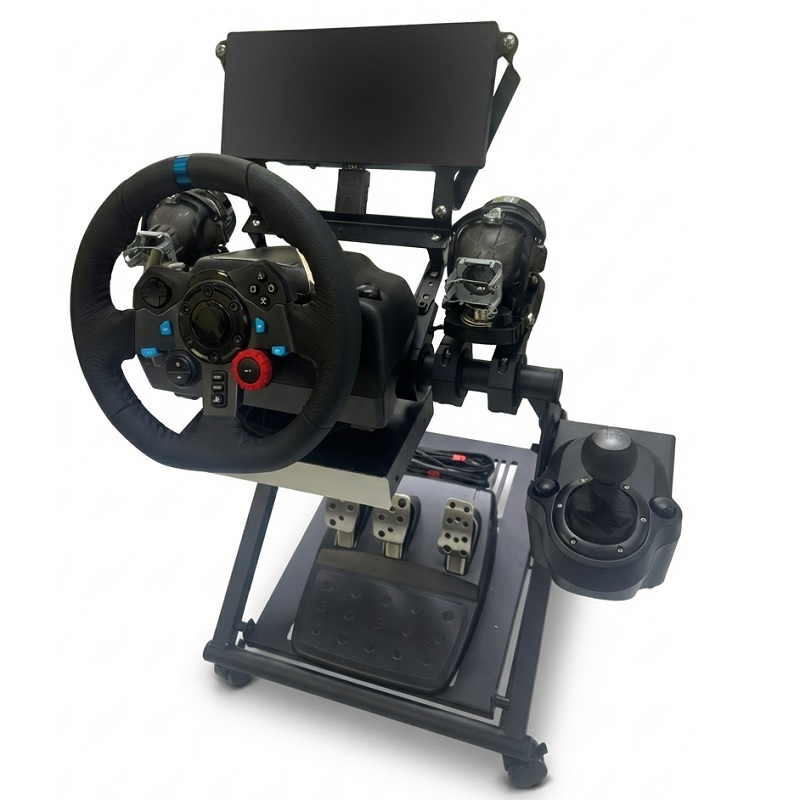

DriveSim-100 (Plus)

Part No.: MP-DriveSim100-Plus
The DriveSim-100 enables real-time control of the Instrument Cluster and Adaptive Front-Lighting System (AFS), allowing users to monitor actual CAN Bus communication data during driving simulations.

This system helps users gain a thorough understanding of CAN Bus communication architectures and message patterns, enhancing familiarity with in-vehicle communication systems. With its scalable design, the DriveSim-100 is suitable for testing, development, and educational applications, providing a practical and research-oriented simulation platform.

Product Description

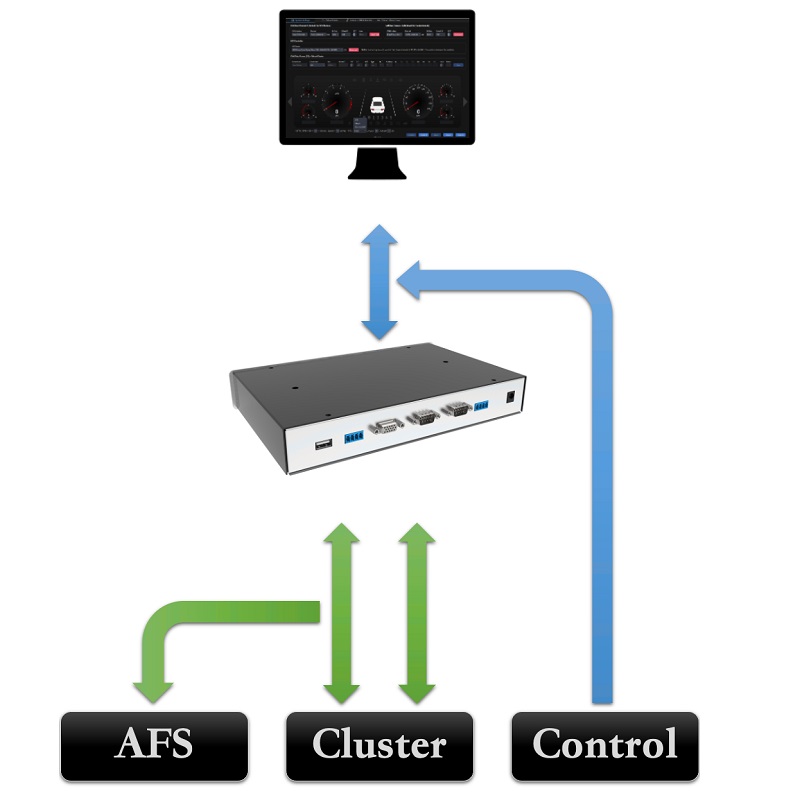

System / Hardware

Modules and Devices:
  • Cluster Module (or Ford Mustang Instrument Cluster)
  • Adaptive Front-Lighting System (AFS) Module
  • Steering Wheel Controller (Logitech or PXN)
  • CAN Bus Communication and Control Unit
  1. Dual-Channel CAN 2.0 A/B (CiA 303-1 DB9)
  2. USB 2.0-to-CAN Interface
  3. Cluster Control Module
  4. AFS Control Module
  5. 12VDC / 5A Power Supply

Software (GUI)

Device Controller

  • CAN control and configuration (independently configurable per channel)
  1. Real/Virtual Interface
  2. Frame Format (Standard 11-Bit / Extended 29-Bit)
  3. Bit Rate (125 ~ 1000 kbps)

Data Frame Editor

  • Editable parameters: includes 22 physical inputs and 26 virtual inputs
  • High flexibility: allows detailed customization of CAN Data Frame content
  • Controller input mapping functionality

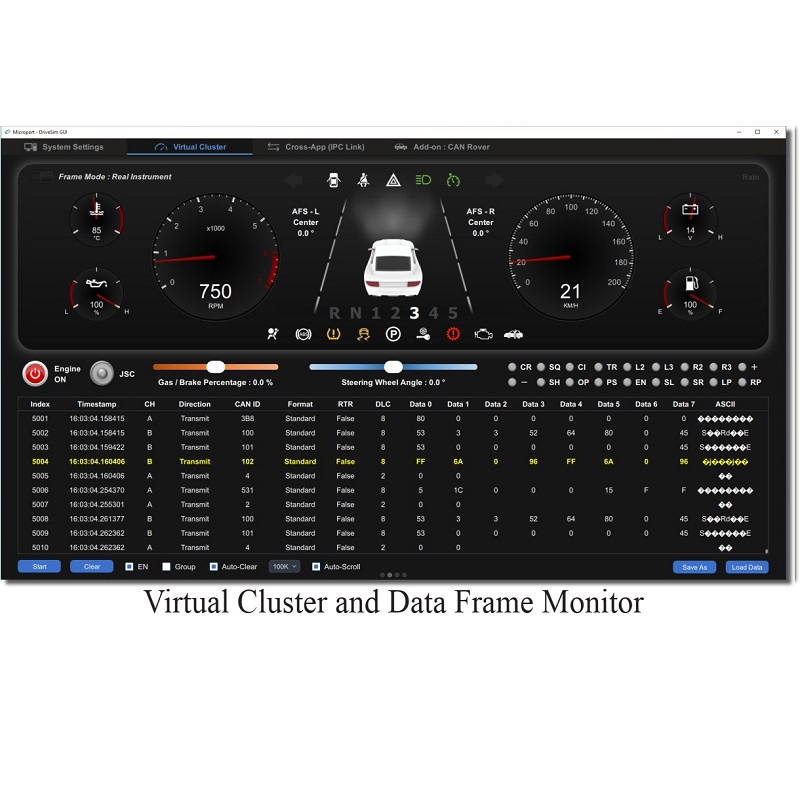

Virtual Cluster

  • Control modes: supports both physical controller input and fully virtual control
  • Real-time display: visualizes data for 6 gauges and 21 indicators
  • Interactive adjustment: allows values to be modified via drag-and-drop, with real-time synchronization to the Cluster
  • AFS Simulation Capabilities:
  1. Supports Class V/C/E/W modes (ECE324-R123)
  2. Real-time monitoring: displays headlamp status and inward/outward swivel angles
  3. Weather simulation: switchable dry/wet conditions (specifically for Class W)
  • Physics simulation: configurable road resistance parameters for RPM/speed attenuation

Data Frame Monitor

  • Real-time display: includes ID, FF, DIR, RTR, DLC, DAT (Hex) and DAT (ASCII)
  • Section view: data inspection grouped by CAN ID
  • Data logger: supports CSV import/export

Add-ons (Optional)

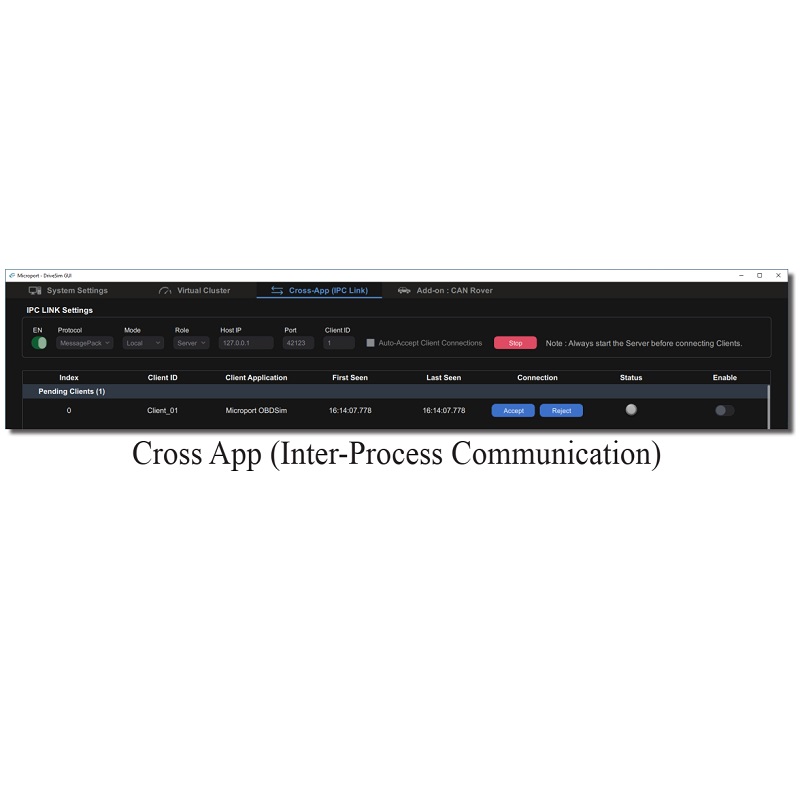

  • ZMQ-based inter-process communication (for co-simulation with other systems)
  • Control functionality for CanEduDev CAN Rover
