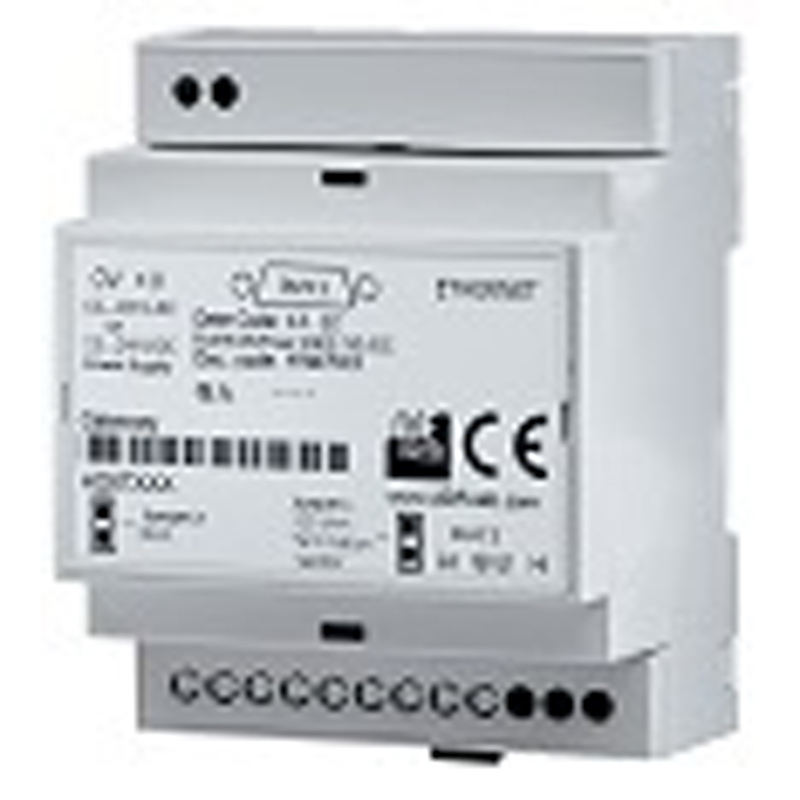

WiFi to CAN
Part No.: MPADFW-WiFi-to-CAN
This series of products allows to integrate a CAN network with a WiFi net.
Product Description
CAN / WiFi - Converter
This series of products allows to integrate a CAN network with a WiFi net.

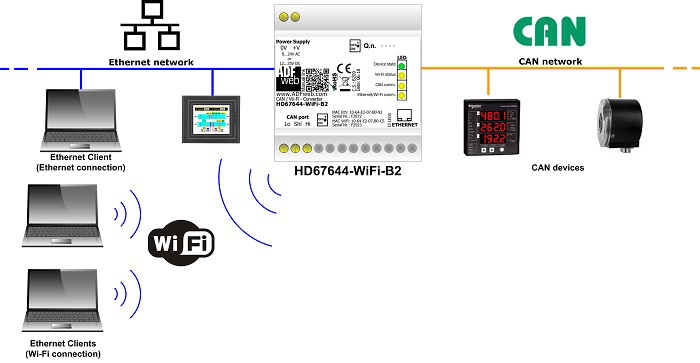

The HD67644-WiFi is a CAN / WiFi Converter and it allows you to connect some CAN devices with a WiFi net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.
The order code is HD67644-WiFi-B2.
HD67644-WiFi-B2
CAN / WiFi - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xWi-Fi; 1xCAN;1xEthernet | |
|---|---|---|
| Data Rates CAN | Up to 1 Mbps | |
| Data Rates Wi-Fi | 802.11b/g standard | |
| CAN Connector | 3way 5mm terminal block | |
| Wi-Fi Connector | Integrated connector | |
| CAN Protocol | CAN 2.0A and CAN 2.0B | |
| Wi-Fi Protocol | TCP or UDP | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
|
Weight
|
200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67644 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
