PROFIBUS to Modbus TCP
Part No.: MPADFW-PROFIBUS-to-Modbus-TCP
This series of products allows to integrate a PROFIBUS network with Ethernet net.
Product Description

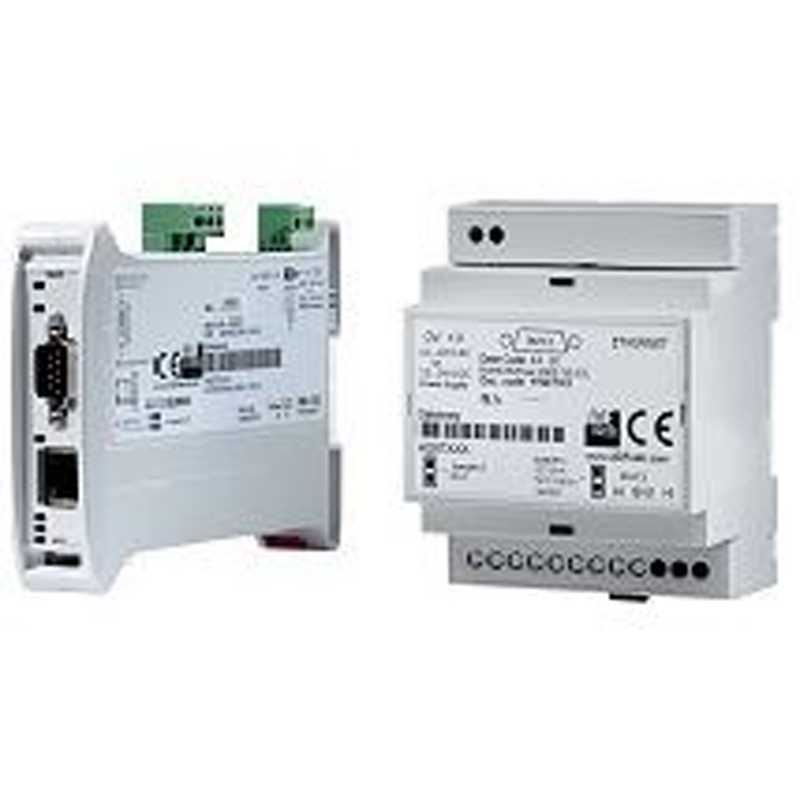

PROFIBUS / Ethernet - Converter
PROFIBUS / Modbus TCP - Converter
This series of products allows to integrate a PROFIBUS network with Ethernet net. On Ethernet side, it is possible to use Modbus TCP protocol or generic Ethernet communication.
The HD67563 is a PROFIBUS Slave / Ethernet Converter and it allows you to connect a PROFIBUS Master net with an Ethernet net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.
The HD67575 is a PROFIBUS Master / Ethernet Converter and it allows you to connect some PROFIBUS devices with an Ethernet net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.
The HD67576-A1 coupled to the device HD67575-A1 is used to extend a line PROFIBUS through Ethernet.
The HD67564 is a PROFIBUS Slave / Modbus TCP Master Converter and it allows you to connect a PROFIBUS Master net with some Modbus TCP slaves.
The HD67565 is a PROFIBUS Slave / Modbus TCP Slave Converter and it allows you to connect a PROFIBUS Master net with a Mobus TCP Master net (for example a PLC, SCADA System...) in order to exchange the informations between the networks.
The HD67579 is a PROFIBUS Master / Modbus TCP Slave Converter and it allows you to connect some PROFIBUS devices with a Modbus TCP Master net (for example a PLC, SCADA System...) in order to exchange the informations between the networks.
Series PROFIBUS from/to Ethernet
HD67563-A1
PROFIBUS Slave / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Up to 12 Mbps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Protocol | PROFIBUS DP V0 | |
| Ethernet Protocol | TCP or UDP | |
| PROFIBUS Connector | D-Sub9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67563 | |
HD67563M
PROFIBUS Slave / Ethernet - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Ethernet Protocol | TCP or UDP | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67563 | |
HD67575-A1
PROFIBUS Master / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| Ethernet Protocol | TCP or UDP | |
| PROFIBUS Connector | D-SUB9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8...24V AC ; 12...35V DC | |
|
Operating Temperature
|
-40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Software | SW67575 | |
HD67576-A1
PROFIBUS slave / Ethernet - Converter ( Modality of exchange of the PROFIBUS frame: Transparent Tunnelling )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| Ethernet Protocol | TCP or UDP | |
| PROFIBUS Connector | D-SUB9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC ; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Software | SW67576 | |
Series PROFIBUS from/to Modbus TCP
HD67564-A1
PROFIBUS Slave / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Up to 12 Mbps | |
| Data Rates Ethernet | 10/100 Mbps Autosensing | |
| PROFIBUS Connector | D-Sub9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67564 | |
HD67564M
PROFIBUS Slave / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Modbus | 10/100 Mbps Autosensing | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67564 | |
HD67565-A1
PROFIBUS Slave / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Up to 12 Mbps | |
| Data Rates Ethernet | 10/100 Mbps Autosensing | |
| Ethernet Connector | RJ45 | |
| PROFIBUS Connector | D-Sub9 Female | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67565 | |
HD67565M
PROFIBUS Slave / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Ethernet | 10/100 Mbps Autosensing | |
| Ethernet Connector | RJ45 | |
| PROFIBUS Connector | D-Sub9 Female | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67565 | |
HD67579-A1
PROFIBUS Master / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xEthernet; 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Up to 6Mbps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply Connector | 2way 5mm removable screw terminal | |
| Power Supply | 8..24V AC ; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67579 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Galvanic isolation
- Industrial temperature range: -30°C / 70°C (-22°F / 158°F)
