SuperPro 7500N

Part No.: MPXT-SuperPro7500N
Universal IC Programmer

Product Description

Description

  • Advanced Universal LAN Programmer - 144 Pin Driver
  • Algorithms engineered to program up to 4 chips simultaneously
  • Supports most device memories on the market
  • Programs eMMC devices up to 64 GB
  • Supports most package types including WLCSP
  • Operates in PC hosted, stand-alone, and LAN modes
  • Customized device algorithm development available
  • Socket adapters are sold separately.
  • Trusted by Data Recovery Labs Worldwide

Meet the new standard in universal IC programming. The SuperPro 7500N is a high-performance, stand-alone universal programmer engineered for flexibility, speed, and production efficiency.

Its ultra-powerful system engine lets you program a single device or up to four devices simultaneously. By inserting a compatible 4-socket adapter, the SuperPro 7500N becomes a true 4Gang programmer—delivering gang-programming productivity without the cost of a separate gang system.

The SuperPro 7500N is also the proven programming platform used inside our SuperBOT IC programming system lineup—this same SP7500N programmer powers the SuperBOT, helping ensure consistent device support, accuracy, and repeatable results across both manual and automated workflows.

Beyond production, the SuperPro 7500N is an excellent solution for data recovery and hard drive repair applications thanks to robust support for eMMC and NAND flash devices. It is well suited for data recovery labs, repair centers, and forensic teams working with embedded memory.

The SuperPro 7500N can perform a hard copy of NAND flash devices, allowing quick duplication for recovery workflows. It can also read a wide range of memory devices, making it a reliable tool for obtaining master data.

This modular approach delivers professional gang programming performance while saving thousands in equipment costs—ideal for engineering, service, data recovery, and production environments.

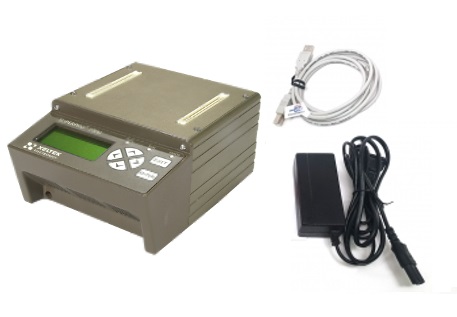

What's in the Box

  • AC Adapter
  • USB Cable
  • Quick Start Guide

*The Taiwan quotation does not include an SD Card. If an SD Card is required, it must be purchased separately.

*Socket adapters sold separately.

DIP Socket Adapter: GX0001 (SuperPro 7500/N and SuperPro 7504/N)


Key Features

Project File Management

Save and restore complete programming setups, including device type, buffer data, configuration bits, operation settings, and batch commands. Password protection ensures secure and consistent operation.


Automated Production Sequencing

Automatically executes erase, blank check, program, verify, and protect in a seamless sequence — ensuring repeatable, error-free processing.


Production Mode

Instant start upon device insertion with automatic chip detection and batch execution — maximizing throughput and efficiency.


Factory Mode

Designed for high-volume manufacturing. Enforces Auto operation with administrator password control to prevent errors and unauthorized changes.


Traceability & Production Logging

Comprehensive log files support quality control, traceability, and process tracking.


Automatic File Recognition

Supports and auto-detects major industry formats including Binary, Intel Hex linear/segmented, Motorola S, Tektronix, JEDEC, POF, and more.


Auto Serial Number Generation

Built-in auto-increment function programs unique electronic serial numbers for secure device identification.


Intellectual Property Protection

Password security available in both PC and stand-alone modes to safeguard data and process integrity.


Specifications


Hardware and Electrical Specifications

  • Devices supported
    • EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU
  • Package types supported
    • DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, µBGA, CSP, SCSP, QFN, HVQFN, etc.
  • PC interface
    • USB 2.0, LAN. Windows: XP / Vista / 7 / 8 / 9 / 10 / 11 | 32/64-bit
  • Stand-alone memory
    • SD Card
  • Power supply
    • AC Adapter: Input AC 100V–240V; Output: 12V / 1.5A
  • Dimensions
    • Main unit: 184(L) × 160(W) × 78(H) mm
    • Package: 310(L) × 250(W) × 145(H) mm
  • Weight
    • Main unit: 1.80 lbs (0.80 kg)
    • Package: 3.80 lbs (1.65 kg)

Expanded Features

  • 144-pin universal pin-driver architecture delivers broad device coverage with stable, production-grade signal integrity.
  • Wide device and memory support for standard NOR / NAND Flash devices and serial EEPROM / Flash — ideal for R&D, service, and production environments.
  • True 4-gang capability (device-dependent): program up to four devices simultaneously using a compatible 4-socket adapter to increase throughput without adding extra programmers.
  • Extensive device library with 145,000+ supported devices in the SuperPro 7500N database, with ongoing updates for new devices.
  • Powerful NAND Flash platform library with proven solutions for common NAND platforms and challenging cases; customization available for unique requirements.
  • Universal adapter ecosystem supports a wide range of package types, enabling fast changeovers and flexible production setups.
  • 9th-generation pin-driver technology provides cleaner signals, wider voltage range, higher accuracy, and higher clock frequencies — supporting devices with Vcc from 1.2V to 5.0V.
  • Built-in chip security protection with voltage self-correction to keep programming voltage within a preset range for improved reliability and yield.
  • Over-current & over-voltage protection safeguards both the target device and programmer hardware during operation.
  • Production-focused software workflow streamlines operations, reduces user error, and improves consistency across operators and shifts.
  • Fast technical support & new device support to keep production moving and ensure long-term coverage for evolving components.
  • Ideal for production + data recovery workflows: robust support for NAND and eMMC makes it a strong fit for repair labs, service centers, and forensic applications.

Note:

1. Prices and specifications are subject to change without notice.
2. EOL products will not be notified separately.
3. Product images are for reference only. Actual products may vary depending on the version or specifications.
4. Product information, specifications, and availability are subject to confirmation at the time of order.
