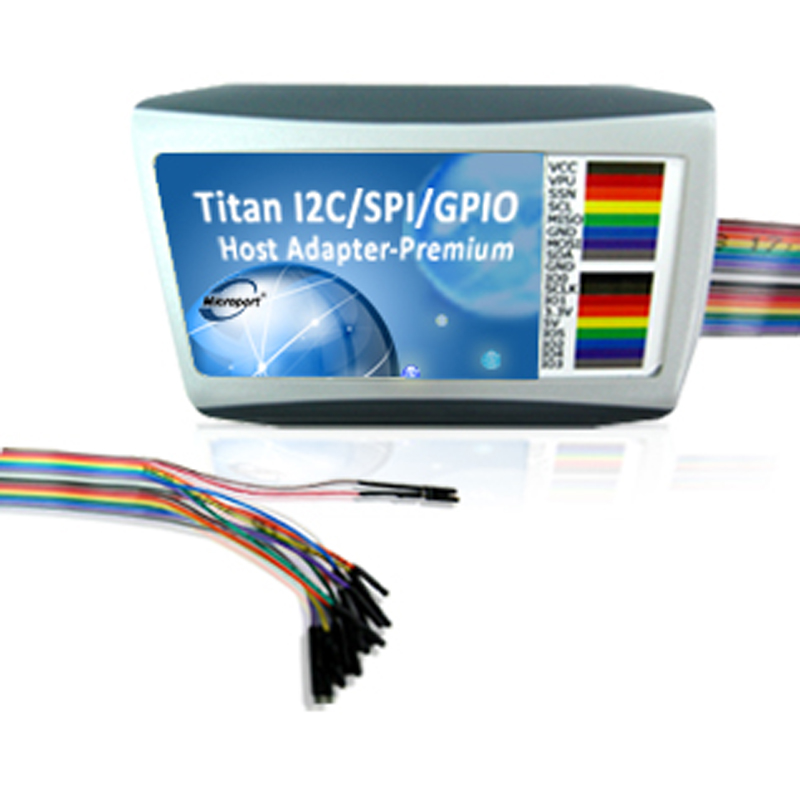

Titan I2C/ SPI/ GPIO Host Adapter Premium

Part No.: MPI2CT-I2C/SPI/GPIO-Premium
It uses a 60MHz ARM7 processor for unrivaled high performance.

Product Description

Titan I2C/SPI/GPIO Host Adapter Premium has a similar user interface as the Advanced version.

It uses a 60MHz ARM7 processor for unrivaled high performance.

The I2C/SPI/GPIO Host Adapter family of products are the most complete USB-based I2C and SPI development tools available on the market.


Features


Overview

The I2C/SPI/GPIO Host Adapter Premium software has the capability to program I2C and SPI serial EEPROMs, RAM, and FRAM from 16 bytes (128 bit) to 512k bits (64k bytes). Universal modes provide the flexibility to communicate with any I2C slave device.

The hardware is capable of transmitting I2C up to 1 Mb/s (note the I2C specification limits the speed to 400 kb/s) and SPI up to 15Mb/s. There are 3.3V and 5V switchable power outputs on the hardware allowing you to supply low-power target systems.

What is included in I2C/SPI/GPIO Host Adaptor...

  • 18-pin split cable

  • USB DLL allowing you to create your own I2C and SPI applications

  • DLL examples for Visual C++, Visual C++ .Net, Visual C#, Visual Basic, Visual Basic .Net, Delphi, and C++ Builder

Specifications

  • SPI/GPIO Host Adapter Premium Windows application includes universal I2C support and a custom interface for the following popular I2C devices:

EEPROMS

  • 128-bit (16 Bytes) up to 512K bits (64kB)

Universal I2C Interfaces

  • Expert Mode - a highly configurable user interface

  • User Definable - a useful generic interface with slider and spin controls

Thermal Management

  • LM75A Digital Temperature Sensor and Thermal Watchdog

  • NE1617 and NE1617A Temperature Monitors

  • SA56004 Remote and Local Temperature Sensor

  • SE98 SO-DIMM SMBus/I2C-bus temperature sensor

I2C Mux/Switch

  • PCA9541 I2C Master Selector

  • PCA9540B Two-channel I2C Multiplexer

  • PCA9542A Two-channel I2C Multiplexer with Interrupt

  • PCA9543A Two-channel I2C Switch with Interrupt and Reset

  • PCA9544A Four-channel I2C Multiplexer with Interrupt

  • PCA9545A Four-channel I2C Switch with Interrupt and Reset

  • PCA9546A Four-channel I2C Switch with Reset

  • PCA9547 Eight-channel Switch

  • PCA9548 Eight-channel I2C Switch with Reset

  • PCA9549 Octal Bus Switch

LED Blinkers/Dimmers

  • PCA9530 2-bit I2C LED Dimmer

  • PCA9531 8-bit I2C LED Dimmer

  • PCA9532 16-bit I2C LED Dimmer

  • PCA9533 4-bit I2C LED Dimmer

  • PCA9550 2-bit I2C LED Blinker

  • PCA9551 8-bit I2C LED Blinker

  • PCA9552 16-bit I2C LED Blinker

  • PCA9553 4-bit I2C LED Blinker

  • SAA1064 4-digit I2C LED Driver

Real-time Clocks

  • PCF8563 Real-time Clock/Calendar

IO Expanders

  • PCA9534 8-bit I2C I/O Expander with Interrupt

  • PCA9535 16-bit I2C I/O Expander with Interrupt

  • PCA9536 4-bit I2C I/O Expander

  • PCA9537 4-bit I2C I/O Expander with Interrupt and Reset

  • PCA9538 8-bit I2C I/O Expander with Interrupt and Reset

  • PCA9539 16-bit I2C I/O Expander with Interrupt and Reset

  • PCA9554 8-bit I2C I/O Expander with Interrupt

  • PCA9554A 8-bit I2C I/O Expander with Interrupt

  • PCA9555 16-bit I2C I/O Expander with Interrupt

  • PCA9556 8-bit I2C I/O Expander with Reset

  • PCA9557 8-bit I2C I/O Expander with Reset

  • PCA9559 5-bit I2C EEPROM DIP Switch

  • PCA9698 40-bit I2C I/O Expander with Interrupt and Reset

  • PCA9560 Dual 5-bit Multiplexed 1-bit Latched I2C EEPROM DIP Switch

  • PCA9561 Quad 6-bit Multiplexed I2C EEPROM DIP Switch

  • PCF8574 8-bit I/O Expander

  • PCF8574A 8-bit I2C I/O Expander

  • PCF8575 16-bit I2C I/O Expander

  • PCA8550 5-bit I2C EEPROM DIP Switch

  • PCA9500 8-bit I2C I/O Port with Interrupt and 2K EEPROM

  • PCA9501 8-bit I2C I/O Port with Interrupt and 2K EEPROM
