Demo Rover

Part No.: MP-Demo-Rover
It features a high-performance engine, ESC, and steering servo, ensuring a reliable and flexible exhibition tool.

Product Description

Description

The Demo Rover is the perfect base for your product exhibition. Its main features include a complete CAN system integrated into a robust aluminum chassis designed for durability and flexibility. The Rover is driven by an Electronic Speed Controller (ESC) controlling a high-performance engine, and has a powerful steering servo for controlling the wheels. These key components combine to deliver a reliable and versatile tool for showcasing various CAN or automotive products in a creative, eye-catching manner.

Ideal for those who want to showcase new products, the CAN Rover provides a flexible platform for innovation. This versatile product lays the groundwork for your ambitious projects. Included in this package is a complete CAN system, a chassis, an engine, an Electronic Speed Controller (ESC) and a steering servo.

The CAN system consists of two control modules based on the STM32F3 MCU coupled with 4 D-SUB interfaces. Besides CAN communication, the modules provide a PWM interface for controlling hobby servos and ESCs, a sensor input, SPI and I2C interfaces, and built-in voltage and current measurement capabilities.

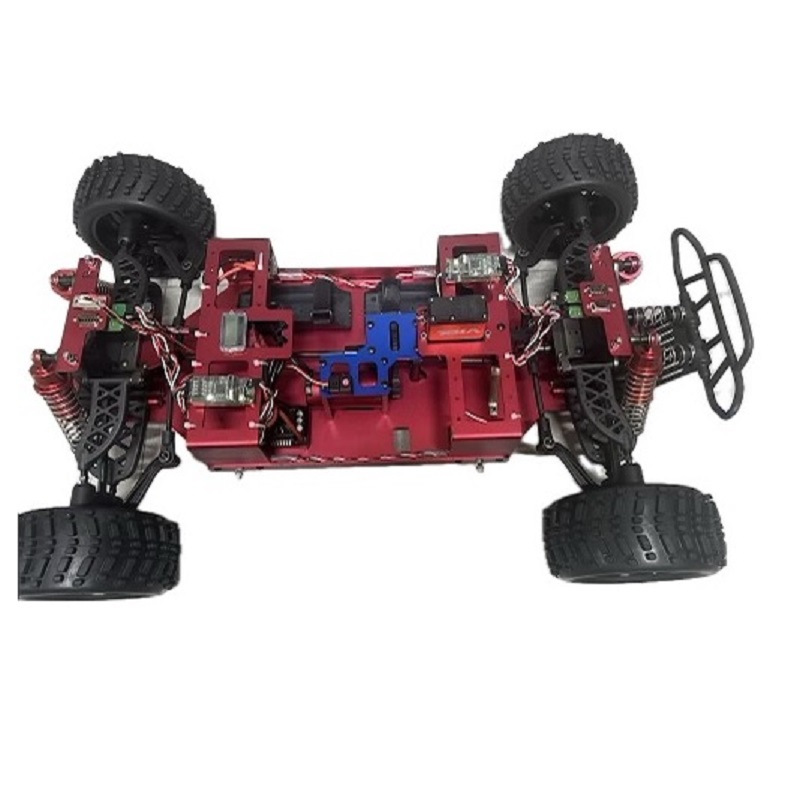

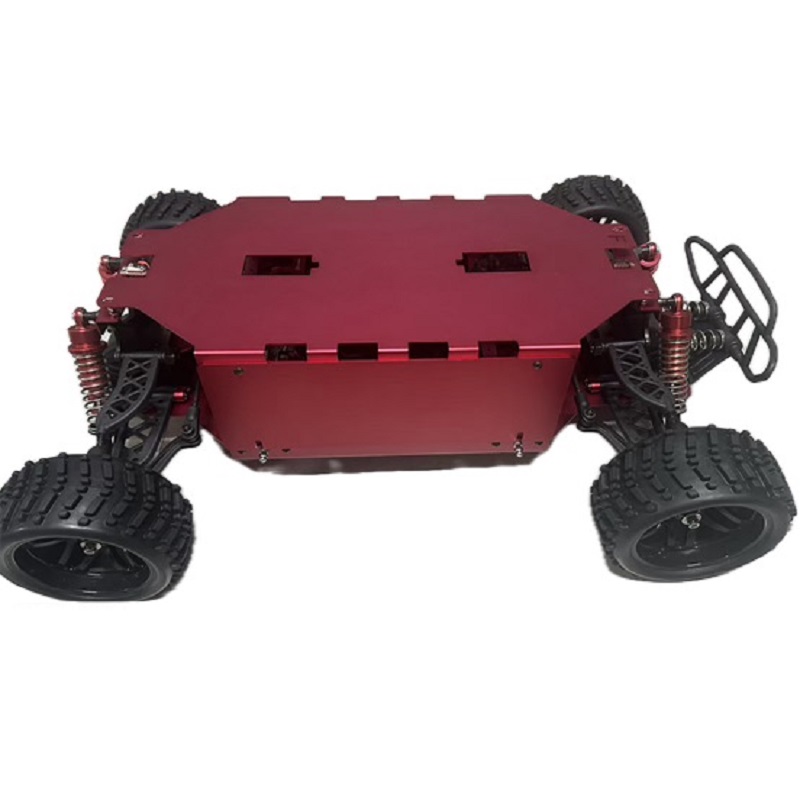

The chassis is what makes the Rover unique. It’s a durable, adaptable structure designed to accommodate various components and withstand rigorous testing. Made with high-quality materials, it’s ideal for customization, allowing easy integration of additional elements like sensors or actuators. This platform is the perfect starting point for integrating additional hardware and trying it out.

The engine of the Rover is a robust, high-performance brushless DC motor. With an operational voltage range of 7.4-50 V and a maximum power of 3000 W, it provides strong, consistent propulsion to the Rover. Its high-efficiency rate (92%) and capacity to operate under high temperature (up to 130 °C) ensure reliable performance in various conditions.

The ESC in the CAN Rover manages the energy flow from the battery to the brushless DC motor. It can handle a continuous current of 120A and peaks up to 650A, providing precise control over the Rover’s speed. Compatible with both sensored and sensorless brushless motors, the ESC ensures efficient and smooth operation of the Rover under various conditions.



Technical Specifications


Additional information
Wheelbase 567mm
Track width 435mm
Wheel diameter
160mm
Camber
Intermediate gear
48/12 = 4
Final gear
44/16 = 2.75
Engine
Model
D43L86-400
Rotor type
6 Pole
RPM/V
400KV
Current @ 7.2V
1.5A
Operational voltage
7.4-50V
Max power
3000W
Max current
70A
Max efficiency
92%
Working temperature limit
130℃
Dimensions
L86 x D43.2 mm
Extension shaft
L18 x D5.0 mm
Connector 4.0 mm golden plug
Extension wire length 80 mm
Electronic Speed Controller (ESC)
Model
Performa Racing PA9346
Input
2–4S LiPo battery
Continuous current
120 A
Peak current
650 A
BEC output (switch mode)
6V or 7.4V,4A
Dimensions
48 x 35 x 35 mm
Supported motors
Sensored & sensorless brushless
Weight
121 g
Modes
Brake, Forward, Reverse
