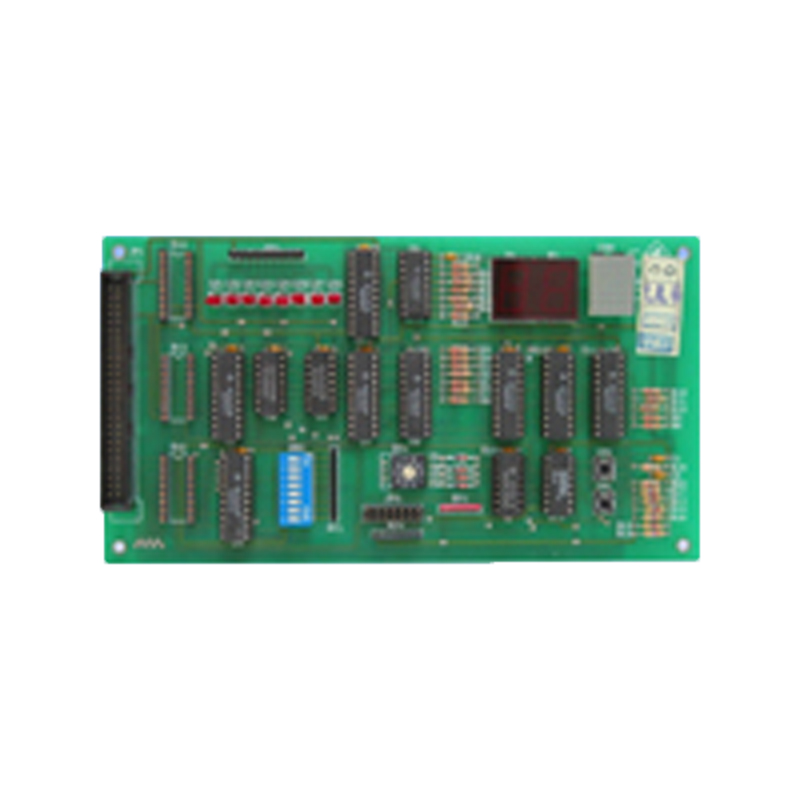

EDS-8806 Basic I/O Experiment Board

Part No.: MP-Micro-8088-EDS-8806

Product Description

硬 體 規 格

  1. 50-Pin PCI Connector
  2. LEDs
  3. 7-Seg LED
  4. Thumb-wheel switch
  5. 8p dip-switch
  6. Tact switch
  7. Signal-Pin bus
  8. Jumper for signal selection

Research Guide: (optional)

11 Application Programs included

  Experiment Name File Name Source
1 Racing light BAS1-1.ASM
Experiment
Guide I
2 DIP switch BAS2-1.ASM
3
Display 0-9 to 7-Segment LED
BAS3-1.ASM
4
5*7 dot matrix LED module
BAS4-1.ASM
5 Thumbwheel switch
BAS5-1.ASM
BAS5-2.ASM
6 Key counter (I) BAS6-1.ASM
7 KEY counter (II) BAS7-1.ASM
8
The handshank reading of
thumbw-heel switch
BAS8-1.ASM
BAS8-2.ASM
9
The handshank display of
7-Seg LED
BAS9-1.ASM
10
Bidirectional handshanking data
read/write
BASA-1.ASM
BASA-2.ASM
11
The hardware Program of
8254/8259
BAB1-1.ASM
