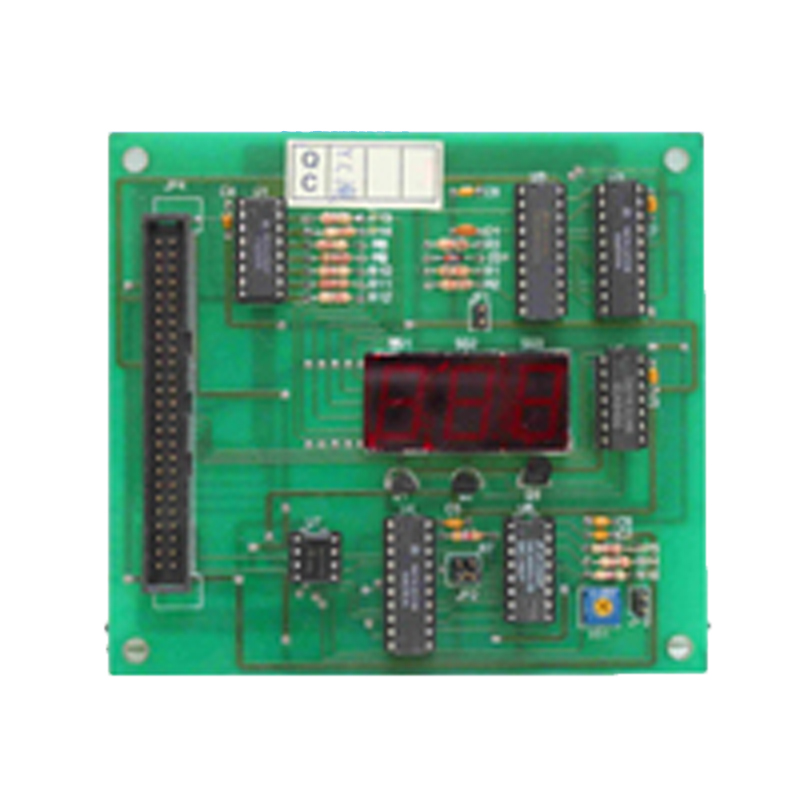

EDS-8804 AD/DA

Part No.: MP-Micro-8088-EDS-8804-AD/DA

Product Description

Hardware

  1. 50-Pin PCI Connector

  2. ADC0804

  3. DAC08

  4. Input Port

  5. Output Port

  6. Jumper for AD or DA selection

Research Guide: (optional)

5 Application Programs included

  Experiment Name File Name Source
1 A/D voltmeter AD1-1.ASM
Experiment
Guide I
2 Digital voltmeter AD2-1.ASM
3 Generating sawtooth waveforms DA1-1.ASM
4 Generating Stair-case waveforms DA2-1.ASM
5 Voltage supplier DA3-1.ASM
