Industrial RTLS Applications

Part No.: MPCY-UWB-IPS
This is designed to precisely locate personnel, materials, equipment, and vehicles, making it easier to support a wide range of applications.

Product Description

Overview:

Industrial 4.0-UWB IPS is a precise real-time location system that locates mobile staff, objects, equipment and vehicles. It is suitable to track hundreds of objects simultaneously in a large-scale building.

Related Industry:

  • Logistic and warehousing management.  Real- time location to monitor workers or items in order to increase efficiency and cut down time waste.
  • The movement of precision equipment is closely monitored when transporting to a different location.
  • Working condition is ensured when the environment is highly monitored.
  • Restrict permission from entering highly secure areas.
  • The application for accuracy judgement in terms of  drones, robots and automatic warehousing.

Description



UWB Precision Indoor Position System

UWB precision indoor position system enables to locate workers, materials, cars, tags through base stations in a large-scale infrastructure. Information from variable tracked objects are received by background operators. It is easier for tracking workers, material query inventory, vehicle dispatch, mileage record and so on. Moreover, it has established on the basis of trajectory tracking, regional alarm, photographic device linkage. The UWB system is highly scalable with the ability to cover large area for simultaneously tracking hundreds of objects on the assembly line. Therefore, productivity and efficiency are greatly.


System Architecture



I : UWB IPS

II : UWB Active IPS



Specifications



System Model

Type-B(Advance):Precise indoor positioning for people and objects

Type-C(Advance):Precise indoor positioning for people and objects

Type-D(for projects): for robots, AGVs or other stand-alone devices that require position acquisition.

Type-E(for projects): Used for precise indoor positioning and collision avoidance between pedestrian and forklifts. In addition to precise positioning, the system also features collision avoidance for:

  • Pedestrian vs Forklifts
  • Forklifts vs Forklifts。

The processor of the device needs to be able to calculate the positioning algorithm, because the tag device on the target device will directly transmit the distance data to the target device.

Indoor positioning software support

Our indoor positioning system provides the following matching software, among which the positioning software of the standard version and the active version running on the Windows system are included in the kit as standard configuration.

In addition, running the positioning service in the Ubuntu system environment and the web version of the positioning system-package version are optional paid versions. If you are interested in these two types of software, please contact us.

1. Indoor Positioning System Kit - Windows Standard Version. For Secondary Development

  • C# project source code for Indoor Positioning System Softeware
  • C# dll for Indoor Positioning System
  • Communication protocol and packet format

2. Indoor Positioning System Kit - Windows Active Version. For Secondary Development

  • C# project source code for Indoor Positioning System Softeware
  • C# dll for Indoor Positioning System
  • Communication protocol and packet format

3. Indoor Positioning System Web - Ubuntu Service Version(optional)

  • Indoor positioning service running on ubuntu system
  • Provide APIs in the form of http
  • Standard version of indoor positioning web

4. Indoor Positioning System Web - Package Version(optional)

  • Create a positioning webpage based on Windows Server
  • Complete indoor positioning function

Development Kit

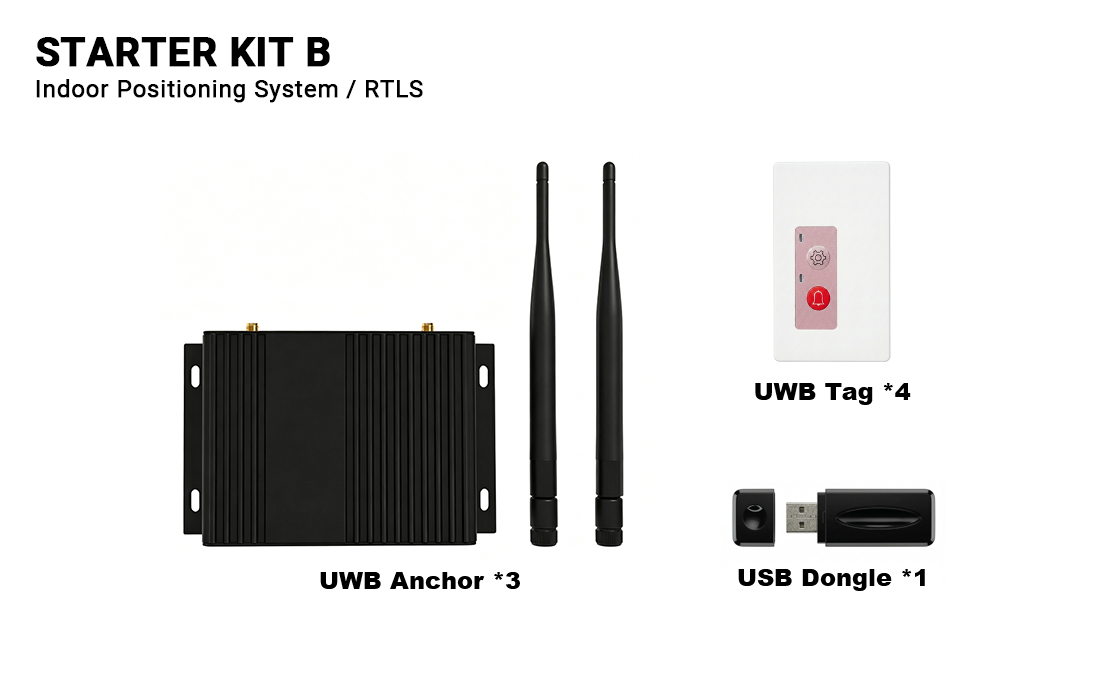

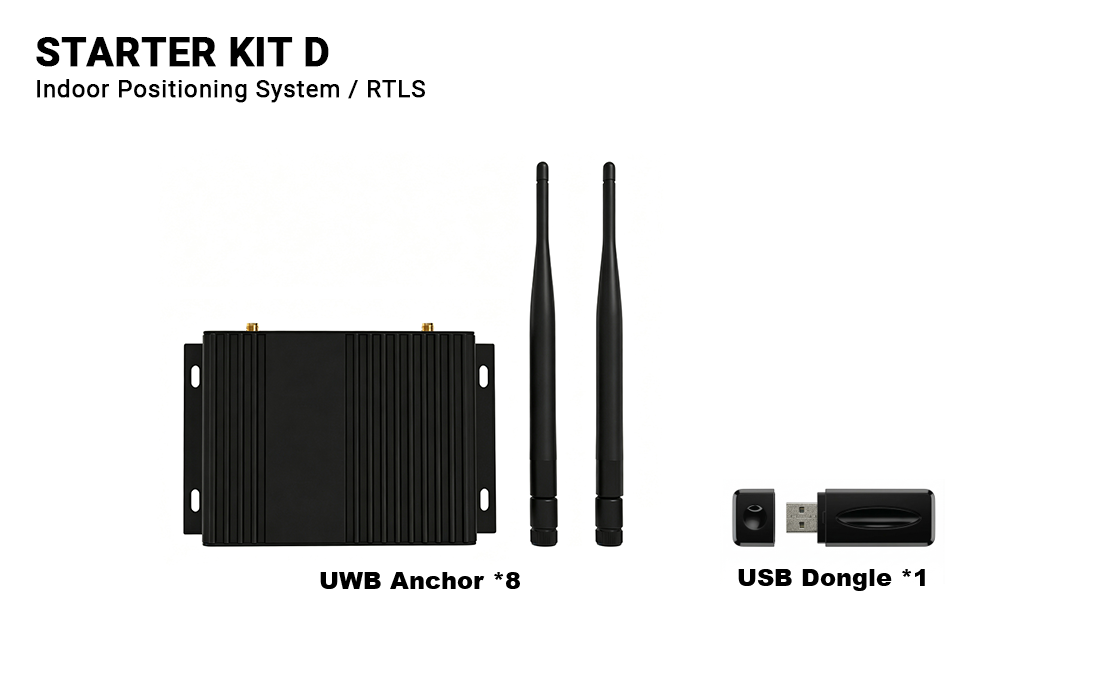

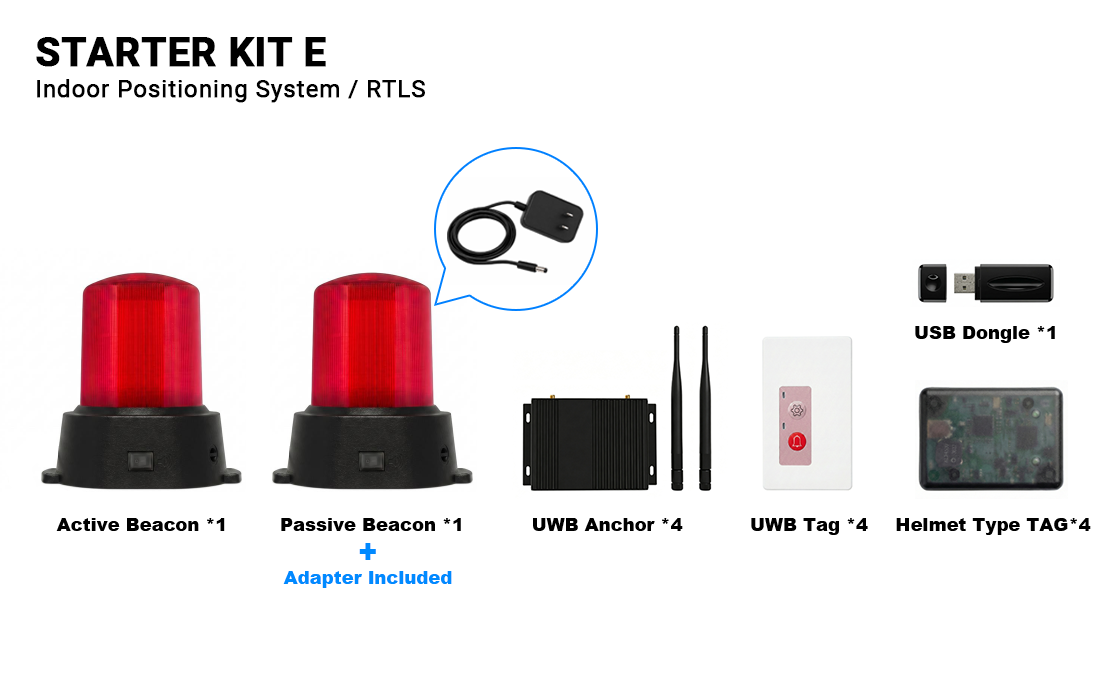

Model Starter Kit
B		 Starter Kit
C		 Starter Kit
D		 Starter Kit
E
Card Tag
(UTAG-9056)		 x 4 x 8   x 4
Industrial Anchor
(UMB-02)		 x 3 x 6   x 4
Ceiling-Mount Anchor
(UWB-03S)		 (alternative) (alternative)   (alternative)
Waterproof Anchor
(UWB-04)		 (alternative) (alternative)   (alternative)
USB Configuration Dongle x 1 x 1 x 1  x 1
PC Application Source
Code (C#)		 x 1 x 1   x 1
Active Positioning Anchor
(UWB-02-RP)		     x 6
Active Positioning
Software		     x 1
Active Positioning Tag     x 2
Passive Alert Beacon
(UTAG-SL90)		       x 1
Active Alert Beacon
(UTAG-SL90F)		       x 1

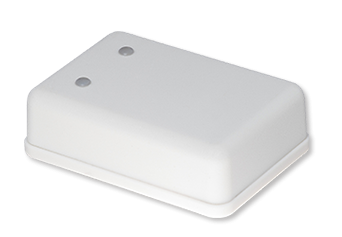

Compact Tag
(UTAG-5136)		       x 4

Modules Introduce

1. UWB Card Type TAG (Standard)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Max 50M line-of-sight (30M recommend)
  3. Parameter Setting : Transmission time 0~65636 seconds, ID setting, G-sensor sensitivitysetting
  4. Button & Charging Voltage : Power Button/ Setting Button/ Unassigned Button；DC+5V Input
  5. LED Display : Power/ Connectivity/ Battery level
  6. Peripheal Device : Gsensor & Alarm & Vibration Motor (Standard)；Barometer & PA & 13.56M RFID (Optional)
  7. Power capacity : Lithium battery 400mAh / 3 months (2 seconds at a time under SmartIPS project)
  8. Dimention & Weights : body 90×56×6.8(mm)/ 51g，UTAG-9056PA: 90×56×6.8(mm)/ 54g
  9. Model No : UTAG-9056 / UTAG-9056PA

2. UWB Anchor (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Interfaces / UWB Mode : UWB/ RJ45；ToF
  4. Functions Interface : NC.
  5. Antenna Angle : 360 degree
  6. Installation : Wall-hanging
  7. Power : Input Voltage DC +5V/ PoE
  8. Dimension & Weights : 72x72x25 (mm)/
  9. Model No : UWB-01

3. UMB Industrial Anchor (Standard)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz；WiFi 2.412~2.484GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Interfaces / UWB Mode : UWB/ RJ45/ Wi-Fi；ToF
  4. Functions Interface : TTL UART*1+GPIO*2，Barometer & Power Amplifier (Optional)
  5. Antenna Angle : 360 degree
  6. Installation : Wall-hanging
  7. Power : Input Voltage DC+5V/ PoE
  8. Dimension & Weights : 147x86x41 (mm)/ 380g　
  9. Model No : UWB-02 / UWB-02PA

4. UWB Ceiling Anchor (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz；WiFi 2.412~2.484GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Interfaces / UWB Mode : UWB/ RJ45/ Wi-Fi；ToF
  4. Functions Interface : Barometer & Power Amplifier (Optional)
  5. Antenna Angle : 360 degree
  6. Installation : Ceiling
  7. Power : Input Voltage DC+5V/ PoE
  8. Dimension & Weights : 110x110x33 (mm)/ 200g　
  9. Model No : UWB-03S / UWB-03SPA

5. UWB waterproof anchor (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz；WiFi 2.412~2.484GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Interfaces / UWB Mode : UWB/ RJ45/ Wi-Fi；ToF
  4. Functions Interface : Power Amplifier (Optional)
  5. Antenna Angle : 360 degree
  6. Installation : Wall-hanging
  7. Power : Input Voltage AC110~220V/ PoE
  8. Dimension & Weights : 128x94x80 (mm)/ 1100g　
  9. Model No : UWB-04 / UWB-04PA

6. UWB explosion-proof anchor (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz；WiFi 2.412~2.484GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Interfaces / UWB Mode : UWB/ RJ45/ Wi-Fi；ToF
  4. Functions Interface : Power Amplifier (Optional)
  5. Antenna Angle : 360 degree
  6. Installation : Wall-hanging
  7. Power : Input Voltage AC110~220V/ PoE
  8. Dimension(W x D x H): 210x127x115(mm)(UWB-05-A，External)210x127x115(mm)(UWB-05-B，External)
  9. Model No : UWB-05-A / UWB-05-B

7. UWB Audible LED Beacon-Stationary (Standard)

  1. Operational range : maximum 100m line-of-sight
  2. Communication protocol : 802.15.4a UWB
  3. Frequency : 3.25GHz~6.75GHz
  4. Installation : wall-hanging
  5. Input : DC 12V(Inner 12V 5A transformer)
  6. Dimension and weight : 157×117×143 mm / 460g(Includes bracket, wire)
  7. Alarm mode : Speaker treble and LED rotation alarm
  8. Protection level : IP55，Dustproof and waterproof, suitable for harsh environments
  9. Model : UTAG-SL90 V2 / UTAG-SL90-PA V2(Optional)
  10. Suitable application: Install at the corner of the T-intersection (T- junction) of the forklift’s travel path. When the forklift is approaching, it will automatically trigger sound and light alarms to alert nearby pedestrian.

8. UWB Audible LED Beacon-Forklift (Standard)

  1. Operational range : maximum 100m line-of-sight
  2. Communication protocol : 802.15.4a UWB
  3. Frequency : 3.25GHz~6.75GHz
  4. Installation : wall-hanging
  5. Input : DC +8V~55V(Wide voltage, with power on the car)
  6. Dimension and weight : 157×117×143 mm / 460g(Includes bracket, wire)
  7. Alarm mode : Speaker treble and LED rotation alarm
  8. Protection level : IP55，Dustproof and waterproof, suitable for harsh environments
  9. Model : UTAG-SL90F V2 / UTAG-SL90F-PA V2(Optional)
  10. Suitable application : Install on a forklift. When the forklift is approaching the following components at the T intersection (T- junction) : audible LED beacon, personnel TAG, or other forklifts equipped with audile LED beacon, It will trigger a sound and light alarm to alert the forklift operator.

9. Helmet type TAG (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Max50M line-of-sight (30M recommend)
  3. Parameter Setting : Transmission time 0~65636 seconds, ID setting, G-sensor sensitivity setting
  4. Button & Charging Voltage : Power button；DC+5V input
  5. LED Display : Power/ Connectivity
  6. Peripheral Device : Gsensor & Alarm & Vibration Motor (Standard)；Barometer & PA (Optional)
  7. Power Supply : Lithium battery 500mAh / 4 months (2 seconds at a time under SmartIPS project)
  8. Dimention & Weights : body 51×36×15(mm)/ 29g，5136PA: 51×36×20(mm)/ 35g
  9. Model No : UTAG-5136 / UTAG-5136PA

10. UWB-USB-01 Dongle (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Maximum 50M line-of-sight (20M recommend)
  3. Scalability : Embedded FT32 chip，Use on PC (Windows) and Android
  4. Communication interface : USB TO RS232
  5. Power Supply : Standard USB DC +5V
  6. Power consumption: Transmitting mode < 50mA；Receiving mode < 50mA；standby mode < 50mA
  7. Dimension & Weights : 67.5×24.6×12.0(mm) / 15g
  8. Model No : UWB-USB-01

11. Dismantle and waterproof Watch Type Tag (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Parameter Setting : Transmission time 0~65636 seconds, ID setting, G-sensor sensitivity setting
  4. Button & Charging Voltage : Power button；DC +5V input
  5. LED Display : power, communication status, power capacity and customization
  6. Peripheral Device : Gsensor (Standard)；Vibration Motor，Heart rate detection (Optional)
  7. Power Supply : Lithium battery 1000mAh / 8 months (2 seconds at a time under SmartIPS project)
  8. Dimention & Weights : body 41×35×14(mm) / 185g
  9. Protection level : IP65
  10. Model No : UTAG-H03

12. Waterproof Watch Type Tage (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Parameter Setting : Transmission time 0~65636 seconds, ID setting, G-sensor sensitivity setting
  4. Button & Charging Voltage : Power button；DC +5V input
  5. LED Display : power, communication status, power capacity and customization
  6. Peripheral Device : Gsensor (Standard)；Vibration Motor，Heart rate detection
  7. Power Supply : Lithium battery 1000mAh / 8 month
  8. Dimention & Weights : body 41×35×14(mm) / 185g
  9. Protection level : IP65
  10. Model No : UTAG-H05

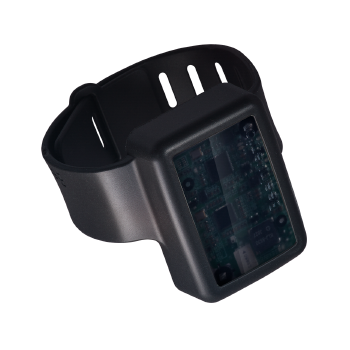

13. Bangle Type Tage (Optional)

  1. Protocol & Frequency : 802.15.4a UWB 3.25GHz~6.75GHz
  2. Coverage : Maximum 100m line-of-sight (30 to 50 meters recommend)
  3. Parameter Setting : Transmission time 0~65636 seconds, ID setting, G-sensor sensitivity setting
  4. Button & Charging Voltage : Power button；DC +5V input
  5. LED Display : Power/ Connectivity
  6. Peripheral Device : Gsensor & Alarm & Vibration Motor (Standard)
  7. Power capacity : Lithium battery 500mAh / 4 months (2 seconds at a time under SmartIPS project)
  8. Dimention & Weights : body 51×36×15(mm)/ 54g
  9. Model No : UTAG-H04

14. Mount Holder (Optional)

  1. Adjustable support: the bracket has 5 levels, which can be adjusted up and down, with the minimum of 1m and the maximum height of 2.1m
  2. The frame body is made of metal and the joints are made of nylon
  3. The tray and upper bar can rotate 360 degrees freely

Note:

1. Prices and specifications are subject to change without notice.
2. EOL products will not be notified separately.
3. Product images are for reference only. Actual products may vary depending on the version or specifications.
4. Product information, specifications, and availability are subject to confirmation at the time of order.
