smartLink HW-PN
Part No.: MPST-smartLink-HW-PN
Asset Management Access Point for PROFINET networks
Product Description
Description

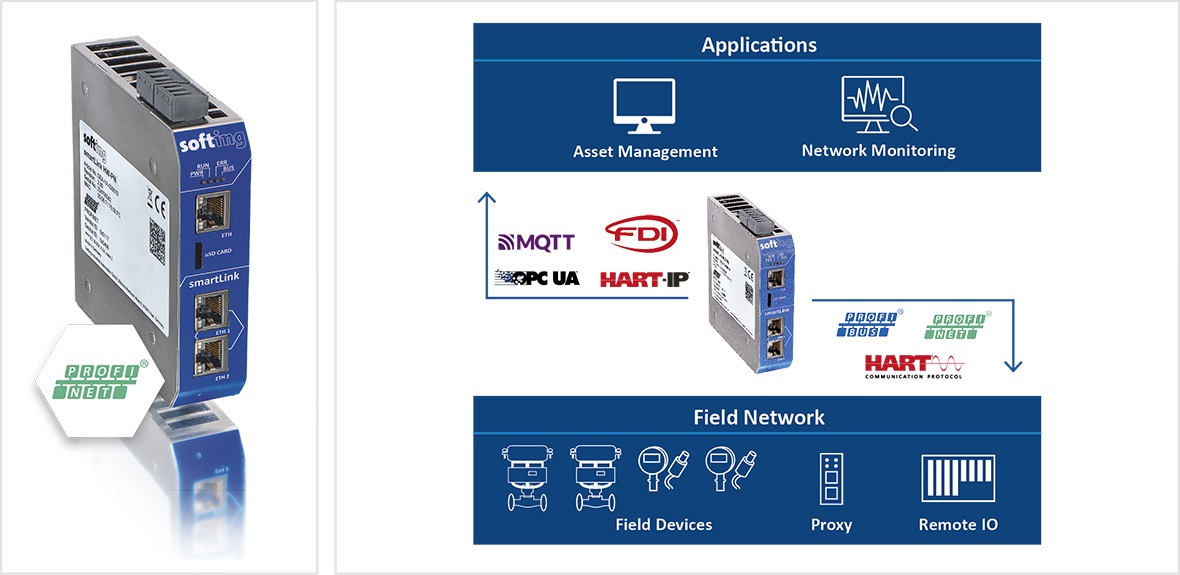

Asset Management Access Point for PROFINET networks
Manage PROFINET and PROFIBUS devices with standard Asset Management Tools
smartLink HW-PN provides controller independent access to PROFINET networks. It can be used with standard industry tools for asset management, device configuration and monitoring. smartLink HW-PN provides transparent access to connected PROFINET, HART and PROFIBUS devices.
Overview
Plant Asset Management and Parameterization using Standard Industry Tools
- Independent from PROFINET engineering tools
- Centralized and time-saving asset management of PROFINET networks with PROFINET, HART and PROFIBUS field devices directly from the control room
- Access from Plant Asset Management applications for field devices based on the FDI standard
Network Monitoring of PROFINET networks
- Prevent unplanned downtimes of production lines with PROFINET networks
- Get messages indicating problems in the network or with installed devices
- Full overview of the PROFINET network and all installed devices
- Access the data with the IT friendly MQTT protocol
Ethernet Access Point to PROFINET networks
- Provides 2nd channel to access the field devices
- Acts as a PROFINET supervisor
- Is part of one PROFINET network
- Integrated 2-port switch for use in line network topologies
Key Component for Transition to State-of-the-Art Technology
- Re-use of existing PROFINET networks without requiring modification
- Access to acyclic data via FDI communication server (OPC UA) or HART-IP
- Access to network monitoring data via MQTT

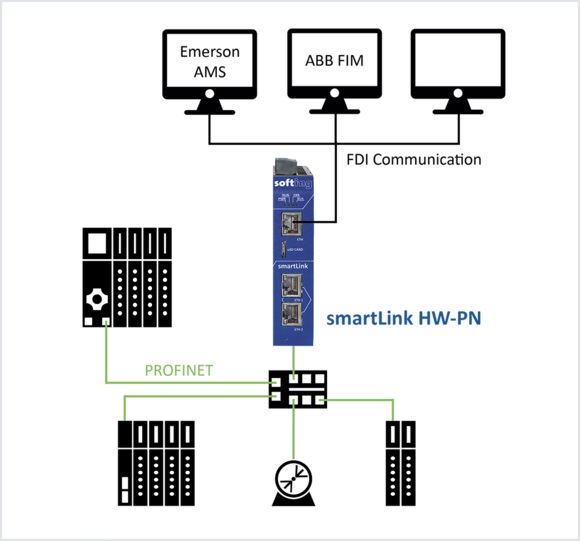

Asset Management and Parameterization of PROFINET Devices
Plant Asset Management and Parameterization
- Secure, standardized access to devices
- Parallel to and independent of the controller
Compatible with established standard applications
- Proven and tested with Emerson AMS Device Manager and ABB FIM
- Implements the standard FDI communication server interface based on OPC UA

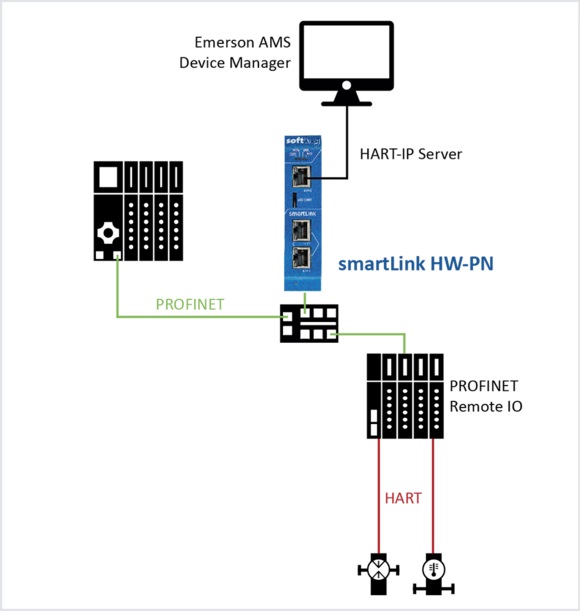

Asset Management and Parameterization of HART Devices
Plant Asset Management and Parameterization
- Secure, standardized access to devices
- Parallel to and independent of the controller
Compatible with established standard applications
- Proven and tested with Emerson AMS Device Manager
- Implements the standard HART-IP server interface
Transparent HART communication
- HART commands sent to the HART-IP server are forwarded to the HART devices
- No limitation on the supported HART commands
- Uses the open HART-IP protocol
Access HART devices without additional Hardware
- Use the existing infrastructure to access the HART devices
- No additional cost for HART multiplexer hardware
- No installation and maintenance of additional Hardware

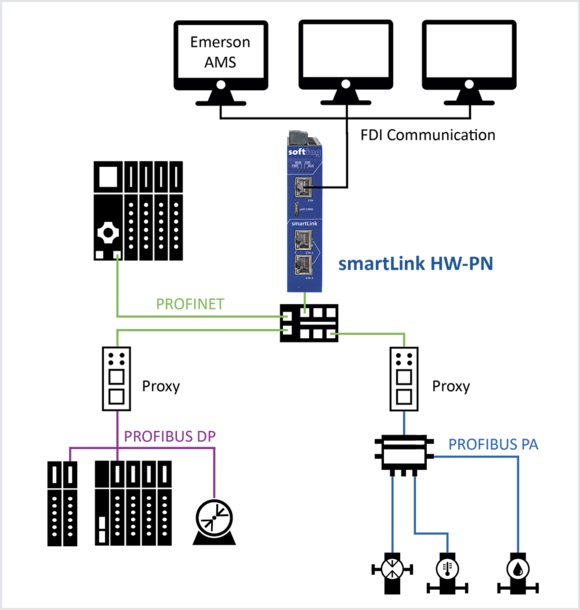

Asset Management and Parameterization of PROFIBUS Devices
Plant Asset Management and Parameterization
- Secure, standardized access to devices
- Parallel to and independent of the controller
Inexpensive and low-risk Integration
- Connection of PROFIBUS devices without additional hardware
- Use of existing infrastructure using the PROFINET/PROFIBUS proxy standard for connecting to the PROFIBUS devices
Compatible with established standard applications
- Proven and tested with Emerson AMS Device Manager
- Implements the standard FDI communication server interface based on OPC UA

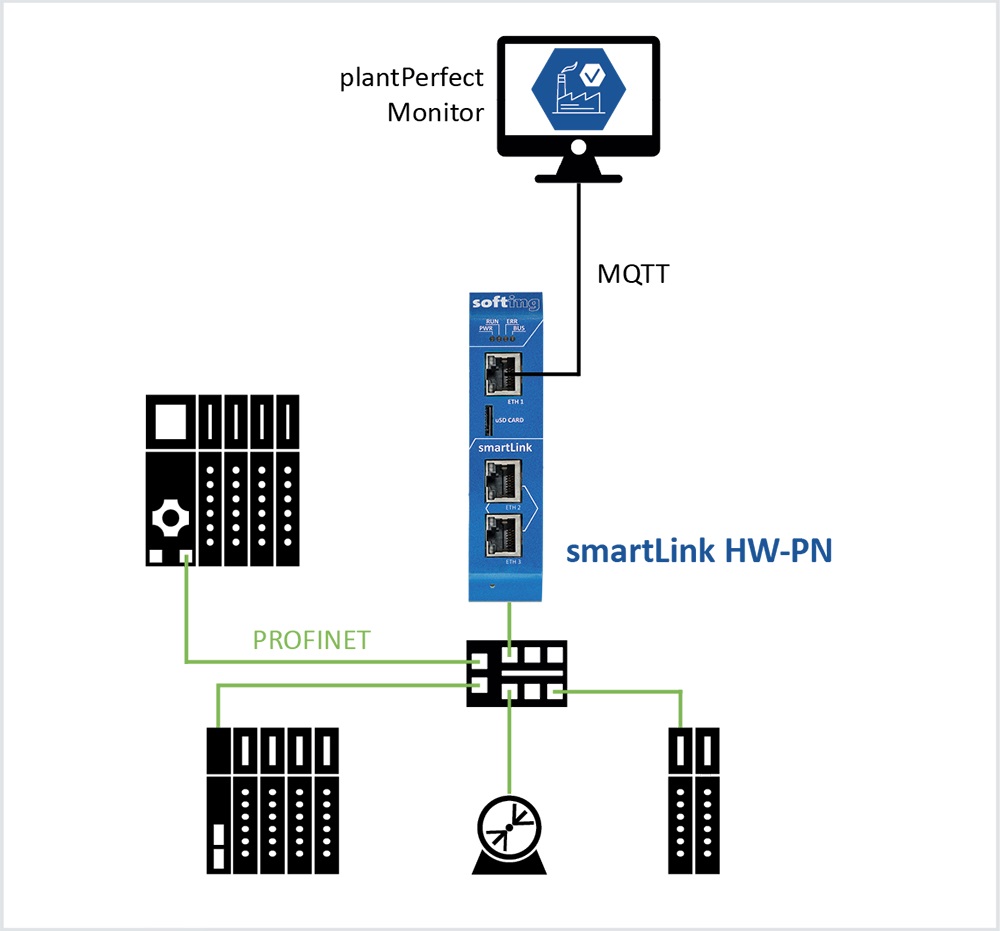

Network Monitoring in PROFINET Networks
Complete inventory of the entire network
- Complete network topology data
- I&M data from all connected devices
- Automated live queries without configuration
Secure provision of data using MQTT
- Secure IT friendly transmission method
- Information model based on OPC UA Companion Specifications for PROFINET
Health monitoring of all connected devices
- Diagnostic messages and NE107 status of all devices
- Statistics parameters of all network devices
Integrated with Softing plantPerfect Monitor application
- Use the plantPerfect Monitor application to monitor the network with all its devices
Technical Data
| Hardware | Processor | Altera Cyclone V SoC with dual-core ARM Cortex-A9 |
|---|---|---|
| Status LEDs (Gateway) | PWR, RUN, ERR, BUS | |
| Real-Time Clock |
Real-Time clock with buffering, setting the time via browser or by NTP server
(buffer time depends on conditions such as ambient temperature and duration of use)
|
|
| Interfaces | Ethernet | 1 x IEEE802.3 10BASE-T/100BASE-TX/1000BASE-T, Connector: RJ45 |
| PROFIBUS DP |
2 x IEEE802.3 10BASE-T/100BASE-TX, Connector: RJ45; Embedded PROFINET 2-port switch for line topology Protocol: PROFINET RT / IRT, Support of PROFINET redundancy protocols |
|
| Supported | Communication Protocols |
PROFINET, PROFIBUS
FDI communication server (OPC UA), MQTT
|
| PROFINET/PROFIBUS Proxies |
Softing: pnGate DP, pnGate PA, aplSwitch Field PA
Pepperl + Fuchs: Ethernet-APL Rail Field Switch (Firmware >= V1.3.1)
R.Stahl: Ethernet-APL Field Switch
|
|
| HART Controller and Remote IOs |
Siemens:
ET 200iSP:
PROFINET IM152-1PN: 6ES7152-1BA00-0AB0 (redundant)
|
|
|
ET 200SP:
PROFINET IM155-6PN (High Feature): 6ES7155-6AU01-0CN0,
PROFINET IM 155-6 PN/3: 6ES7155-6AU30-0CN0 (redundant),
PROFINET IM 155-6 PN R1: 6ES7155-6AU00-0HM0 (redundant)
|
||
|
ET 200SP HA:
PROFINET IM155-6PN, 6DL1155-6AU00-0PM0 (redundant)
|
||
|
ET 200M:
PROFINET IM153-4 PN (High Feature): 6ES7153-4BA00-0XB0
|
||
|
ET 200MP:
IM 155-5 MF (High Feature): 6ES7155-5MU00-0CN0
|
||
|
CFU HART:
6ES7655-5PX41-1XX0
|
||
| Supported HART IO Modules |
Siemens:
ET 200iSP:
6ES7134-7TD00-0AB0, 6ES7134-7TD50-0AB0, 6ES7135-7TD00-0AB0, 6ES7138-7FA00-0AB0
|
|
|
ET 200SP:
6ES7134-6TD00-0CA1, 6ES7135-6TD00-0CA1
|
||
|
ET 200SP HA:
6DL1133-6EW00-0PH1, 6DL1133-6EW00-0EH1, 6DL1134-6TH00-0PH1, 6DL1134-6UD00-0PK0, 6DL1134-6TB00-0HX1, 6DL1135-6TF00-0PH1 6DL1135-6UD00-0PK0, 6DL1135-6TB00-0HX1, 6DL1135-6TF00-0EH1, 6DL1136-6AA00-0PH1,
with optional module redundancy
|
||
|
ET 200MP:
6ES7531-7TF00-0AB0, 6ES7532-8TF00-0AB0
|
||
|
ET 200M:
6ES7331-7TF01-0AB0, 6ES7332-8TF01-0AB0, 6ES7331-7TB10-0AB0, 6ES7332-5TB10-0AB0, 6ES7336-4GE00-0AB0
|
||
| Asset Management Applications |
Emerson AMS Device Manager >=V15
ABB Field Information Manager (FIM) >= V3.3
|
|
| Physical Properties | Dimensions (H x W x D) | 120 mm x 28 mm x 110 mm |
| Weight | Approx. 430g | |
| Power Supply |
18 VDC ... 32 VDC; SELV/PELV power supply mandatory
Typical input current: 200 mA, maximum input current: 1 A (allowing for in-rush current at switch-on)
|
|
| Typical Power Loss | 5 W | |
| Operating Temperature | -40 °C ... +65 °C (see detailed mounting description in user manual) | |
| Storage Temperature | -40 °C ... +85 °C | |
| Relative Humidity | 10 % ... 95 %, non-condensing | |
| Cooling | Convection, no fan | |
| Mounting | DIN rail 35 mm | |
| Protection Class | IP20 | |
| Conformity / Standards | CE |
Electromagnetic compatibility (EMC) and Restriction of Hazardous Substances (RoHS)
EN 61000-6-2 Generic standards - Immunity standard for industrial environments
EN 61000-6-4 Generic standards - Emission standard for industrial environments
EN 55032 Electromagnetic compatibility of multimedia equipment - Emission Requirements Class A
EN 55011 Industrial, scientific and medical equipment - Radio-frequency disturbance characteristics –
Limits and methods of measurement Class A
EN 50581:2012/EN IEC 63000:2018 RoHS, Assessment to the restriction of hazardous substances
|
| FCC | FCC 47 CFR Part 15B Section 15.109 (Class A) | |
| VCCI | VCCI Voluntary Control Council for Interferences by Information Technology Equipment, April 2015 |
Order Information
| Scope of Delivery | |
|---|---|
| Hardware | smartLink HW-PN |
| Order Numbers | |
| GEA-YA-026010 | smartLink HW-PN |
| LRA-AA-027003 | smartPlus PN, License access to one field device |
| Additional products and services | |
| LRL-TG-020000 | plantPerfect Monitor, perpetual licence including 1 year software updates for 1 device |
| LMA-TG-020000 | plantPerfect Monitor, 1 year software updates for 1 device |
| LAA-TG-020000 | plantPerfect Monitor, 1 year rental licence for 1 device |
