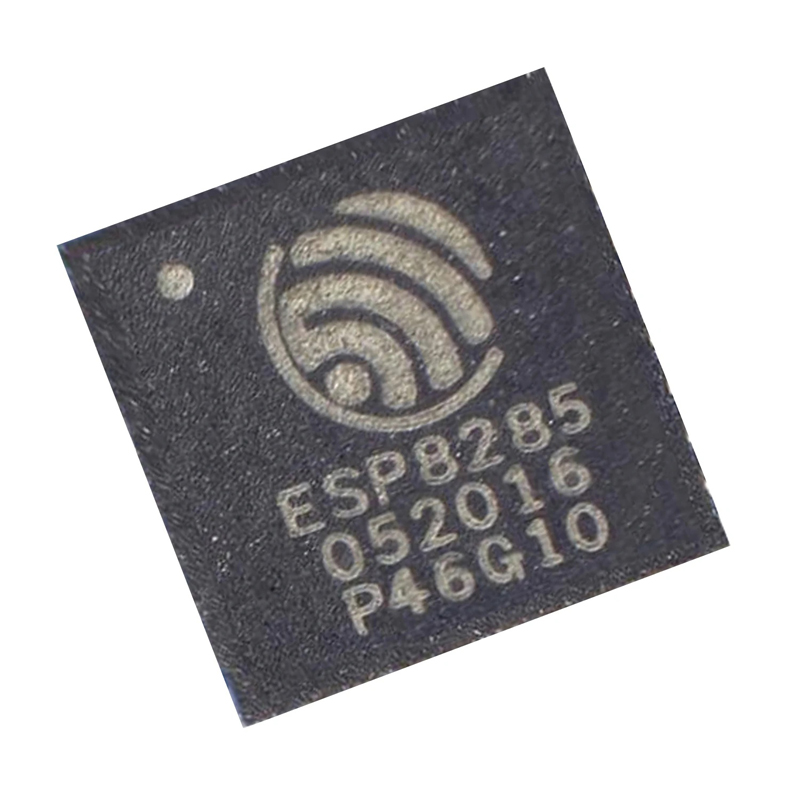

ESP8285

Part No.: MPGC-ESP8285
The ESP8285 is a compact, low-power, Wi-Fi SoC solution designed for the Internet of Things (IoT).

Product Description

Description

Minimum Quantity Required: 10 chips.

The ESP8285 is a compact, low-power, Wi-Fi SoC solution designed for the Internet of Things (IoT). This wireless chip follows the 802.11 b/g/n/e/I WLAN MAC protocol along with the latest Wi-Fi P2P and TCP/IP. The chip can also be applied to a micro-controller and a Wi-Fi adaptor through SPI/SDIP or I2C/UART interfaces.

With the Tensilica’s L106 Diamond series 32-bit microcontroller (MCU) the chip is often integrated with external sensors and other application-specific devices through the 17 GPIOs. It offers reliable performance as a standalone application or as the slave to a host MCU.


The Espressif Systems’ Connectivity Platform (ESCP) enables the following features

  • Fast switch between sleep and wake-up mode
  • Adaptive radio biasing
  • Advanced signal processing
  • Spur cancellation
  • Radio co-existence mechanisms for common interference mitigation

Examples of major applications include

  • Home automation
  • Smart lights and plugs
  • IP cameras
  • Baby monitors
  • Sensor networks
  • Security ID tags
  • Mesh networks
  • Industrial wireless control
  • Wearable electronics
  • WiFi location-aware devices
  • WiFi position system beacons

Features

  • 802.11 b/g/n/e/i support
  • Wi-Fi Direct (P2P) support
  • WPA/WPA2 PSK, and WPS driver
  • WMM power save U-APSD
  • Multiple queue management to fully utilize traffic prioritization
  • UMA compliant and certified
  • 802.1h/RFC1042 frame encapsulation
  • Seamless roaming support

Specifications


Antenna PCB Trace, External, IPEX Connector, Ceramic Chip
Connectors IPEX Connector
CPU Tensilica L106 32-bit micro controller
Dimensions 5 mm x 5 mm (QFN32-pin)
Firmware UART Download/OTA (via network)
Frequency Band 2.4G ~ 2.5G (2400M ~ 2483.5M)
Interfaces
UART/SDIO/SPI/I2C/I2S/IR Remote Control
GPIO/ADC/PWM
Memory 1 MB
MPN ESP8285
Networding Standards FCC / CE / TELEC / SRRC
PINS 17 GPIO pins
Power Consumption 0.5 μA to 170 mA
Product Power Supply Digital/IO (2.7V ~ 3.6V)
Protocols
Wi-Fi: 802.11 b/g/n/e/I
Network: IPv4, TCP/UDP/HTTP/FTP
Securityprotection
Software Security: WPA / WPA2
Software Encryption: WEP/TKIP/AES
Software
Development: Supports Cloud Server Development/Firmware and SDK for fast on-chip programming
Configuration: AT Instruction Set, Cloud Server, Android/iOS app
Temperature Range Operating & Storage: -40ºC to 125ºC (-40ºF to 257ºF)
Timers RTC timer
Voltage 2.7V ~ 3.6V
