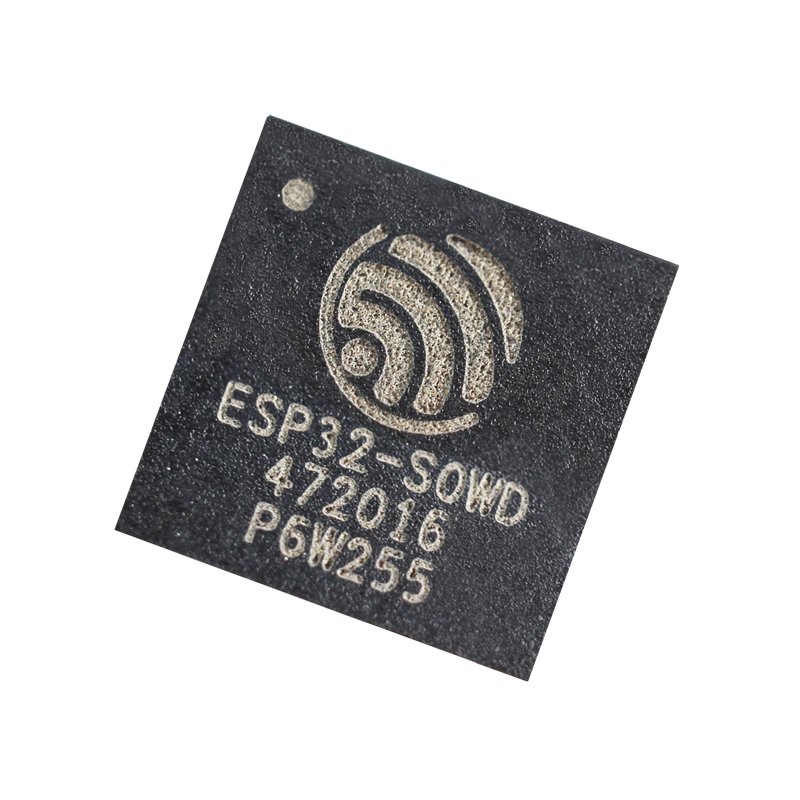

ESP32-S0WD

Part No.: MPGC-ESP32-S0WD
The ESP32-S0WD has a single-core microprocessor, making it a money saving option for applications where line power is available.

Product Description

Description

Minimum Quantity Required: 10 chips.

The ESP32-S0WD has a single-core microprocessor, making it a money saving option for applications where line power is available. Unlike the rest of the ESP32 family, the ESP32-S0WD lacks the second microprocessor used for low power modes, but otherwise has all the same great features and peripherals. This single core option is perfect for gateway applications where line power is available. This combo chip has both Bluetooth (BT 4.2 and BLE) and Wi-Fi. .



ESP32-S0WD Key Features

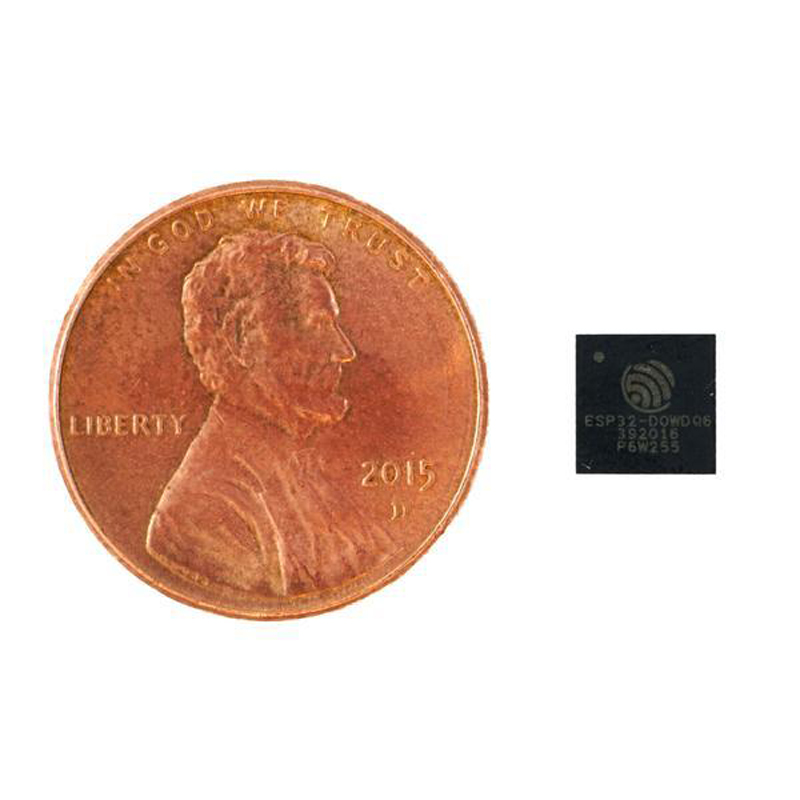

  • Small 5 x 5 mm package
  • 2.4 GHz Wi-Fi
  • Bluetooth 4.2 and BLE
  • Fine resolution clock gating
  • Dynamic power scaling
  • Built-in Antenna Switches

These features allow the support of leading industry smart home standards including Apple HomeKit.



Features


ESP21-D0WD Features

  • Built-In Antenna Switches
  • Power Amplifier
  • RF Balun
  • Low Noise Receive Amplifier
  • Compliant with Bluetooth v4.2 BR/EDR and BLE specification
  • Bluetooth Class 1, Class 2, and Class 3 transmitter without external power amplifier
  • BT 4.2 controller and host stack
  • 802.11 b/g/n/e/i Wi-Fi
  • Wi-Fi Antenna diversity and selection
  • Fine Resolution Clock Gating

Peripherals and Sensors

  • 12-bit SAR ADC up to 18 channels
  • 2 x 8-bit D/A convertors
  • 10 x touch sensors
  • On-chip temperature sensor
  • On-chip Hall sensor
  • 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART
  • CAN 2.0
  • IR (TX/RX)
  • Motor PWM
  • LED PWM
  • Supports the industry leading smart home standards including Apple HomeKit

Specifications


Chip Package QFN 5x5
Controllers
  • Infrared Remote Controller
  • DMA controllers
  • Bluetooth Link Controller
  • BT 4.2 Controller
  • SD/SDIO/MMC HOst Controller
  • PID Controller
  • Efuse Controller
  • Media Access Controller (MAC)
  • Pulse Width Modulation (PWM) controller
Core Single Core
CPU Xtensa® 32-bit LX6 microprocessor
Dimensions 5.0 x 5.0 x 0.85 mm
Interfaces
  • 4 x SPI, 2 x I2S, 2 x I2C, 3 x UART, CAN 2.0, IR (TX/RX)
  • Motor PWM, LED PWM (up to 16 channels)
  • 12-bit SAR ADC up to 18 channels, 2 x 8-bit D/A converters
  • 10 x touch sensors
Memory
  • 448 KByte ROM
  • 520 KByte SRAM
  • 8 KB SRAM in RTC
  • 1 kbit of eFuse
MPN ESP32-S0WD
PINS 48 Pin QFN package
Power Power supply: 2.2 V to 3.6 V
Protocols
  • Wi-Fi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
  • Wi-Fi: A-MPDU and A-MSDU aggregation and 0.4 guard interval support
  • Bluetooth: Bluetooth v4.2 BR/EDR and BLE specification
  • Network: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
Temperature Range
  • Operating: -40°C to +125°C (-40º to 257ºF)
  • Storage: -40ºC to 150ºC (-40º to 302ºF)
Timers 4 General-Purpose Timers
Watchdog Timer 3 Watchdog Timers
