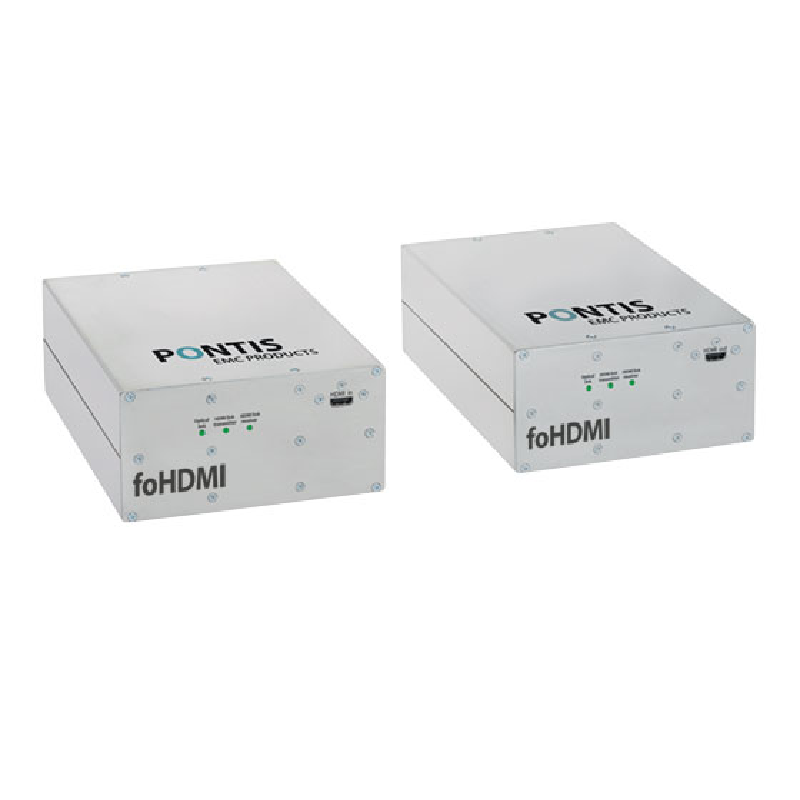

FibreOptic foHDMI

Part No.: MPPT-FibreOptic-foHDMI
Full HD 1080 p, uncompressed

Product Description

foHDMI

  • Full HD 1080 p, uncompressed
  • Unidirectional, 10.2 GBit/s High speed duplex (up to HDMI 1.2)
  • Max. distance 200 m
  • EMC compliant to CISPR 25, Class5

foHDMI (up to 1.2)

In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.

For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.

A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.

In most cases both units are shielded.


Features

  • RF-Immunity: Antenna radiated 200 V/m, 200MHz – 18GHz, ISO11452-2, CW, AM, PM Stripline 200 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
  • Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz
  • Battery (approx. 8 hours operation) or mains powered
  • Compact metal housing
  • No galvanic connection between test equipment and measurement instruments
  • Max. HD resolution 1920 x 1080, up to 60 Hz
  • Unidirectional signal transfer (HDMI up to version 1.2)

Accessories

  • Standard
    • One set consists of two shielded converter units: Converter 1: transmitter (to connect with source of signals); Converter 2: receiver (to connect with
    • receiver of signals e.g. TV Set)
    • Special shielded HDMI cable, 2.0 m
    • All converters are shipped with the appropriate power supply or battery and charger.
  • Optional
    • Fibre optic cables: variable lengths ST/FSMAconnector or ST/ST-connector
    • FO-Patches (Feed Through wall Patches)

Technical Specifications

Converter 1 (Transmitter) transmitting (to connect with source of signals)
Converter 2 (receiver) receiving (to connect with receiver of signals e.g. TV Set)
Data Signaling Rate HDMI up to version 1.2, Non-compressed transmission real-time without Delay
Data Transfer Direction unidirectional, 10.2 GBit/s High-speed duplex transmission and Support CEC
HDMI Resoulution 24 / 50 / 60 fs / 1080 p / 1080 i / 720 p / 576 p / 576 i / 480 p / 480 i
Video Format Video Format
Audio Signal Format DTS-HD/Dolby-true, HD / LPCM7.1 / DTS/Dolby-AC3 / DSD
Fibre Optic Connection  FST
Fibre Optic Cables
multimode duplex fibre, 50/125 µm
maximum fibre length 200 m
Wavelength 850 nm
Charging Input recharchable battery (12 VDC) or 230 VAC, 50 / 60 Hz
Operating Temperature  0 °C / +40 °C
Operating Humidity 20 to 85 % RH
Weight Per Converter 2.4 kg
Housing  passivated aluminium, stainless steel, 2 mm
Dimensions Per Converter  225 x 165 x 85 mm (LxWxH)

Prices and specifications are subject to change without notice!
