CS1004 + CS1005 Digital Probe Pods
Part No.: MPCS-CS1004+CS1005-Digital-Probe-Pods
It is used to probe up to 8 digital signals
Product Description

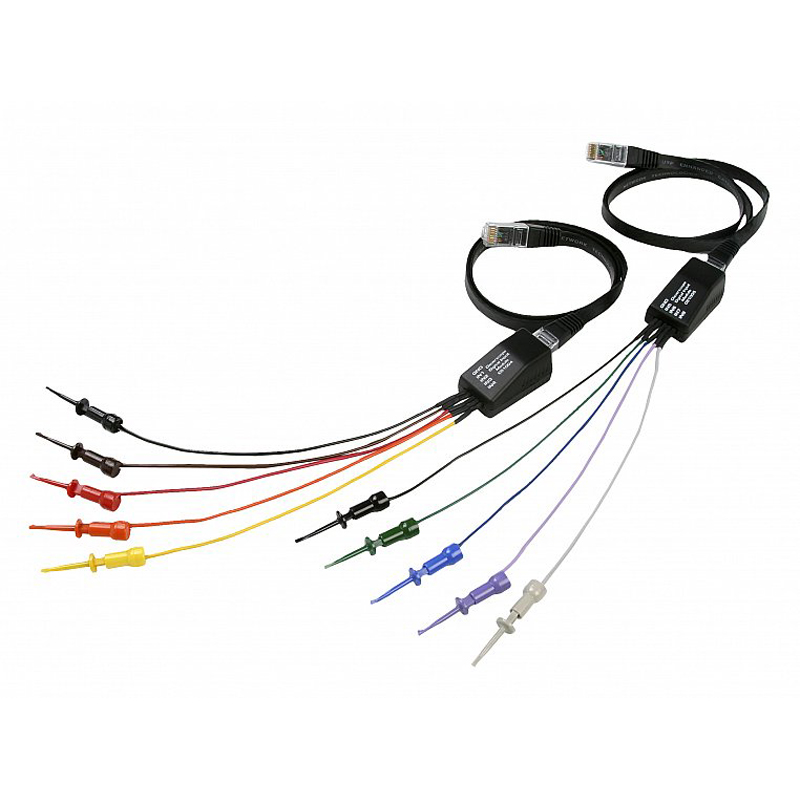

CS1004 + CS1005 Digital Probe Pods
Digital Probe pods (8 bit, 100 MHz) including probe clips
The CS1004 + CS1005 Digital Probe pod is used to probe up to 8 digital signals. Eight signal and two ground probe clips are included.
Specifications:
| Item | Value | |
|---|---|---|
| Attenuation Ratio | 1:4 | |
| Number of Signal Inputs | 8 | |
| Probe Description | 45 mm Ezy™ Hook, spring probe, 0.4mm probe width | |
| Bandwidth | DC to 100 MHz | |
| Rise Time | 2 ns | |
| Input Resistance | 100 Ω | |
| Input Capacitance | Approx 16 pF | |
| Working Voltage | -16V to + 20V | |
| Cable Length | 1 m from Cleverscope Acquisition Unit to Pod, 150mm from Pod to probe clip | |
