PCAN-USB

Part No.: MPPK-IPEH-002021
MPPK-IPEH-002022 (opto-decoupled)

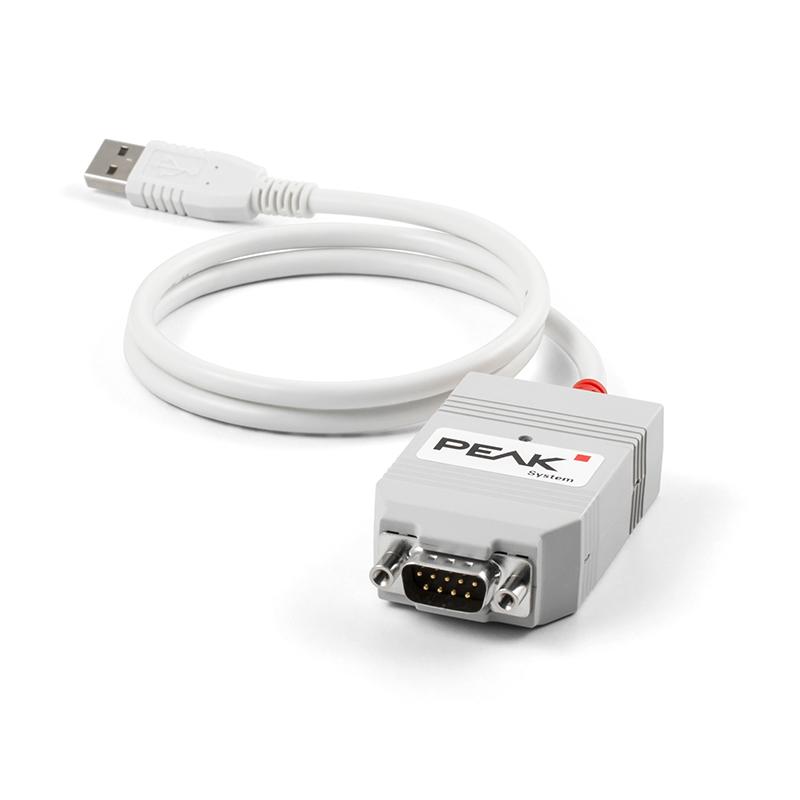

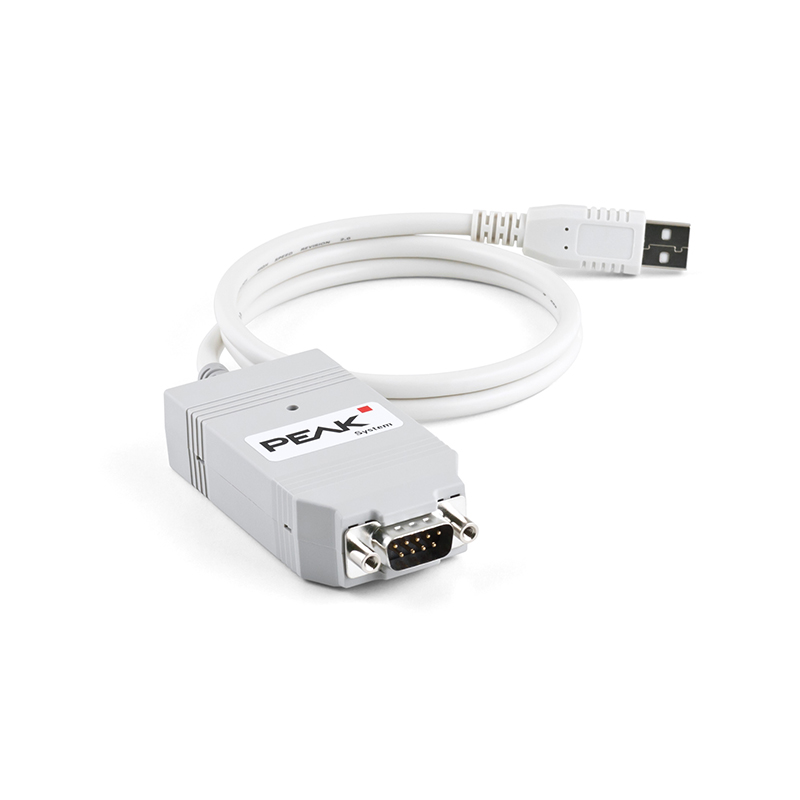

The PCAN-USB adapter enables simple connection to CAN networks.

*Microport is the exclusive agent of PEAK SYSTEM in Taiwan.

Product Description

Description

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.

The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

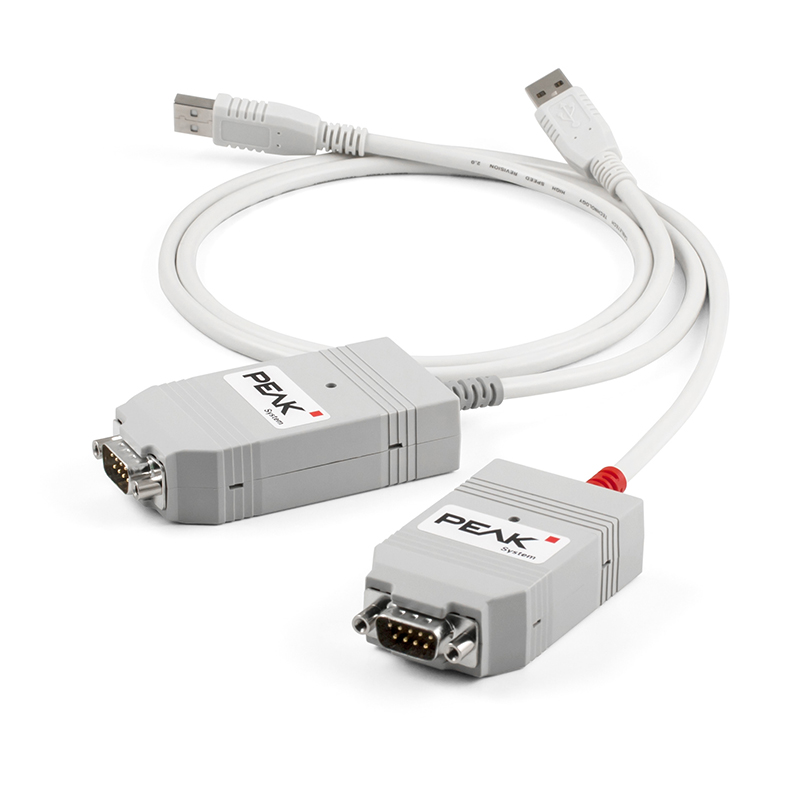

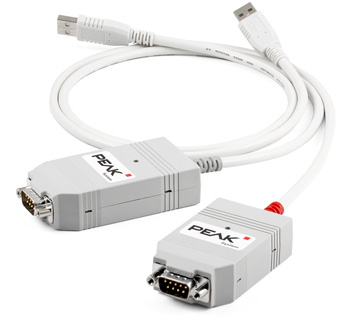

PCAN-USB-Group



Technical Specifications

  • Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
  • High-speed CAN connection (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Time stamp resolution approx. 42 µs
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
  • Voltage supply via USB
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Pin Assignment D-Sub

Pin-Assignment D Sub



PIN
PIN Assigmnet
1
Not connected / optional +5V
2
CAN-L
3
GND
4
Not connected
5
Not connected
6
GND
7
CAN-H
8
Not connected
9
Not connected / optional +5V

Product Includes...

  1. PCAN-USB in plastic casing
  2. Device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit)
  3. Device driver for Windows® CE 6.x (x86 and ARMv4 processor support)
  4. CAN monitor PCAN-View for Windows®
  5. Programming interface PCAN-Basic for developing applications with CAN connection
  6. Programming interfaces for standardized protocols from the automotive sector
  7. Manual in PDF format
Note:
1. Prices and Specifications are subject to change without notice
