Description

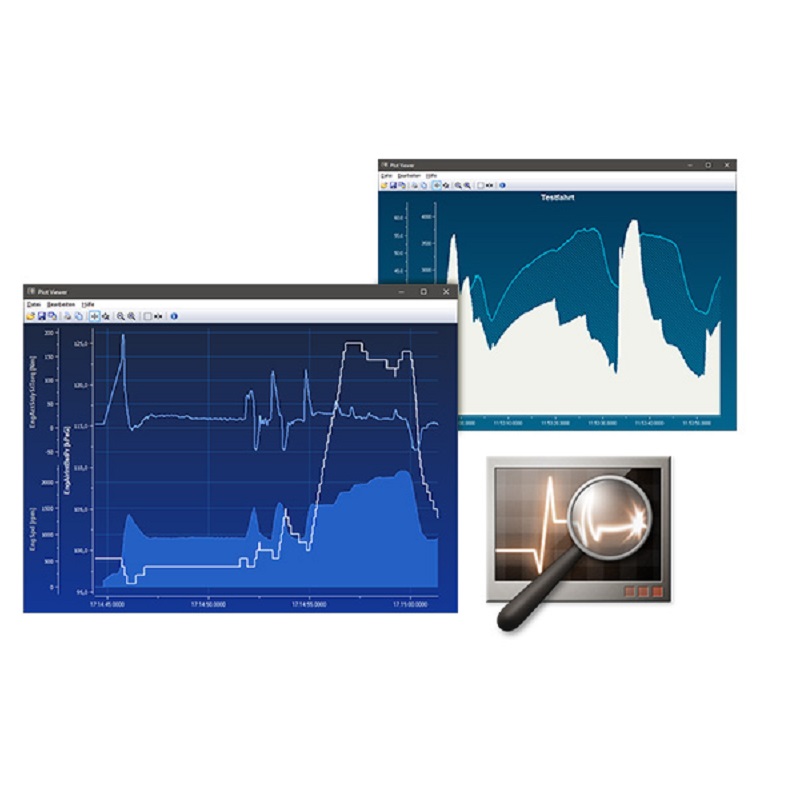

The Plot Viewer can be used for displaying and analyzing plot recordings that have been created by the PCAN-Explorer's Plotter Add-in (file extension *.plt). Because the Plot Viewer works independently of the PCAN-Explorer and is freely available, for example, employees or customers are enabled to analyze signal curves in a quick way.

Cursors configured in a plot file can be used to measure signal courses. Moreover, a CSV export of the measurement data is possible.


System requirements

• Windows® 11 (x64/ARM64), 10 (x86/x64)
