Description

The kit comes with:

• X-Analyser 3 ECO for raw CAN receive and transmit
• Kvaser Leaf v3 to USB interface
• SENT to CAN Configuration Software
• SENT-to-CAN Interface

A low-cost gateway between two SAE J2716 (SENT) channels and a CAN bus. The device features two bi-directional SENT channels and a CAN bus interface. Fast, Short Serial, and Enhanced Serial message formats are supported.

For More information:

SAE-J2716-SENT-CAN-Interface-Data-Sheet

• SENT-to-CAN Gateway
• SENT logger/tester/simulator
• Two independent SAE J2716 (SENT) channel
• Each channel configurable as RX or TX
• Supports Fast and Slow Messages according to SAE J2716:2016 (Fast, Short Serial, and Enhanced Serial)
• Supports SENT/SPC
• Configurable SENT channel parameters – Tick Time, Nibble Count
• 2 analogue output channels (12-bit DAC, 0-4,095 V)
• On-board remanent memory
• Intelligent message filtration
• 1x DSUB9F (CAN), 1x 8-pin terminal block
• Input power 9-30 V DC
• 4x LED (3x Status, 1x Power)
• 1x Reset switch
• 5V DC output with over-current protection
• Dimensions 108 x 54 x 30 mm
• Table or DIN-rail mount
• Hardware and firmware customization on request

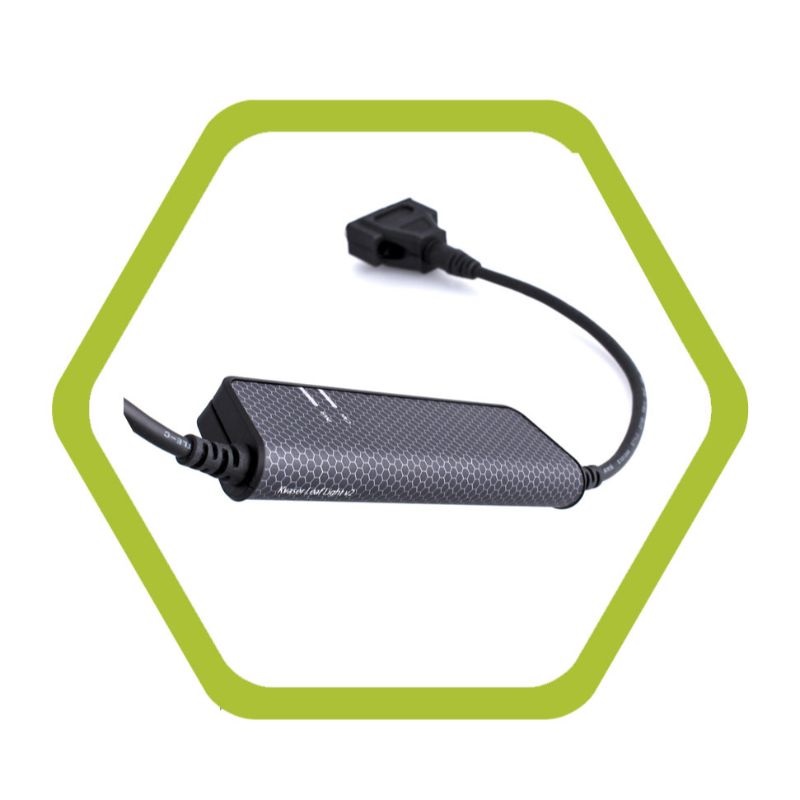

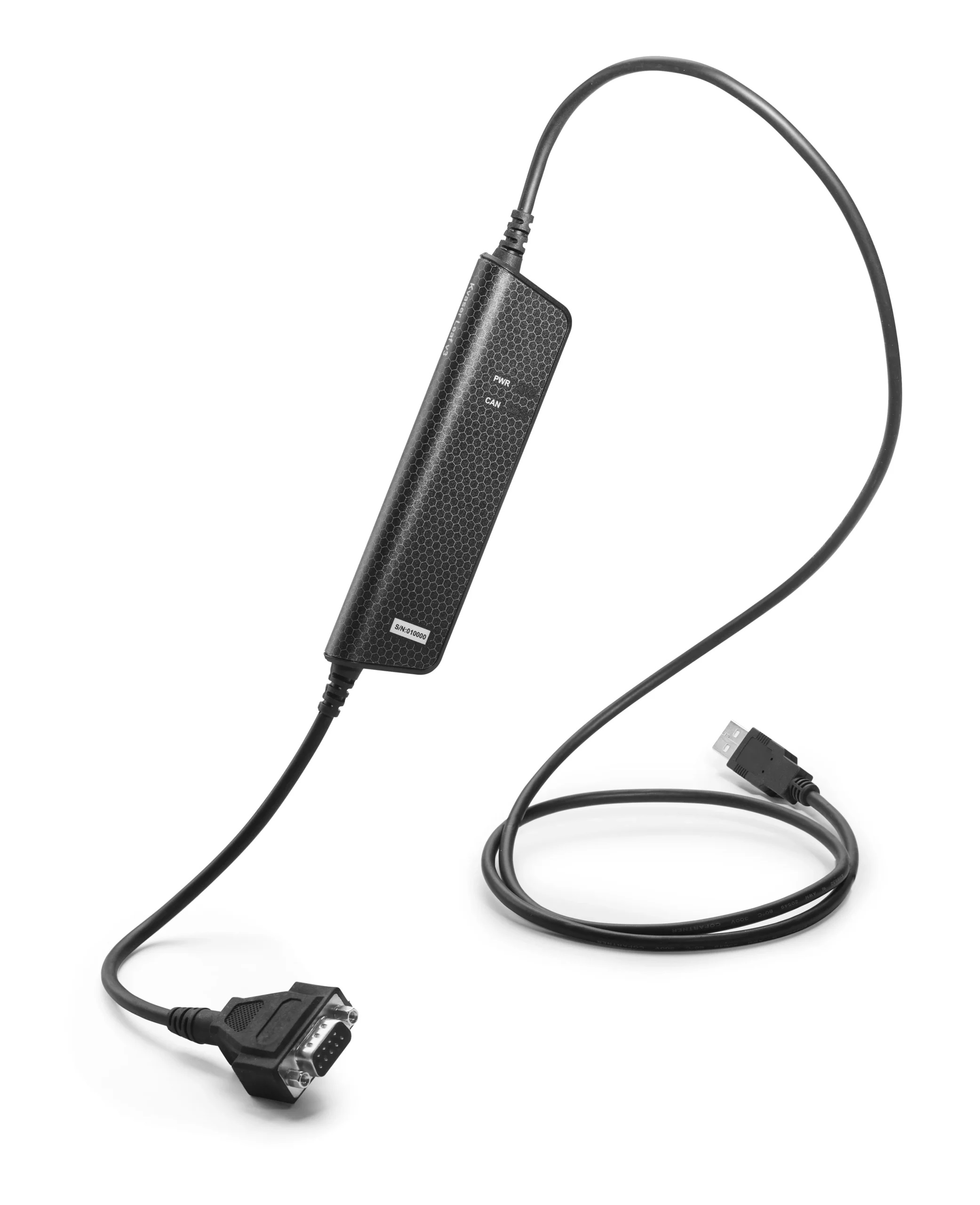

Kvaser Leaf v3

The Kvaser Leaf v3 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network in order to monitor and transmit CAN and CAN FD data. With its standard USB 2.0 connector and 9-pin D-SUB connector, the Leaf v3's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications.

The Kvaser Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.


WCT Kit Bag small laptop

Neoprene bag for carrying your portable tech

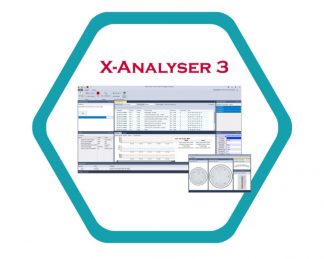

X-Analyser 3 ECO Single Channel

This is a basic CAN, CAN FD or LIN sniffer (depending upon which Kvaser interface you have) that comes free with any Kvaser interface purchase. It has all the capture, playback and transmit functions. The ECO does not have any CAN data base (dbc) or LDF capability. This is single channel only – dongled from the Kvaser interface serial number.

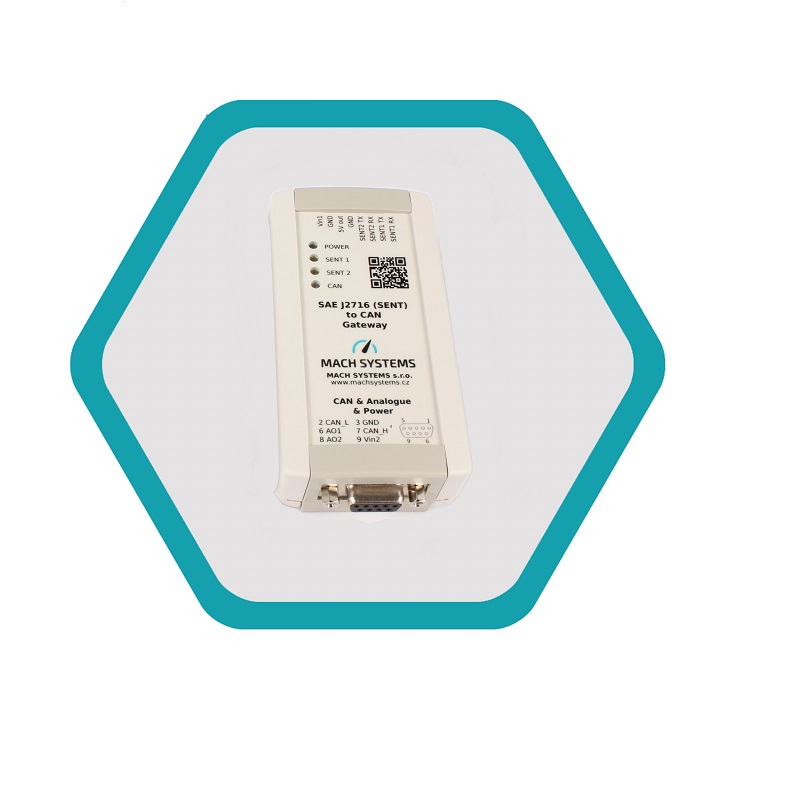

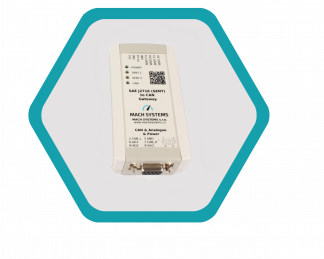

SAE J2716 (SENT) to CAN Gateway

A bus gateway featuring two bi-directional SENT (Single Edge Nibble Transmission) channels, two analogue output channels, and a CAN bus interface. The interface’s flexibility allows the user to use it as a PC interface / SENT data logger, a gateway for PLC or a test system, and generally for SENT communication monitoring and simulation. The analogue outputs offer the possibility to directly convert SENT data frame signals into an analogue voltage.
