Description

Commercial Vehicle Kit – This kit is a cost-effective way to purchase X-Analyser 3 Professional in package bundled with a CAN interface and an interface cable for most cars. The Commercial Vehicle Kit consists of:

• Kvaser CAN USB interface
• X-Analyser 3 Professional with Signals/CAN database editor and OBD capabilities. It also includes interpretation of Higher Layer Protocols (J1939, NMEA2000 and CANopen). Comes with J1939 and NMEA2000 CAN databases
• D9 to OBD adaptor cable.
• Carry case

The price of the kit reflects a discounted means of purchasing the below items individually.

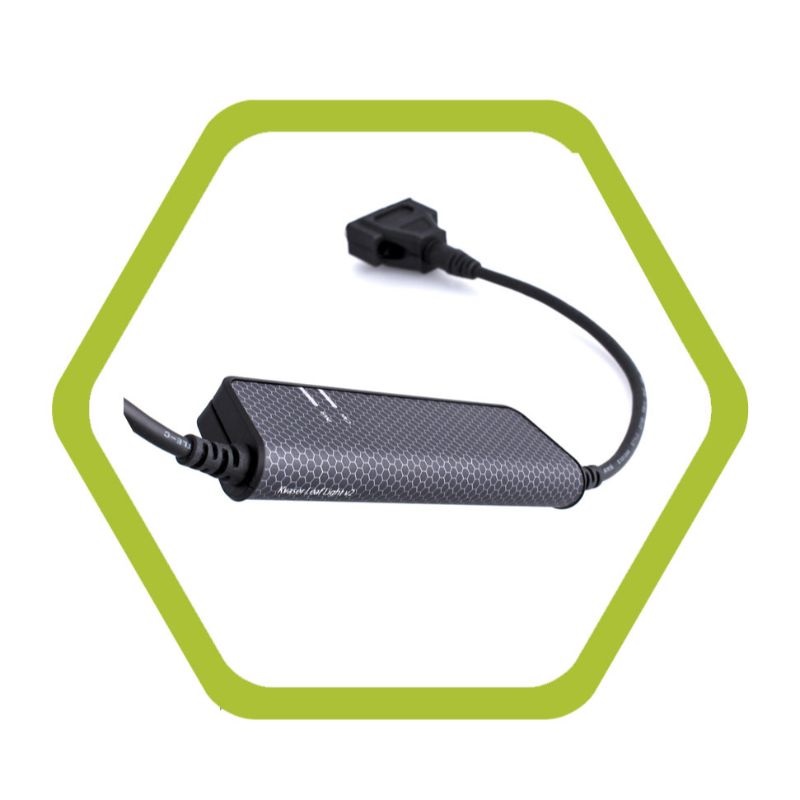

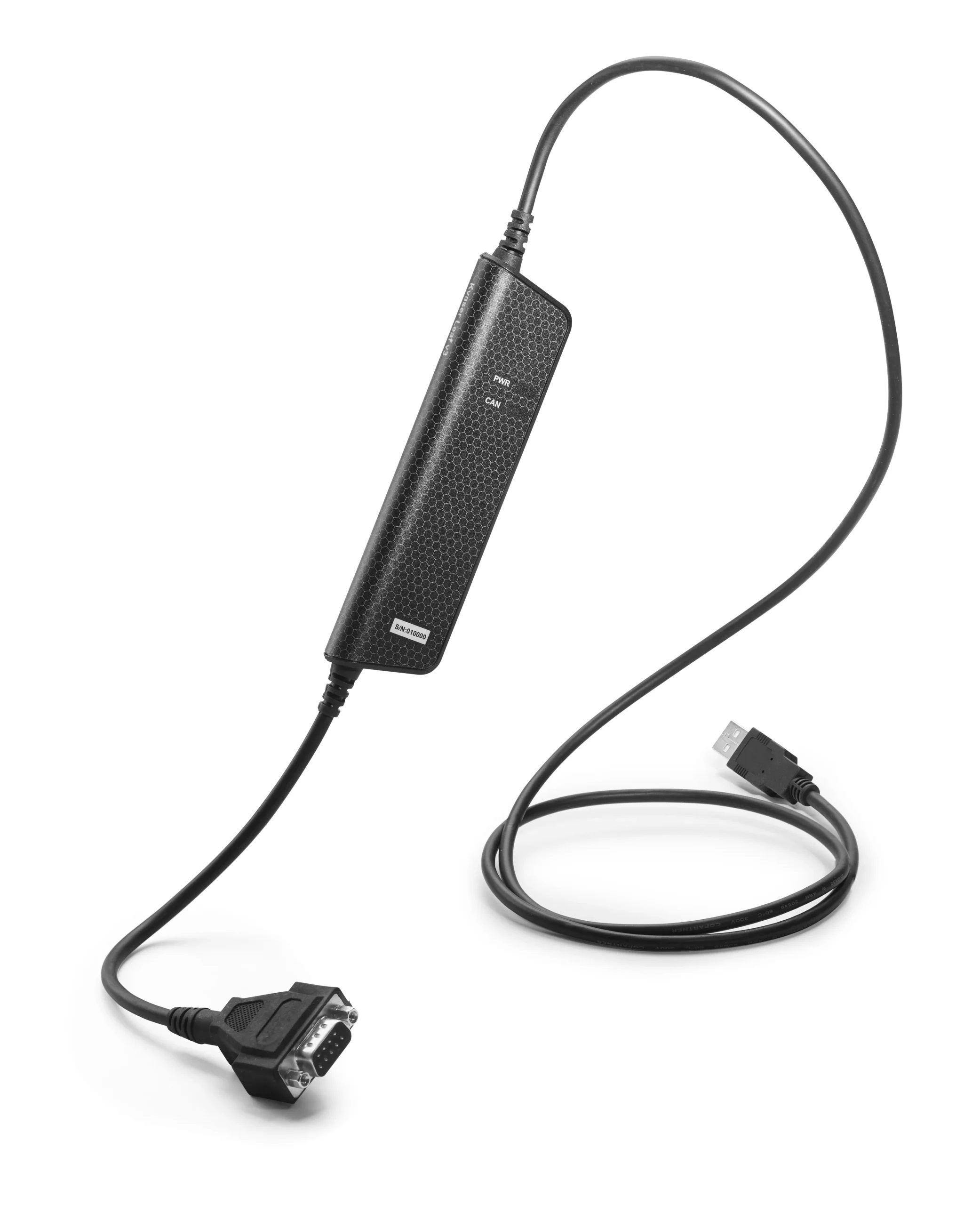

Kvaser Leaf v3

The Kvaser Leaf v3 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network in order to monitor and transmit CAN and CAN FD data. With its standard USB 2.0 connector and 9-pin D-SUB connector, the Leaf v3's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications.

The Kvaser Leaf v3 can handle up to 20 000 messages per second, each time-stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard.

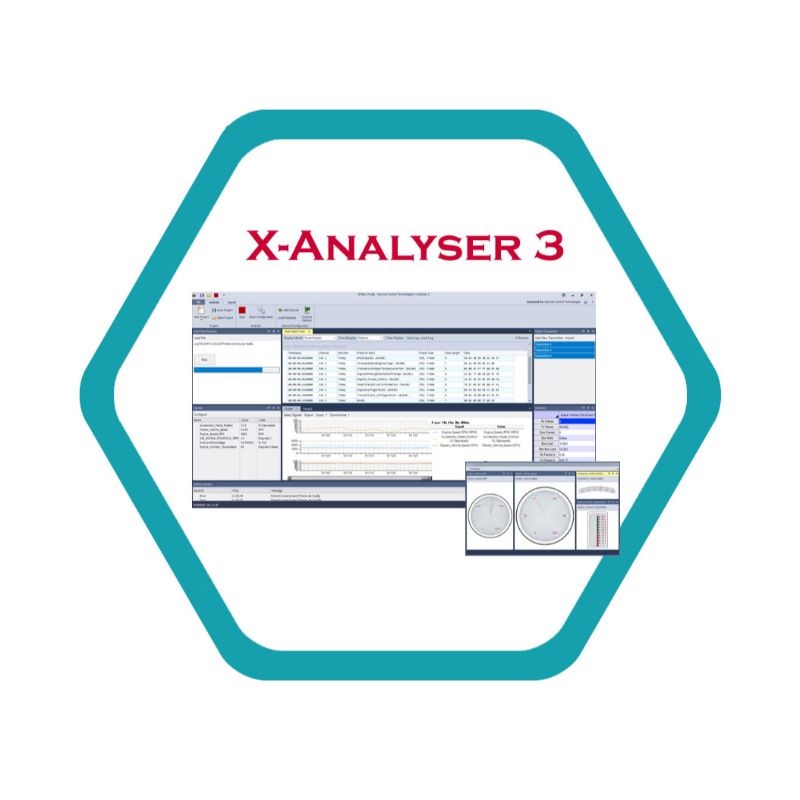

X-Analyser 3 Professional (Multiple Channel)

X-Analyser 3 Professional (Multiple Channel) – This has all the features of the Standard with addition of interpretation of standard Higher Layer Protocols - J1939, NMEA2000 and CANopen. Comes with J1939 and NMEA2000 CAN data bases (dbc). The Professional is Multiple Channels (CAN and/or LIN) – dongled from 1 Kvaser interface serial number, any number of other interfaces can be connected.


WCT Kit Bag small laptop

Neoprene bag for carrying your portable tech

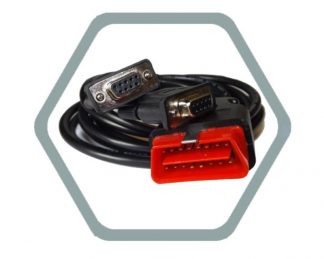

OBDII Male to 2 x DSUB Female

OBDII Male to 2 x DSUB Female Connector/Adaptor – Normally supplied with one of the Kits listed. This adaptor cable can be purchased separately. Allows connection to a standard J1962 OBD socket in a vehicle to a CAN interface e.g. Kvaser. An extra Dsub9 connector is supplied for use by a scan tool or adaption to connect to an Oscilloscope.1 x OBD to 2 x Dsub9 – 2 metre cable.

Note:
