Product Description
Description

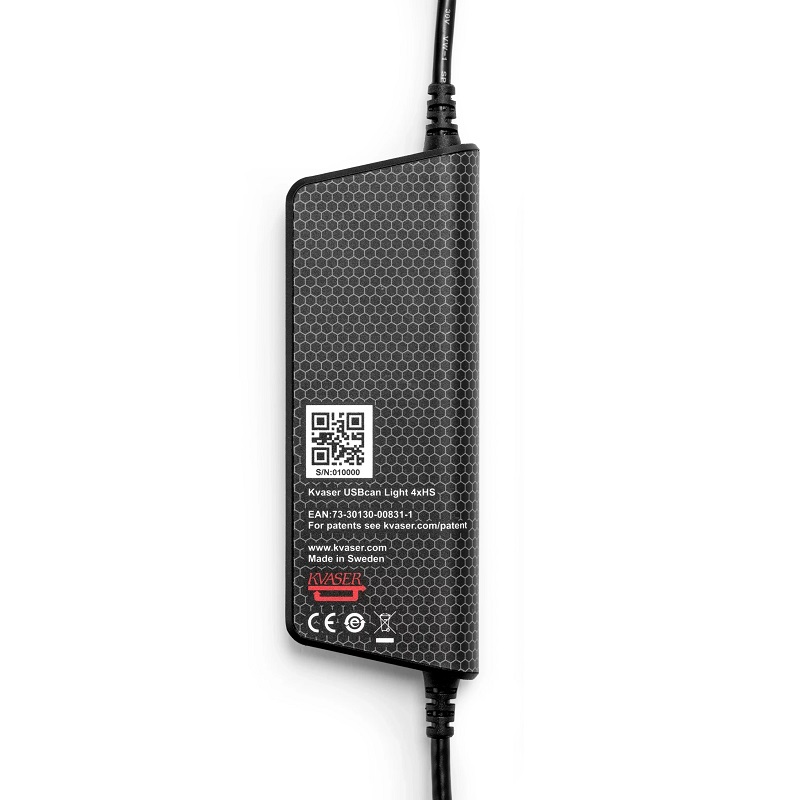

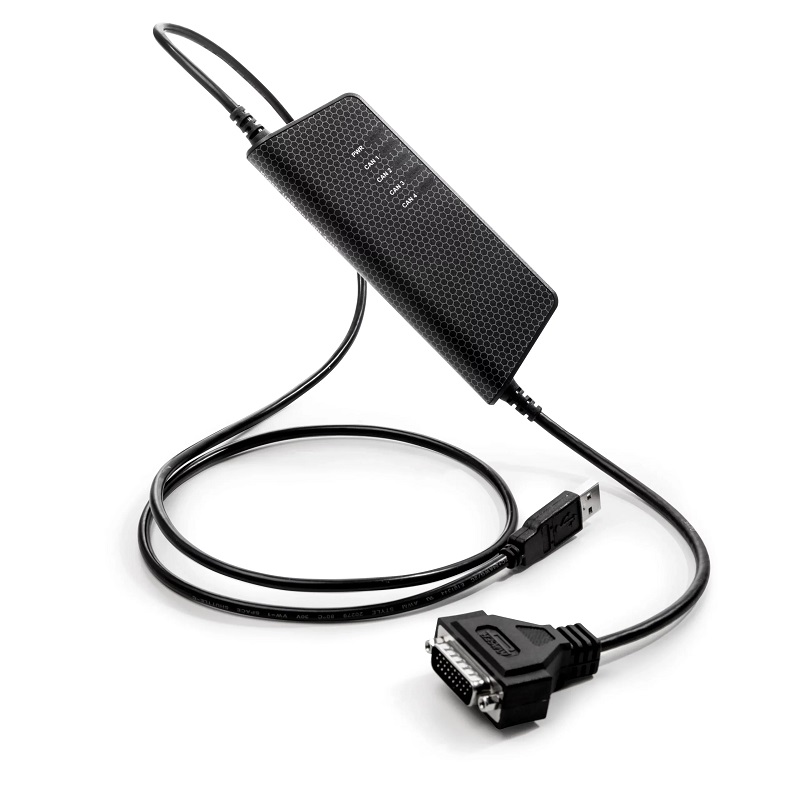

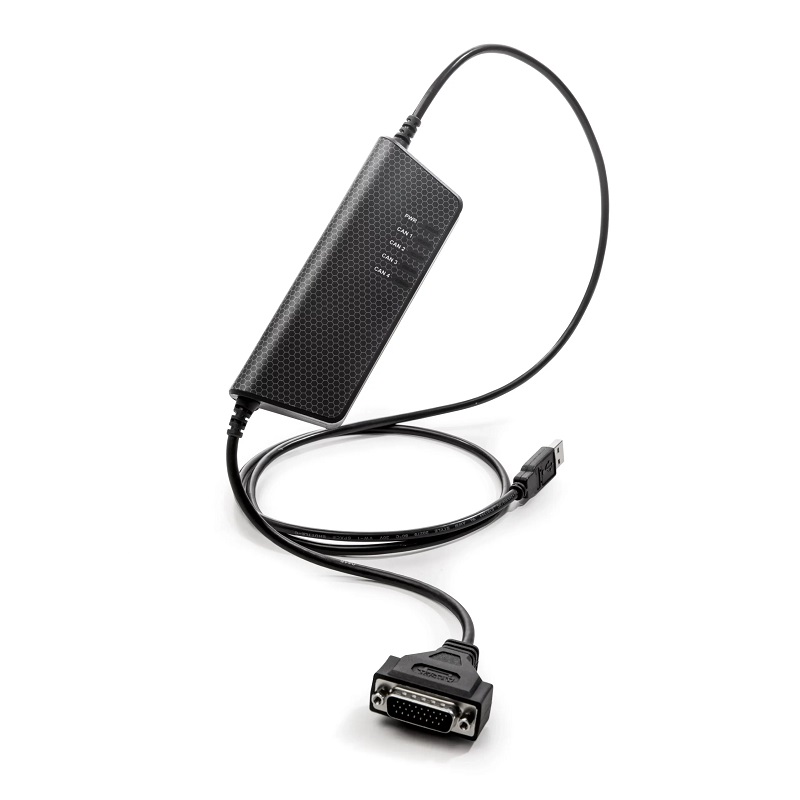

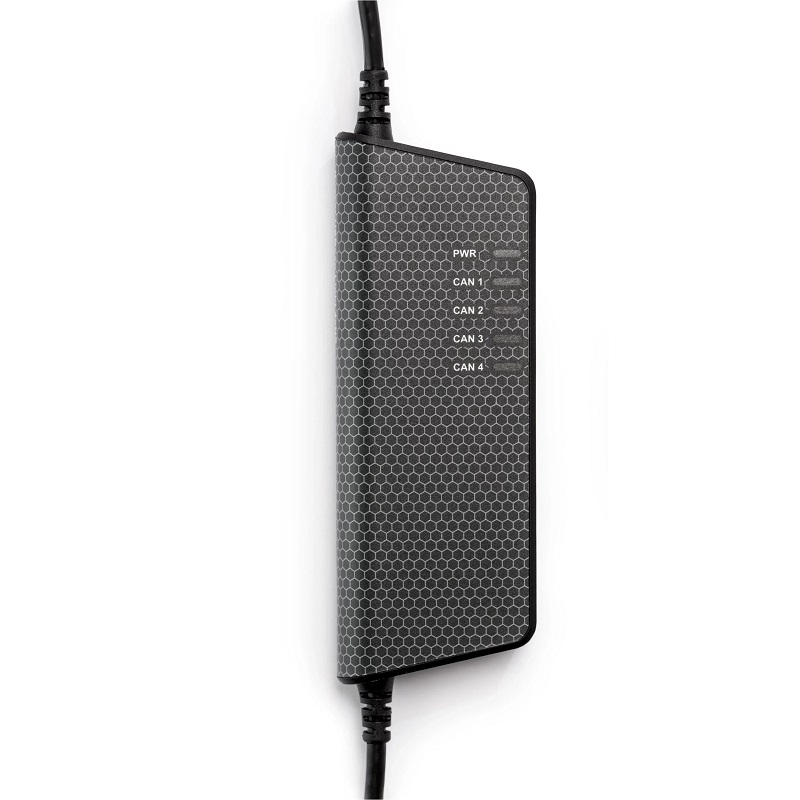

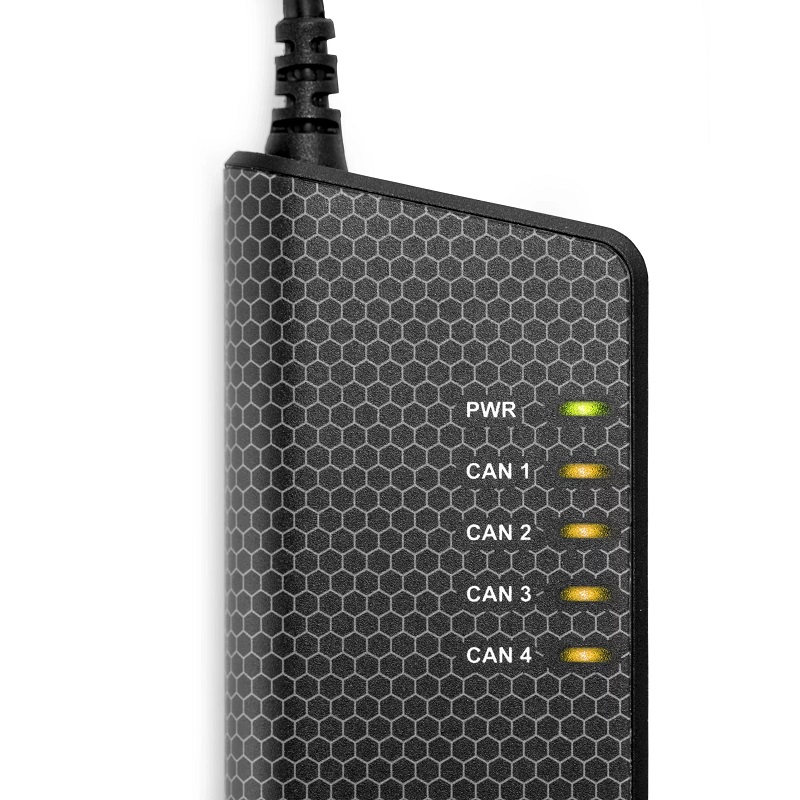

The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.

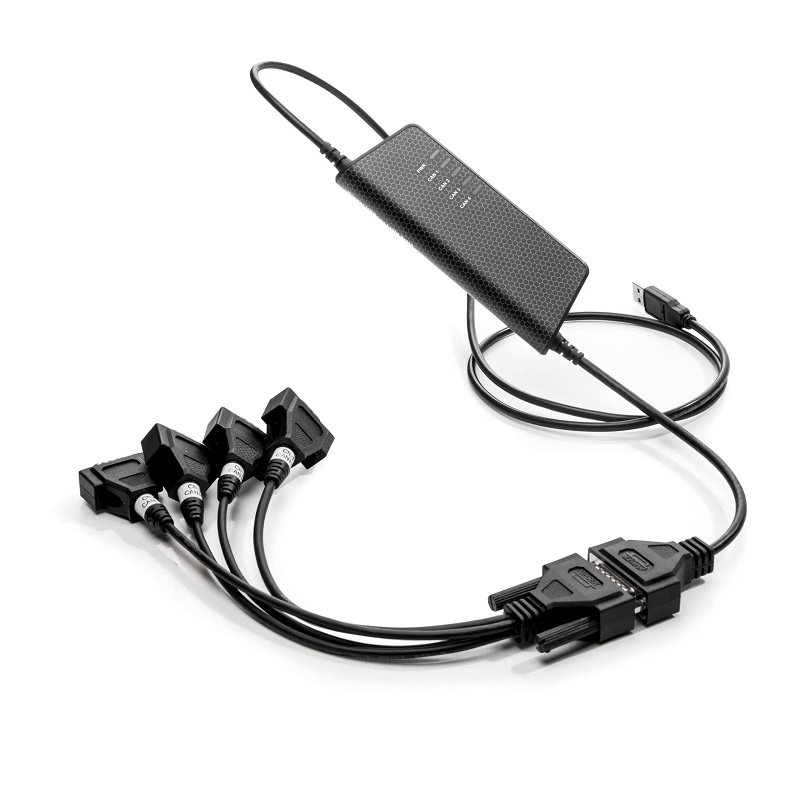

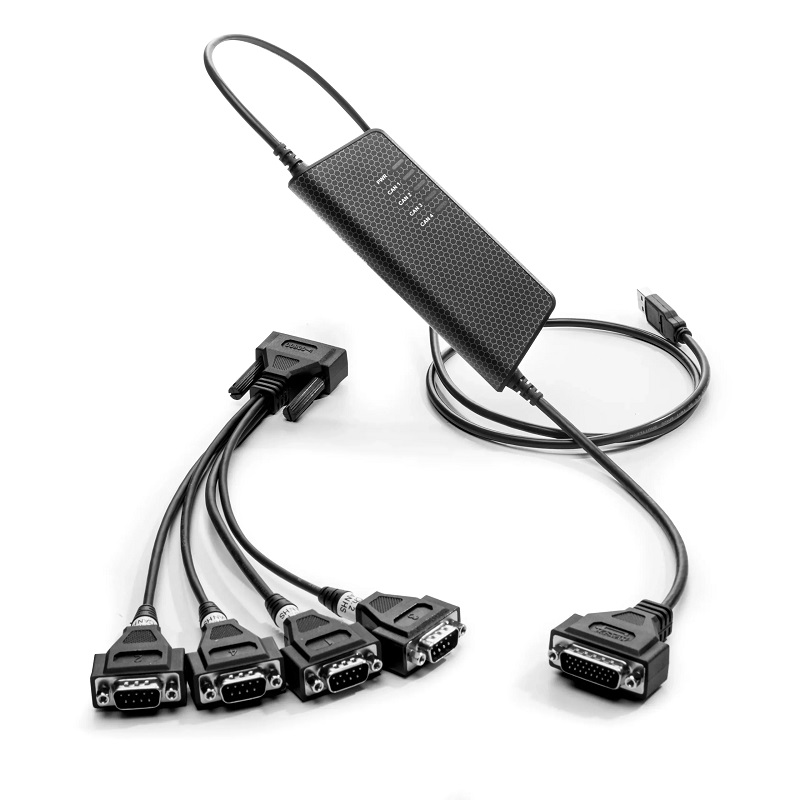

Includes a 4-channel breakout cable: HD26 to 4xDS9 Splitter cable 00830-4
Major Features
- Low cost USB CAN interface.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power is taken from the USB bus.
- Galvanic isolation.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Simultaneous operation of multiple devices.
- Includes 4 channel breakout cable.
- Support for SocketCAN
Specifications
| Bit Rate (kbps) | 50 - 1000 kbps |
|---|---|
| Height | 20 mm |
| Length | 170 mm |
| Width | 50 mm |
| Weight | 144 g |
| Messages Per Second Receive | 8000 mps |
| Messages Per Second Sending | 8000 mps |
| Connectors | 26-pin HD D-SUB |
| Interfaces PC | USB |
| Timestamp Resolution (µs) | 100 µs |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP40 |
| Silent Mode | No |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -20 °C to 70 °C |
| t script | No |
| Categories | Interfaces, Hardware |
| Channels | 4 |
