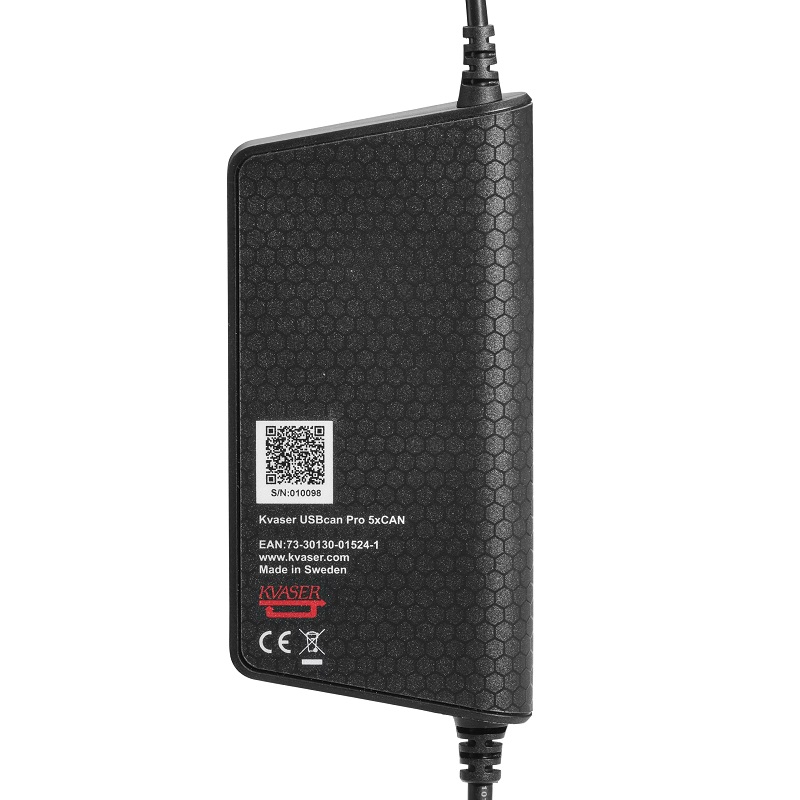

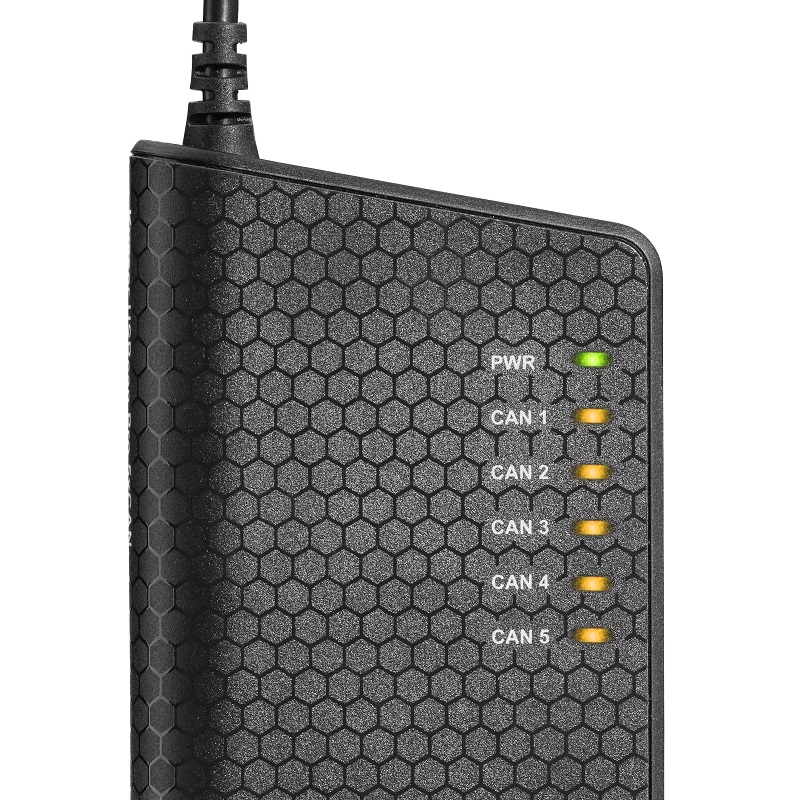

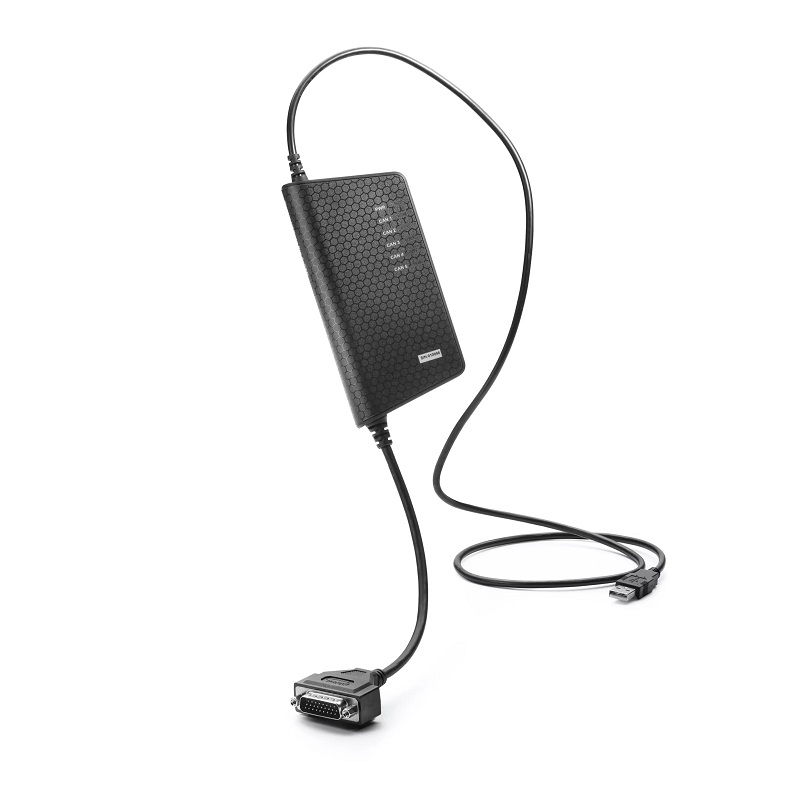

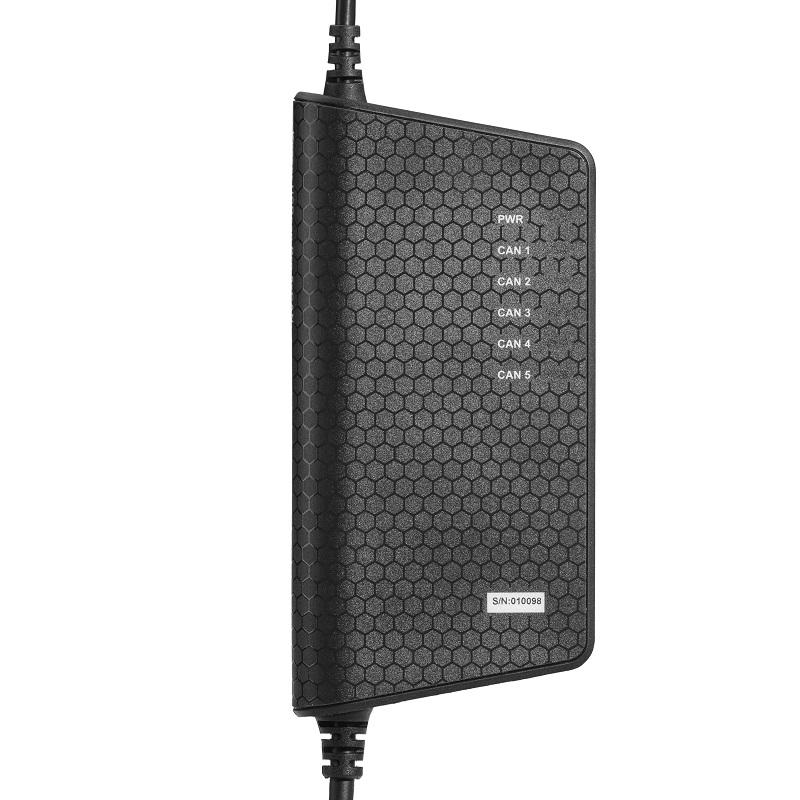

Kvaser USBcan Pro 5xCAN
Part No.: MPKV-01524-1
Compact, multi-channel USB to CAN interface supporting both Classic CAN and CAN FD with high performance and precision.
Product Description
Description
The Kvaser USBcan Pro 5xCAN is a compact, portable, and fully programmable USB-CAN interface. Supporting both Classic CAN and high-speed CAN FD (up to 8 Mbit/s) with high-precision timestamps, it ensures seamless multi-channel performance for analysis and real-time data handling. With automatic time synchronization and full compatibility with Kvaser CANlib, it integrates effortlessly with various applications.

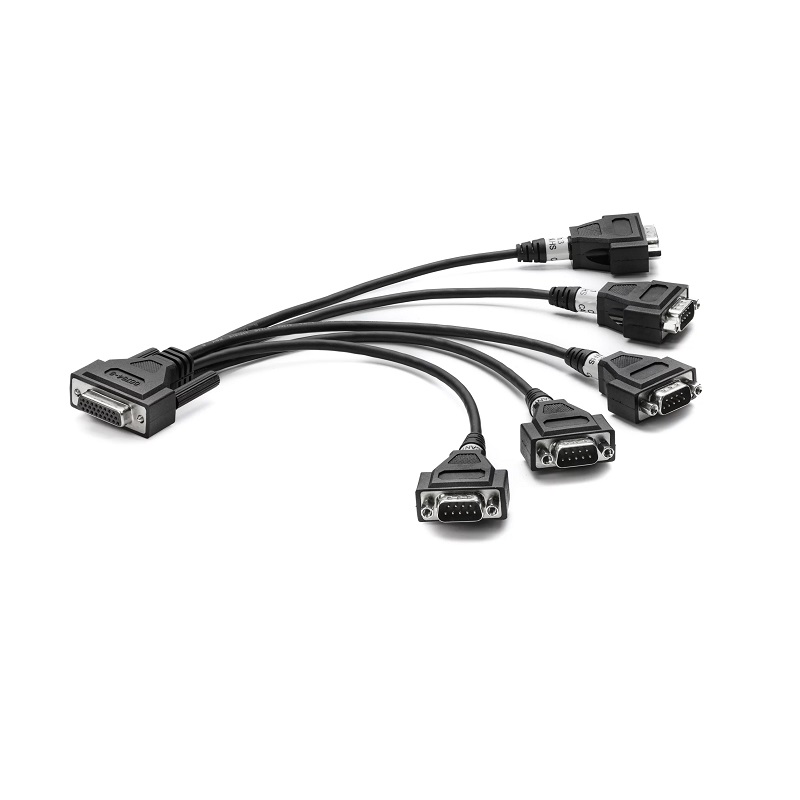

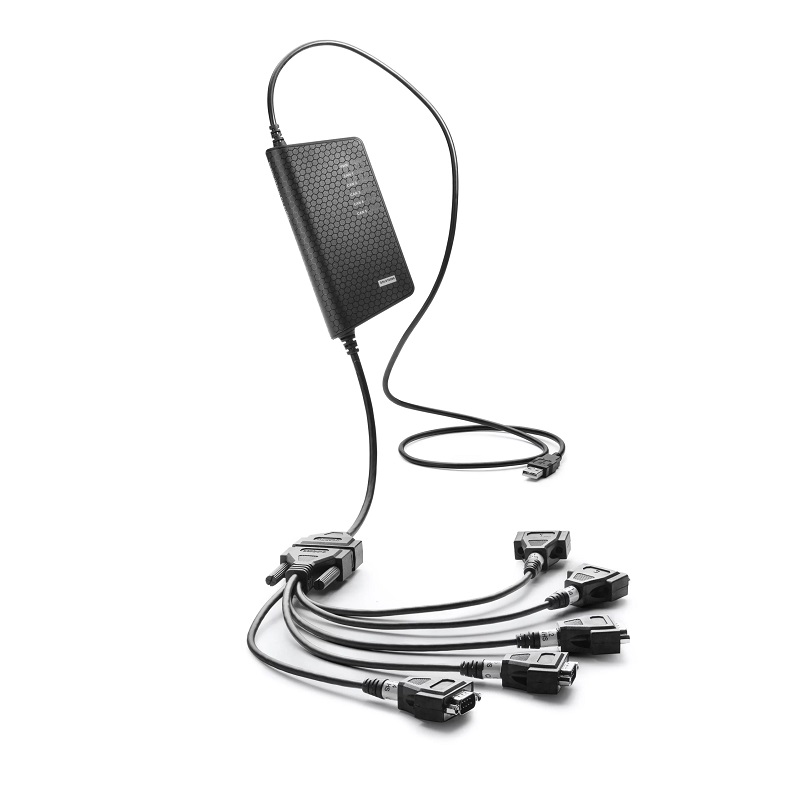

Includes 5 channel breakout cable: HD26 to 5xDS9 Splitter cable 00794-9
Major Features
- USB CAN interface with Kvaser t-script.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Power is taken from the USB port, or from the USB port together with the CAN connector. External power is recommended when using all 5 channels simultaneously.
- 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Kvaser MagiSync – automatic time synchronization.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Includes 5 channel breakout cable.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application.
Specifications
| Bit Rate (kbps) | 20 - 1000 kbps |
|---|---|
| Height | 23 mm |
| Length | 170 mm |
| Width | 68 mm |
| Weight | 178 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Connectors | 26-pin HD D-SUB |
| Interfaces PC | USB |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Timestamp Resolution (µs) | 1 µs |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP40 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | Yes |
| Categories | Hardware, Interfaces, CAN |
| Channels | 5 |
