Kvaser USBcan Pro 2xHS v2 CB
Part No.: MPKV-00877-9
Professional dual channel USB-to-CAN/CAN FD interface with t-script, circuit board only.
Product Description
Description

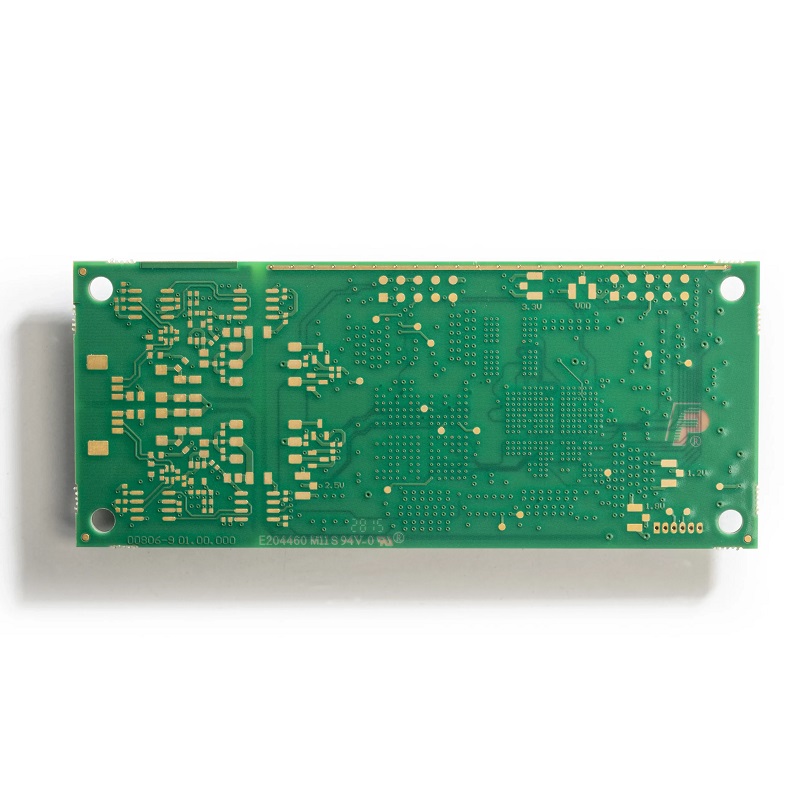

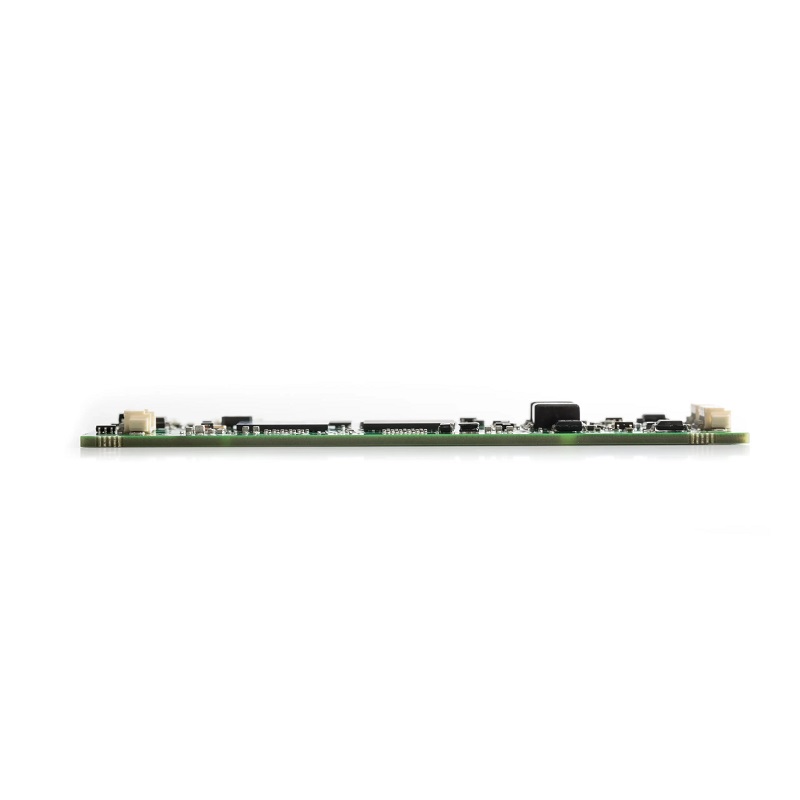

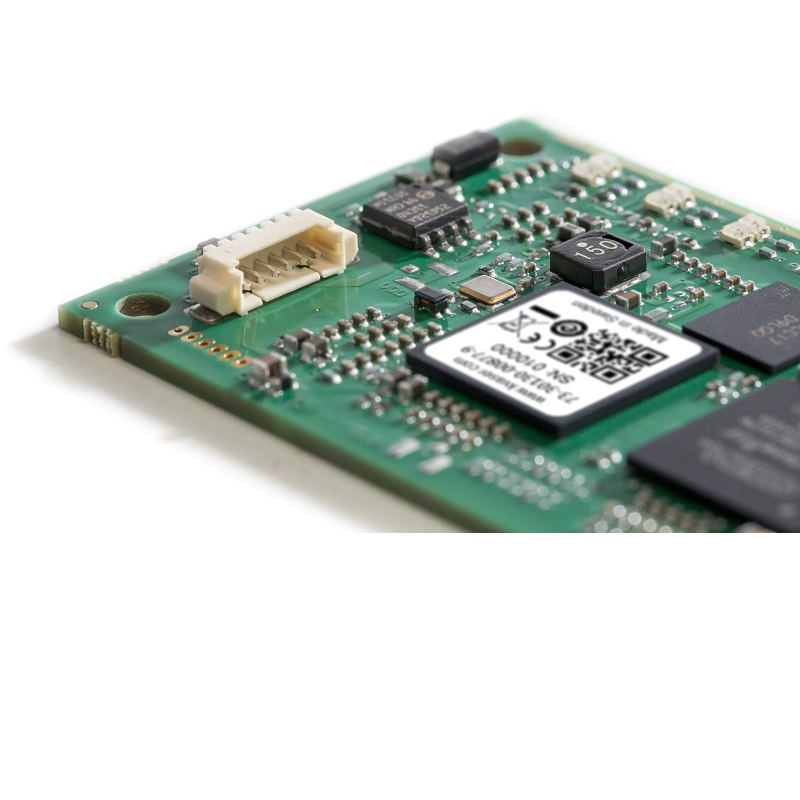

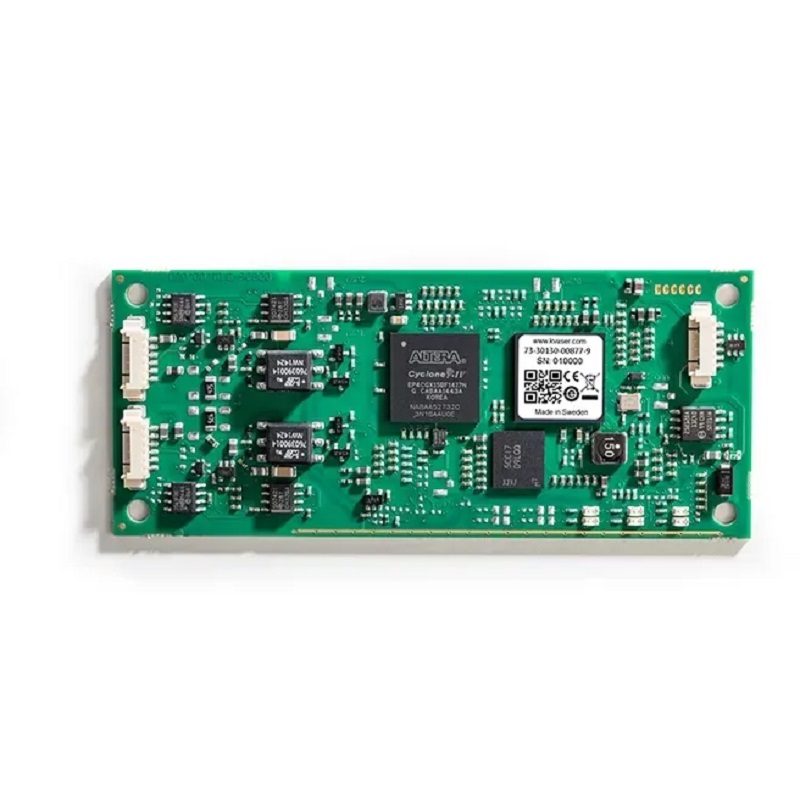

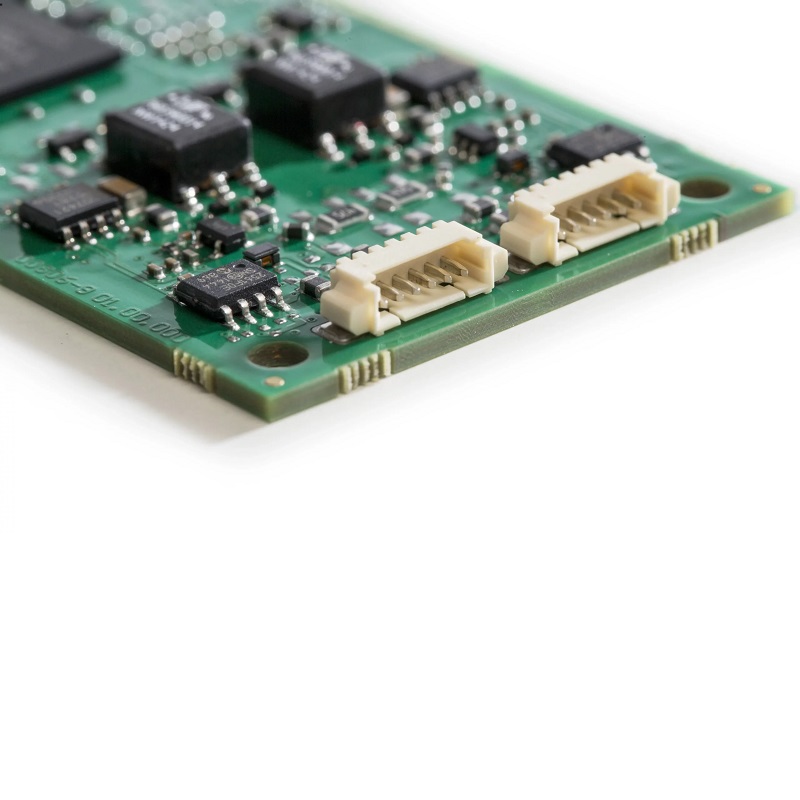

The USBcan Pro 2xHS v2 CB is a bare circuit board version of Kvaser's USBcan Pro 2xHS v2 dual channel CAN or CAN FD interface with scripting capability. The USBcan Pro 2xHS v2 CB is supplied 'bare board' i.e. without a housing, and can thus be built into any system. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar for getting started with programming the device.
Major Features
- Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Power derived from the USB connection, CAN or an in-built power supply.
- Galvanic isolation.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
- Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
- Simultaneous operation of multiple devices.
Specifications
| Bit Rate (kbps) | 50 - 1000 kbps |
|---|---|
| Height | 6 mm |
| Length | 100 mm |
| Width | 42 mm |
| Weight | 20 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Connectors | MOLEX 6-PIN |
| Interfaces PC | USB |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Timestamp Resolution (µs) | 1 µs |
| Error Counters Reading | Yes |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP00 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | Yes |
| Categories | Interfaces, Hardware |
| Channels | 2 |
