Kvaser PCIEcan 2xCAN v3
Part No.: MPKV-01432-9
CAN multi-channel real time CAN interface with two CAN/CAN FD channels.
Product Description
Description

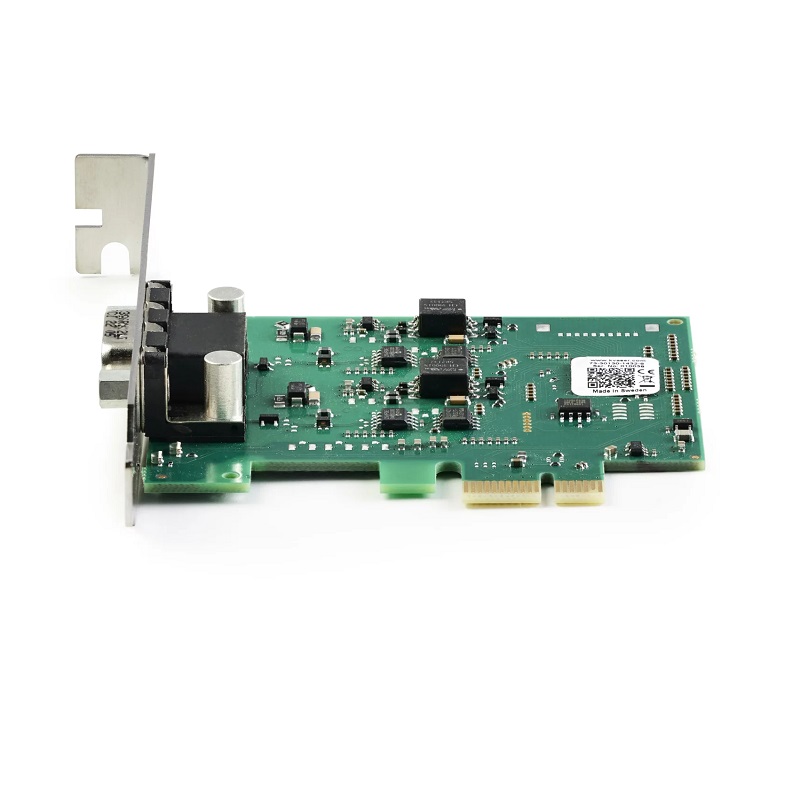

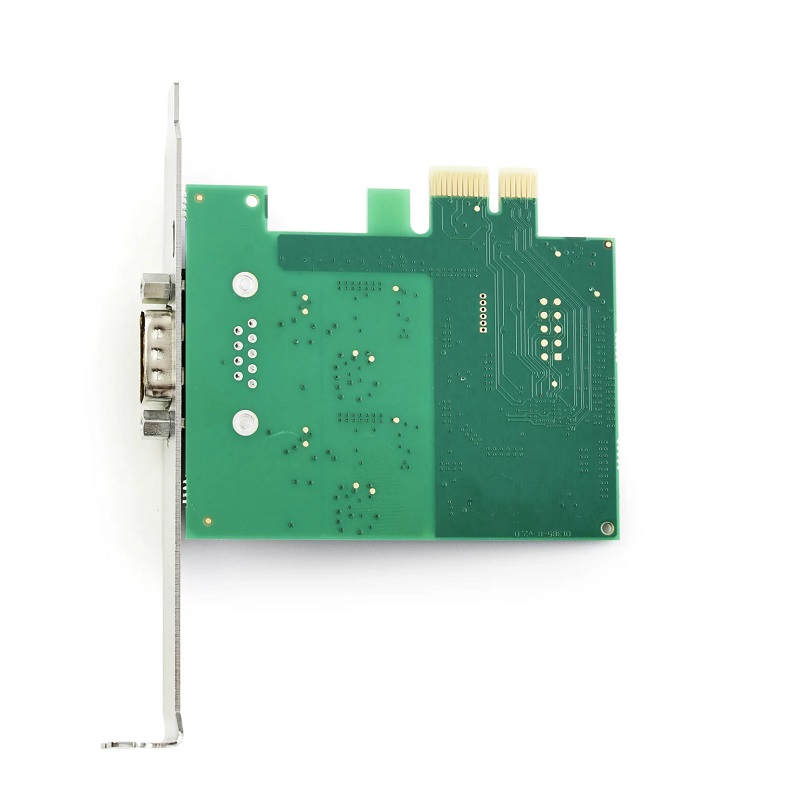

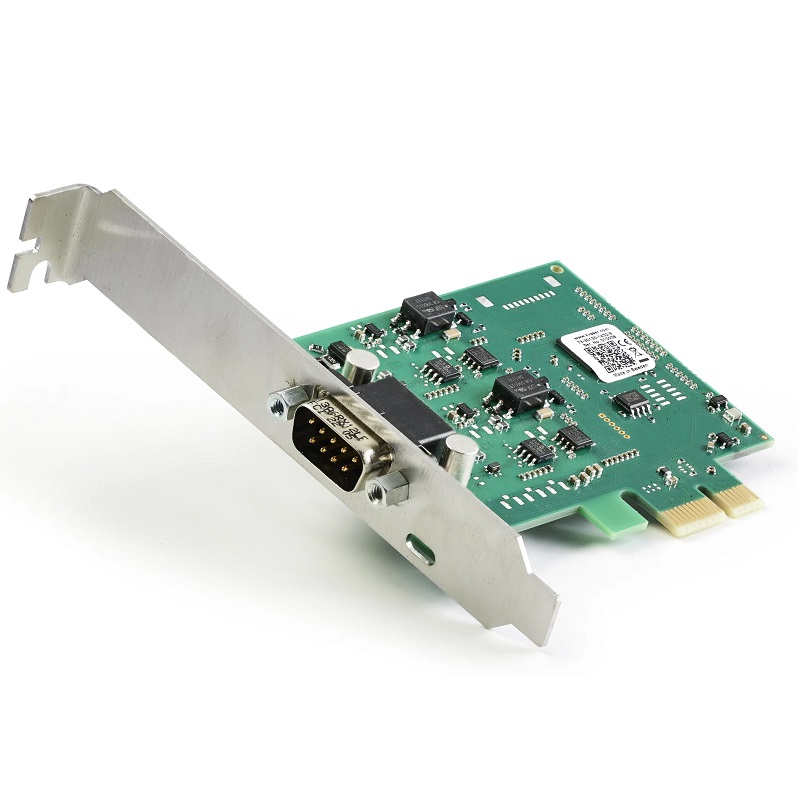

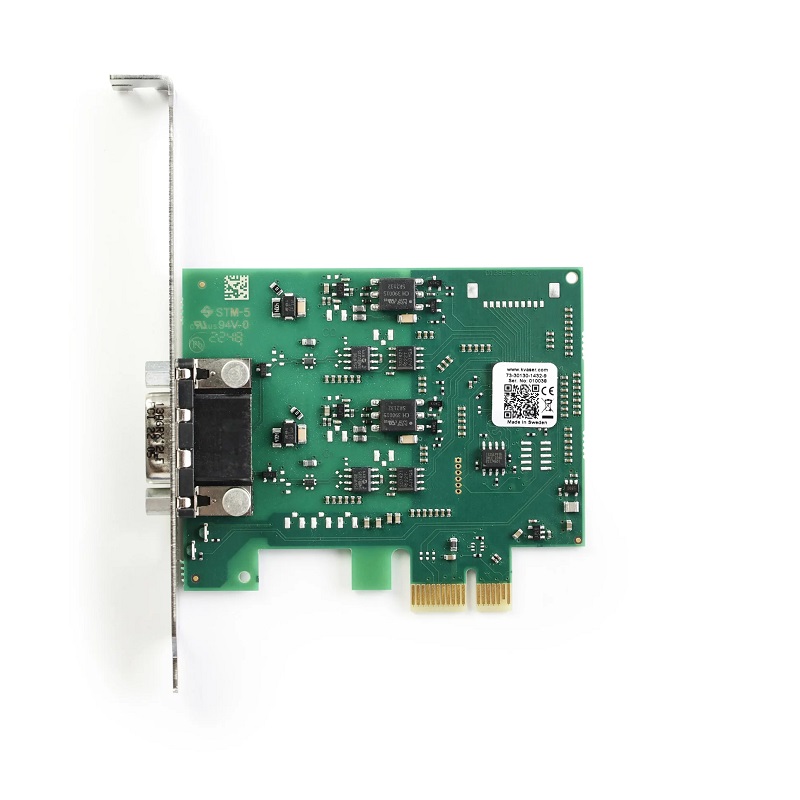

Kvaser PCIEcan 2xCAN v3 is a small, yet advanced, CAN multi-channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 2xCAN v3 is compatible with applications that use Kvaser‘s CANlib.

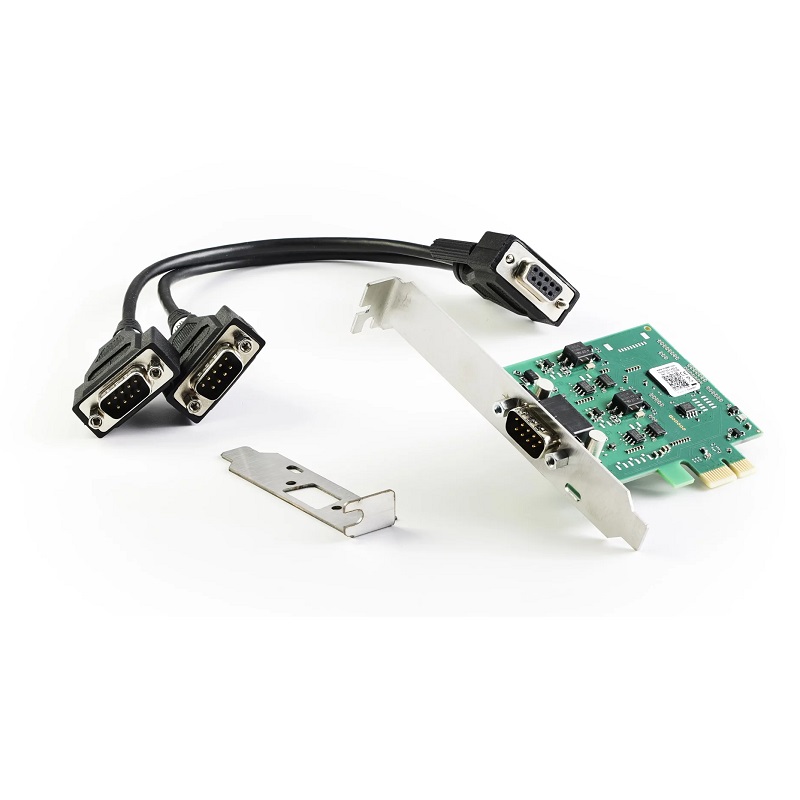

A low-profile and a high-profile bracket are included, together with a 2-channel breakout cable.
Major Features
- PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Support for SocketCAN.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
- Low profile board, includes low and high profile brackets.
Specifications
| Bit Rate (kbps) | 20 - 1000 kbps |
|---|---|
| Length | 86 mm |
| Width | 69 mm |
| Weight | 49 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Connectors | DSUB 9 |
| Interfaces PC | PCI Express |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Timestamp Resolution (µs) | 1 µs |
| Error Counters Reading | Yes |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP00 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | No |
| Categories | Interfaces, Hardware, CAN |
| Channels | 2 |
