Kvaser Mini PCI Express 2xHS
Part No.: MPKV-00743-7
Dual channel Mini PCI Express CAN interface; PC communication over USB system bus.
Product Description
Description

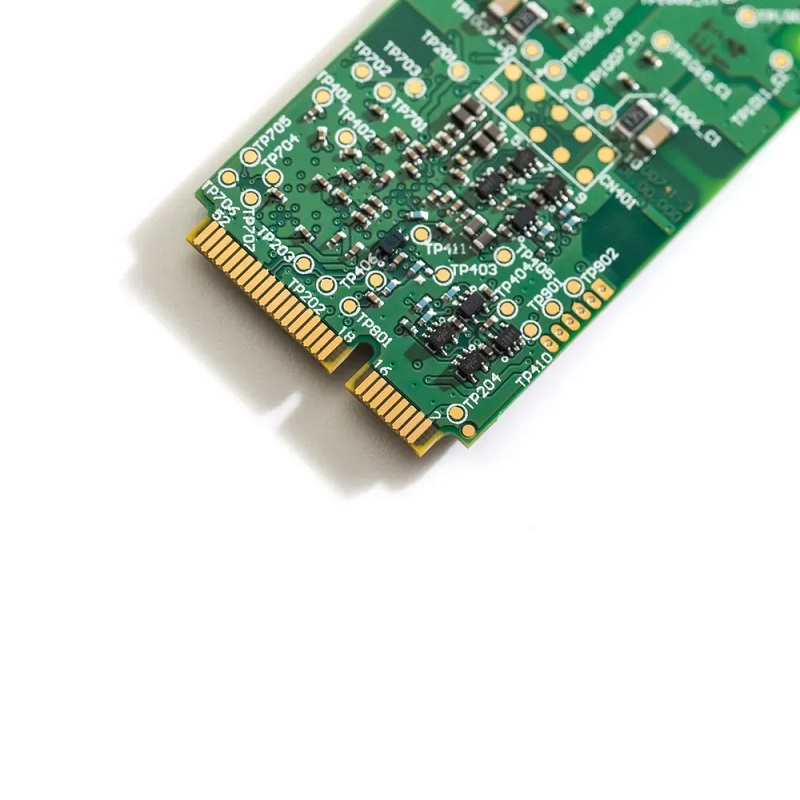

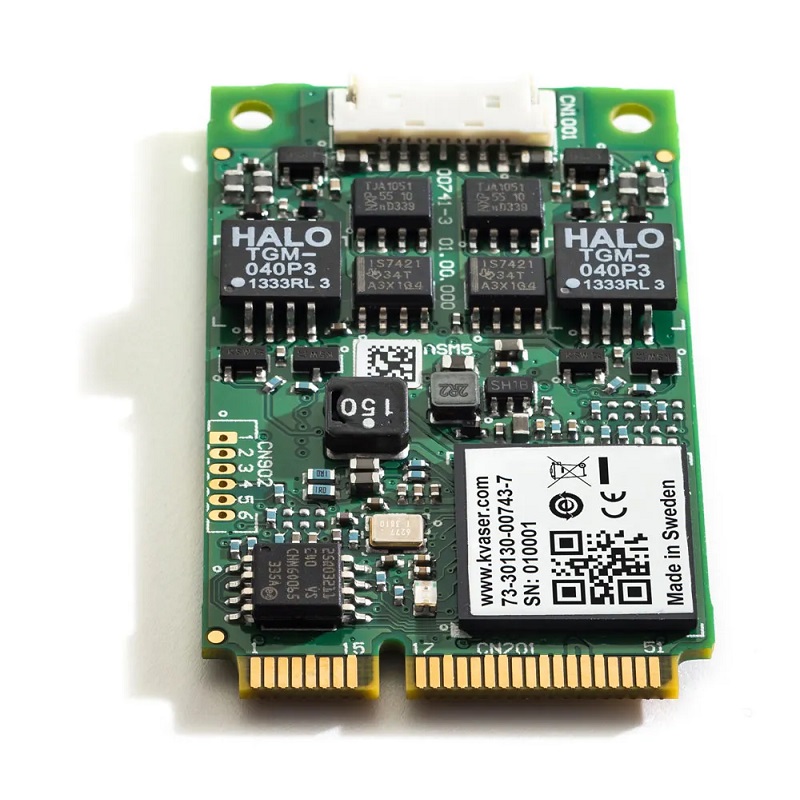

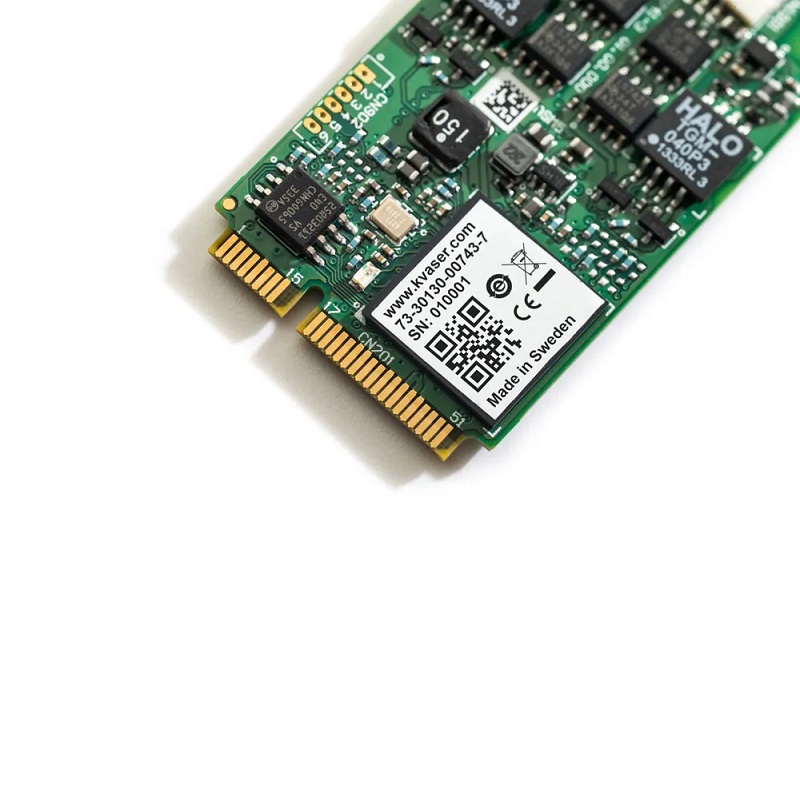

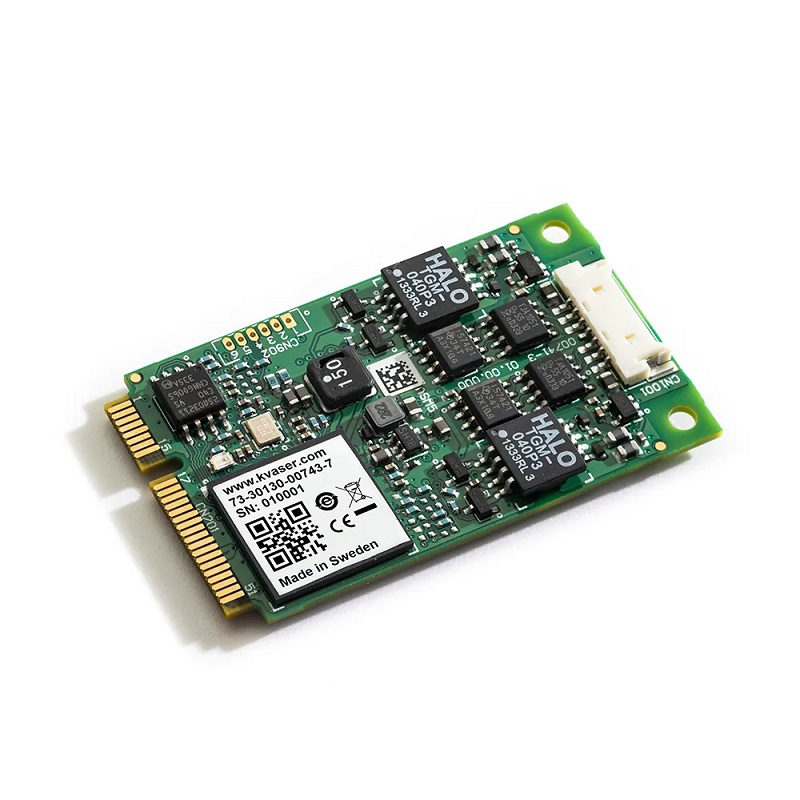

The Kvaser Mini PCI Express 2xHS is a dual channel Mini PCI Express CAN interface with PC communication over the USB 2.0 system bus. Measuring 30 x 51 mm, this highly integrated CAN (controller area network) add-on board adds two high speed CAN channels to any standard computer board with Mini PCI Express capability.
Offering silent mode, error frame detection, and an on-board buffer, the small form factor board fits embedded data acquisition systems and is particularly suitable for fleet management applications.

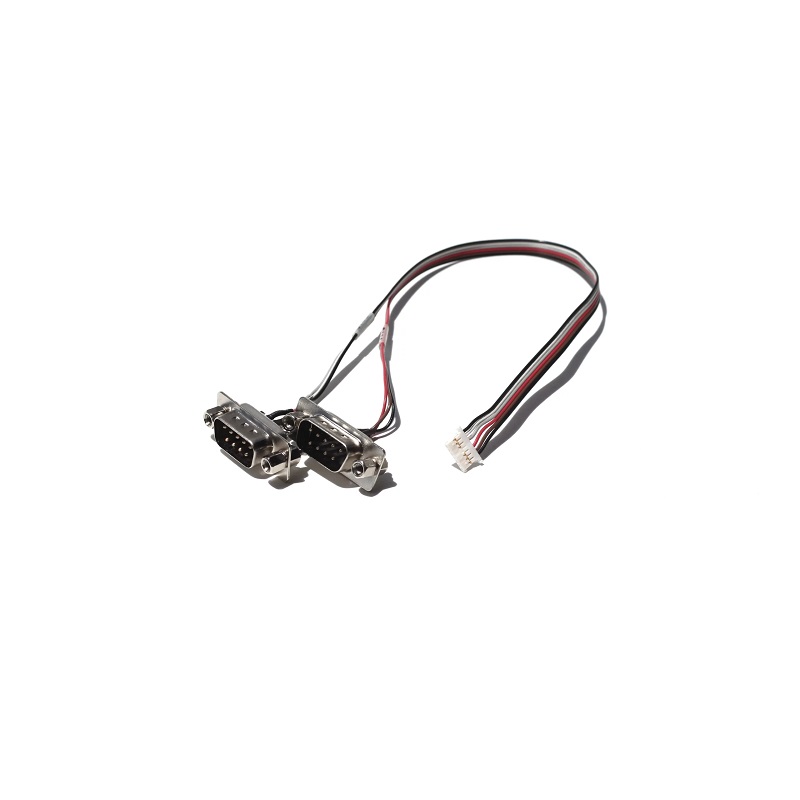

A 2xDS9 breakout cable is included.
Major Features
- Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
- Time stamp accuracy is 25 µs.
- Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.

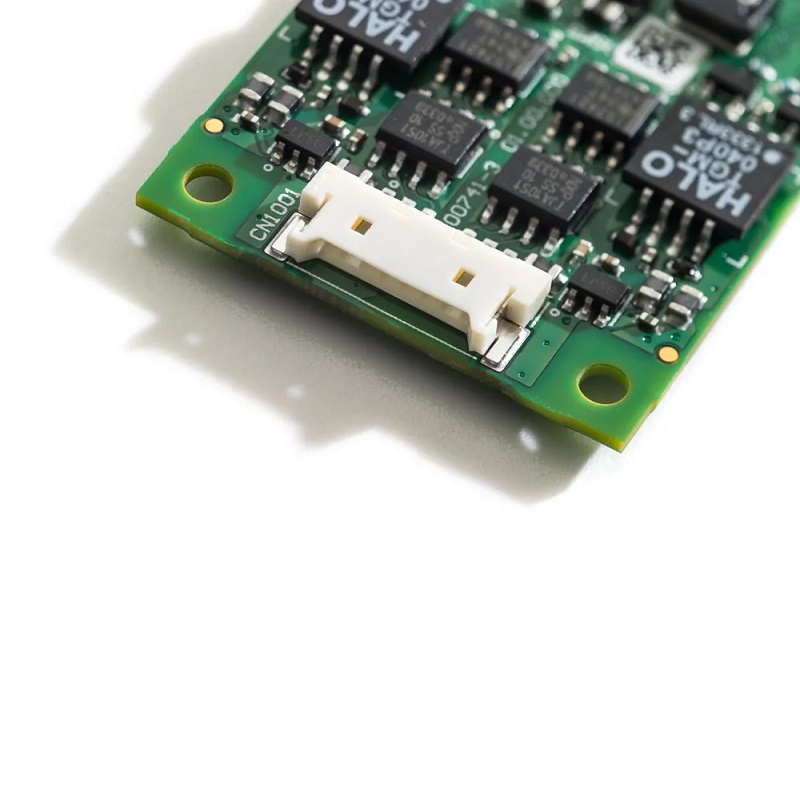

- A 7 pin Molex connector provides dual CAN channel access.
- Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
- Operates over the industrial temperature range of -40 to +85°C.
- Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
- Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
- Support for SocketCAN
- Includes Molex to DSUB9 cable adapter.
Specifications
| Bit Rate (kbps) | 40 - 1000 kbps |
|---|---|
| Height | 5 mm |
| Length | 51 mm |
| Width | 30 mm |
| Weight | 6 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 18000 mps |
| Connectors | Molex 53780 PanelMate TM |
| Interfaces PC | Mini PCI Express |
| Timestamp Resolution (µs) | 25 µs |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP00 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | No |
| Categories | Interfaces, Hardware |
| Channels | 2 |
