Kvaser Mini PCI Express 1xCAN v3
Part No.: MPKV-01420-6
Real time CAN interface with a single CAN/CAN FD channel.
Product Description
Description

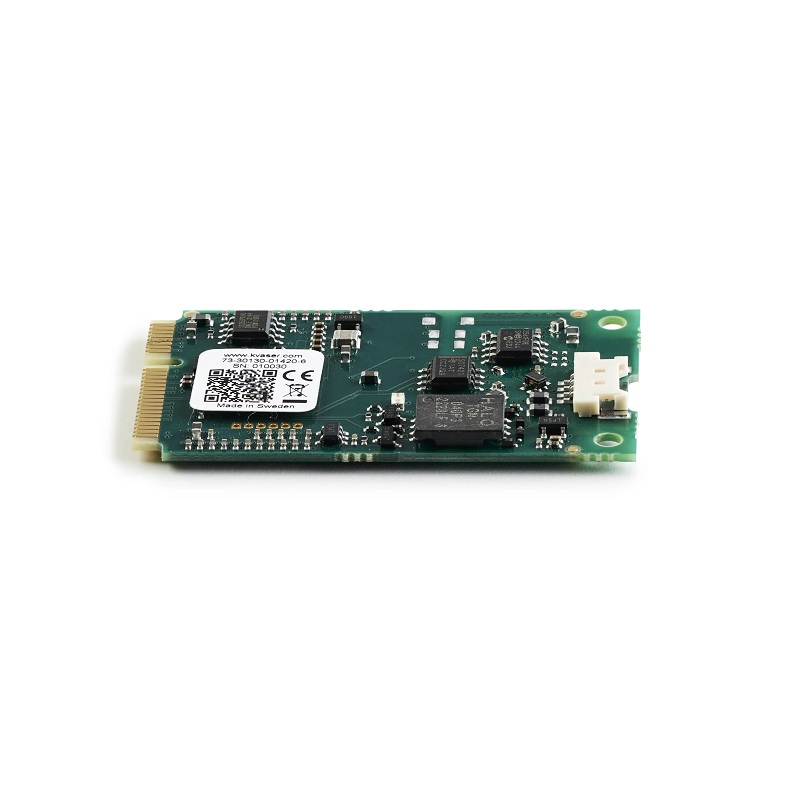

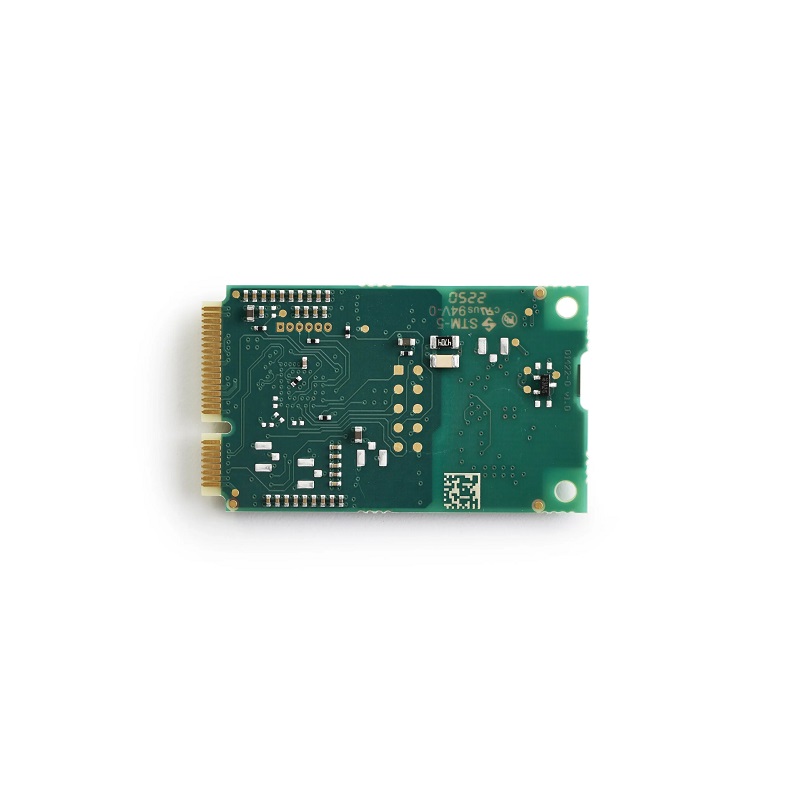

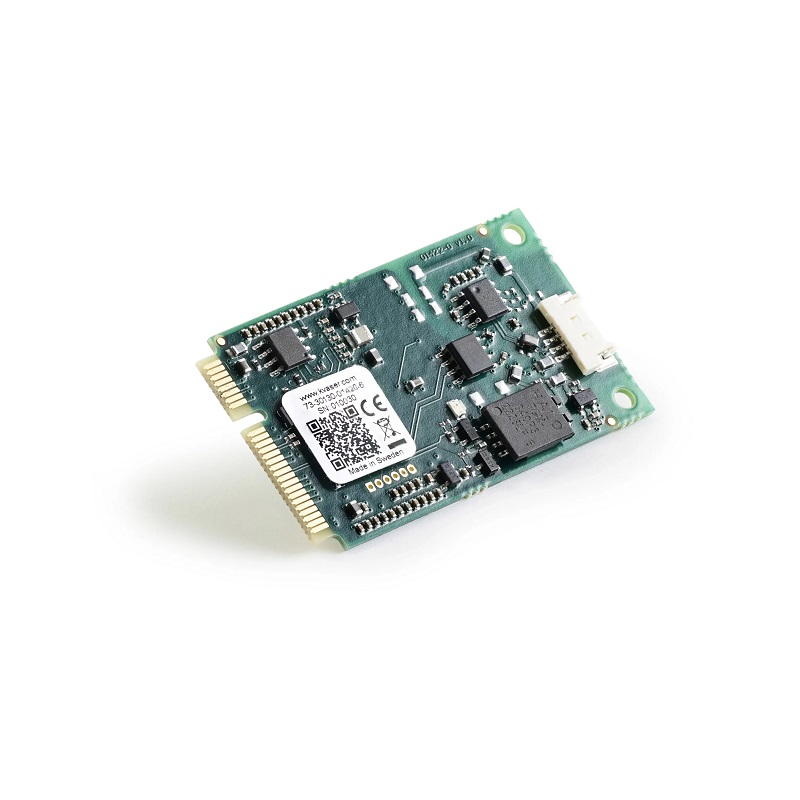

Kvaser Mini PCI Express 1xCAN v3 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser Mini PCI Express 1xCAN v3 is compatible with applications that use Kvaser‘s CANlib.

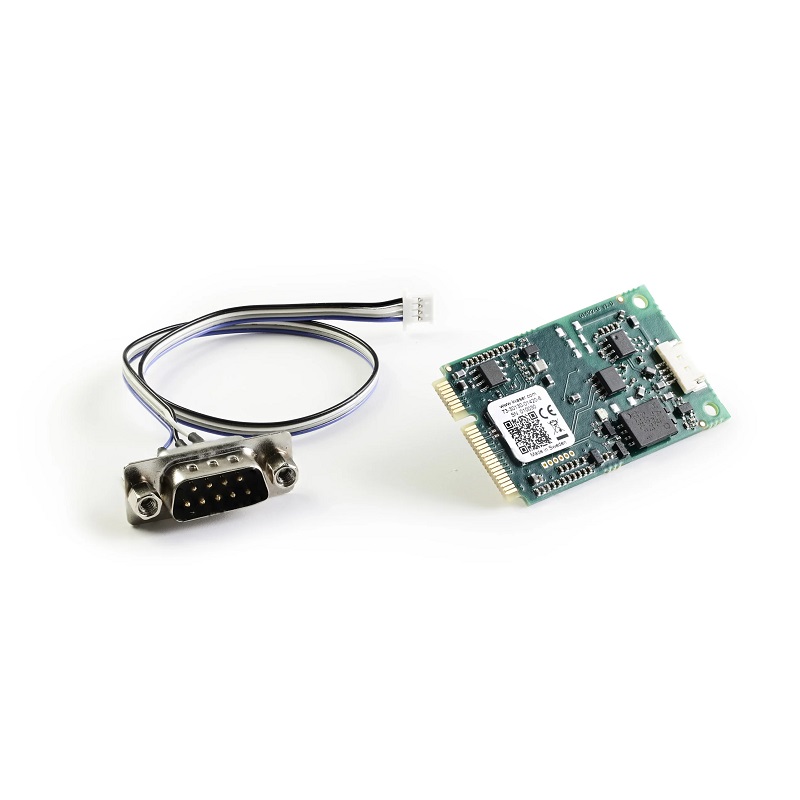

A 1xDS9 breakout cable is included.
Major Features
- Mini PCI Express CAN interface.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- 100 % compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
- Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Support for SocketCAN.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- Supports simultaneous usage of multiple Kvaser interfaces.
Specifications
| Bit Rate (kbps) | 20 - 1000 kbps |
|---|---|
| Height | 5 mm |
| Length | 51 mm |
| Width | 30 mm |
| Weight | 5 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Connectors | Molex 53780 PanelMate TM |
| Interfaces PC | Mini PCI Express |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Timestamp Resolution (µs) | 1 µs |
| Error Counters Reading | No |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP00 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | No |
| Categories | CABLES, Interfaces, Hardware, CAN |
| Channels | 1 |
