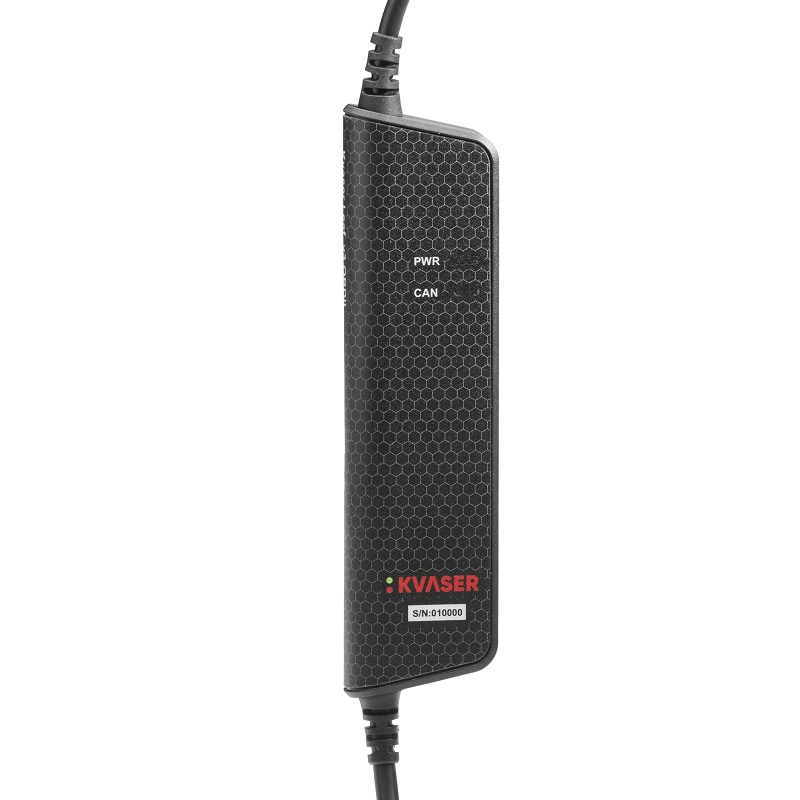

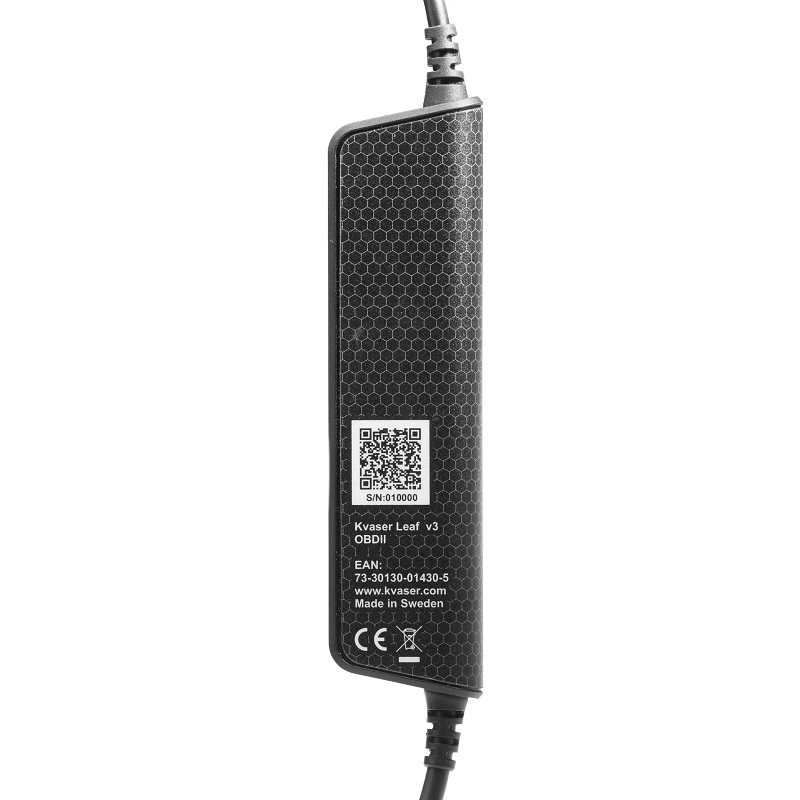

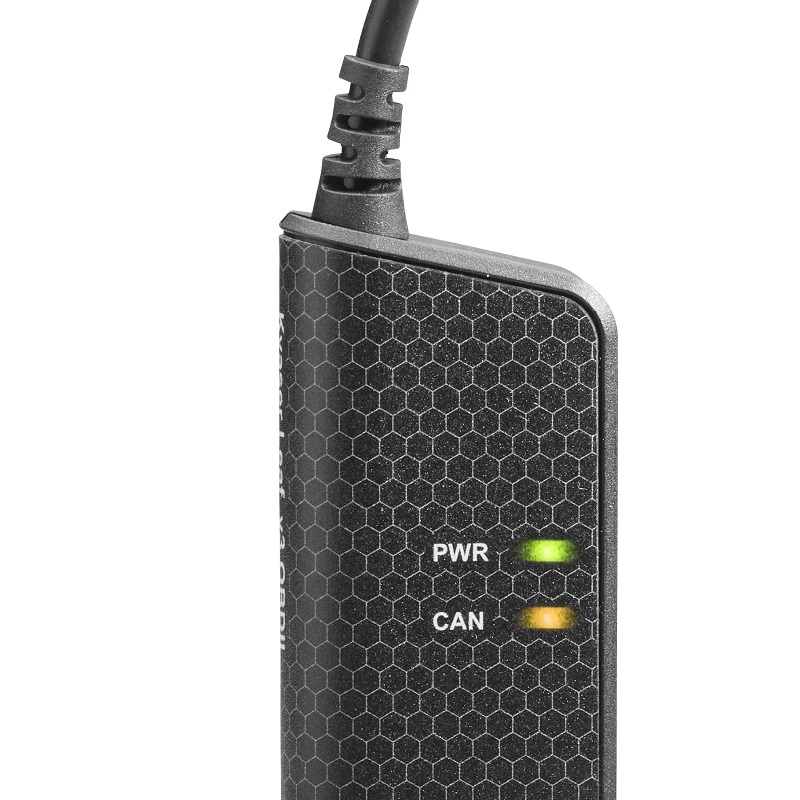

Kvaser Leaf v3 OBD-II
Part No.: MPKV-01430-5
Versatile interface with 16-pin OBD-II connector for accessing vehicle diagnostics and ECU data.
Product Description
Description

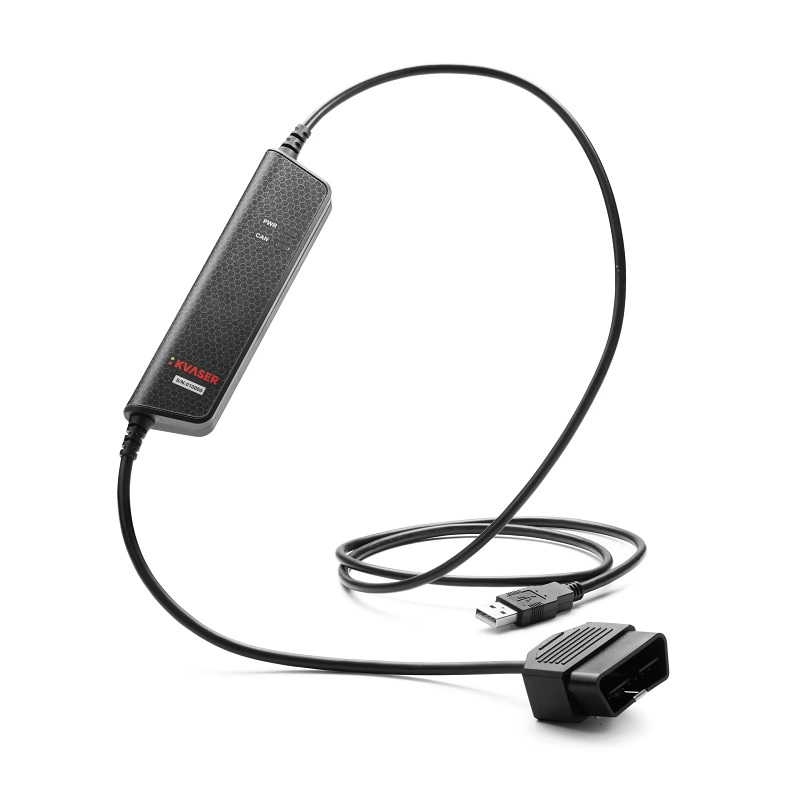

The Kvaser Leaf v3 OBD-II provides seamless access to vehicle diagnostics from your PC. It features a USB 2.0 Type-A connector and a 16-pin OBD-II connector, offering direct access to data from the Engine Control Unit (ECU). The ECU stores diagnostic trouble codes (DTCs), enabling your software to retrieve engine performance data, fuel efficiency metrics, emissions information, and system error codes via the OBD-II interface.
Capable of processing up to 20,000 messages per second, each timestamped with 50-microsecond accuracy, the Leaf v3 OBD-II is the ideal Vehicle Communication Interface (VCI), suitable for development purposes, production, after-sales and repair. It includes standard galvanic isolation for reliable and safe operation.
Major Features
- USB 2.0 CAN interface.

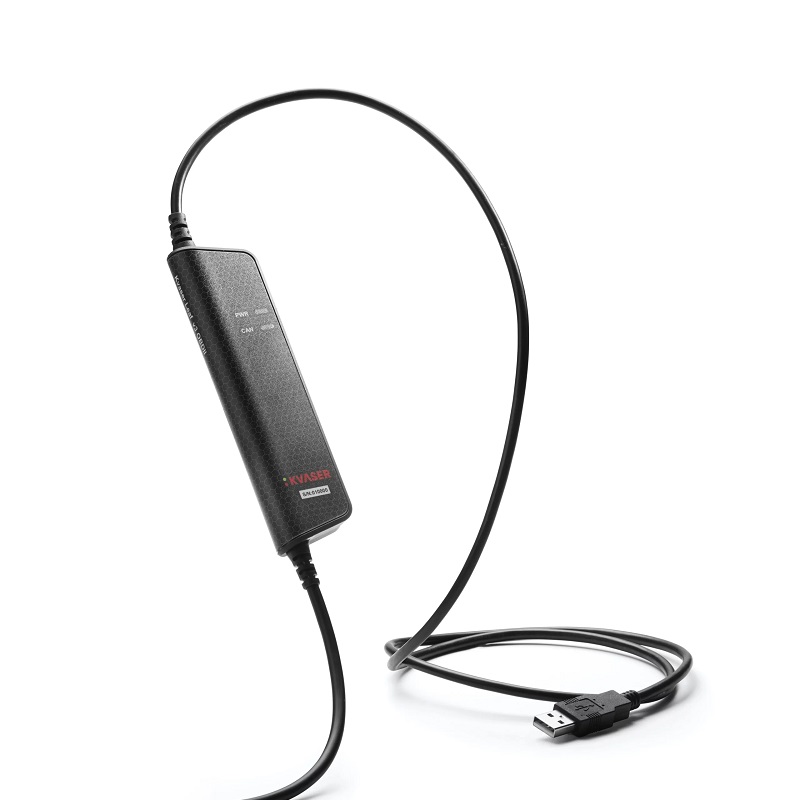

- Powered through the USB Type A-connector.
- Compact 16-pin OBD-II connector with extra strong strain relief.
- Supports CAN FD, up to 8 Mbit/s.
- Quick and easy plug-and-play installation.
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
- Supports silent mode for analysis tools – listen to the bus without interfering.
- 20 000 msg/s, each timestamped with a resolution of 50 μs.
- Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
- Support for SocketCAN.
- Supports simultaneous usage of multiple Kvaser interfaces.
Specifications
| Bit Rate (kbps) | 20 - 1000 kbps |
|---|---|
| Height | 17 mm |
| Length | 165 mm |
| Width | 35 mm |
| Weight | 130 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Connectors | OBD-II /J1962 |
| Interfaces PC | USB |
| CAN FD Bitrate | Up to 8 Mbit/s |
| Timestamp Resolution (µs) | 50 µs |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP40 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -20 °C to 70 °C |
| t script | No |
| Categories | Hardware, Interfaces, CAN |
| Channels | 1 |
