Kvaser Hybrid Pro CAN/LIN
Part No.: MPKV-01288-2
Kvaser Hybrid Pro CAN/LIN is a flexible, single channel interface that can be assigned as either CAN or LIN.
Product Description
Description
Kvaser Hybrid Pro CAN/LIN is a flexible, single channel interface that can be assigned as either CAN, CAN/FD or LIN. This makes the Kvaser Hybrid Pro CAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!
The Pro version offers advanced features such as support for Silent Mode, Error Frame Detection and Generation and Kvaser MagiSync™ automatic clock synchronization. Silent Mode allows you to listen in on a CAN bus without injecting new information that other nodes will detect, whilst Kvaser MagiSync™ synchronizes timestamps across multiple Kvaser MagiSync™-enabled devices without needing extra wires.
Major Features

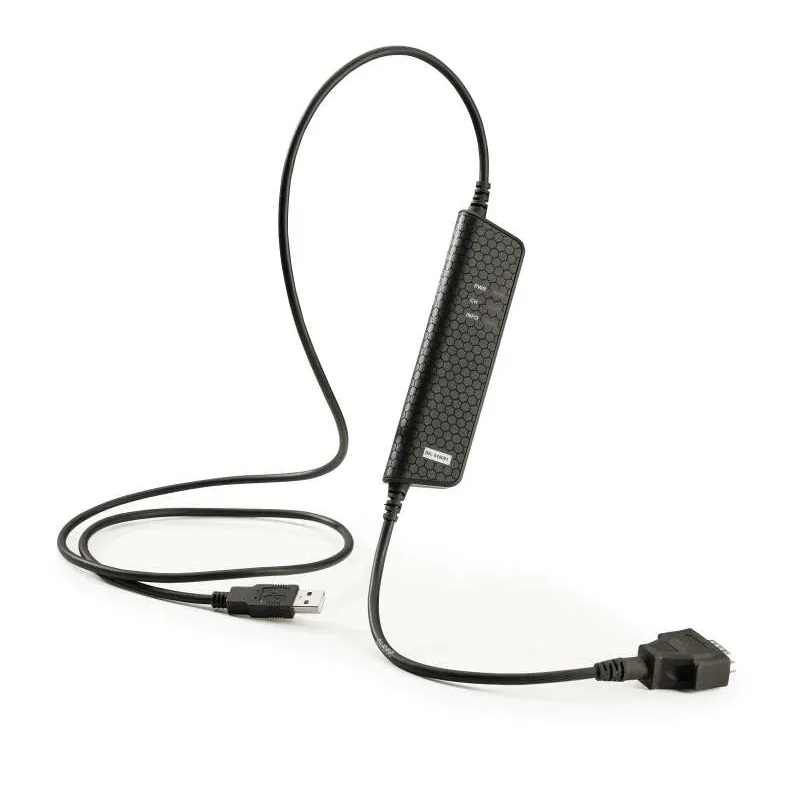

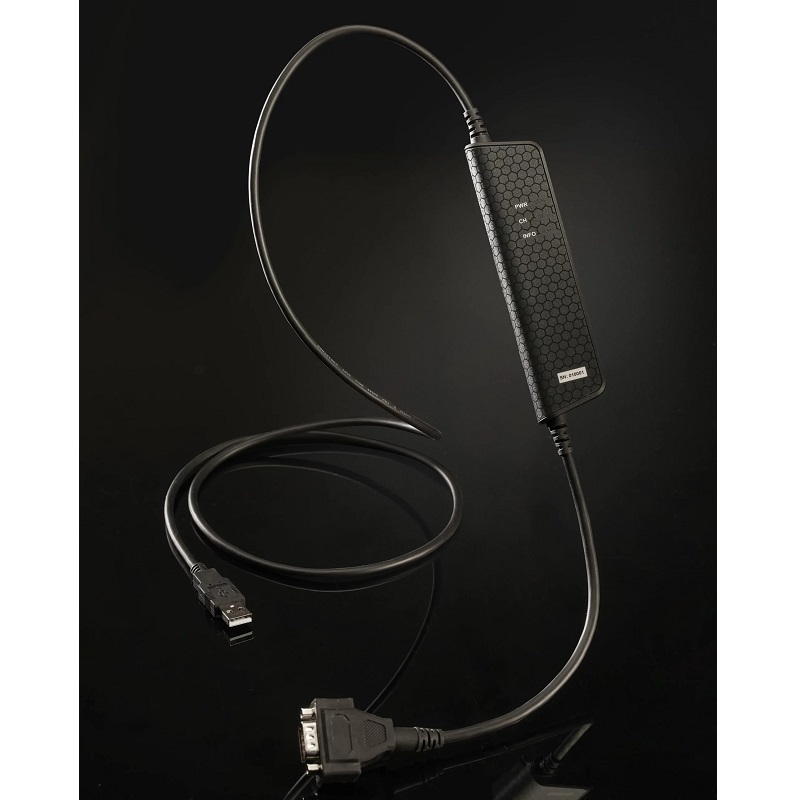

- Hybrid USB CAN/LIN interface with a 9-pin D-SUB.
- t-script allows users to set up complex triggers and filters on the device, perform ECU simulation or transform your device into a gateway/bridge.
- Supports CAN FD, up to 5 Mbit/s (with proper physical layer).
- Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
- Capable of sending up to 20000 messages per second.
- Quick and easy plug-and-play installation.
- Supports CAN 2.0 A and CAN 2.0 B active.
- USB powered (bus V+ reference required for LIN).
- Kvaser MagiSync – automatic time synchronization.

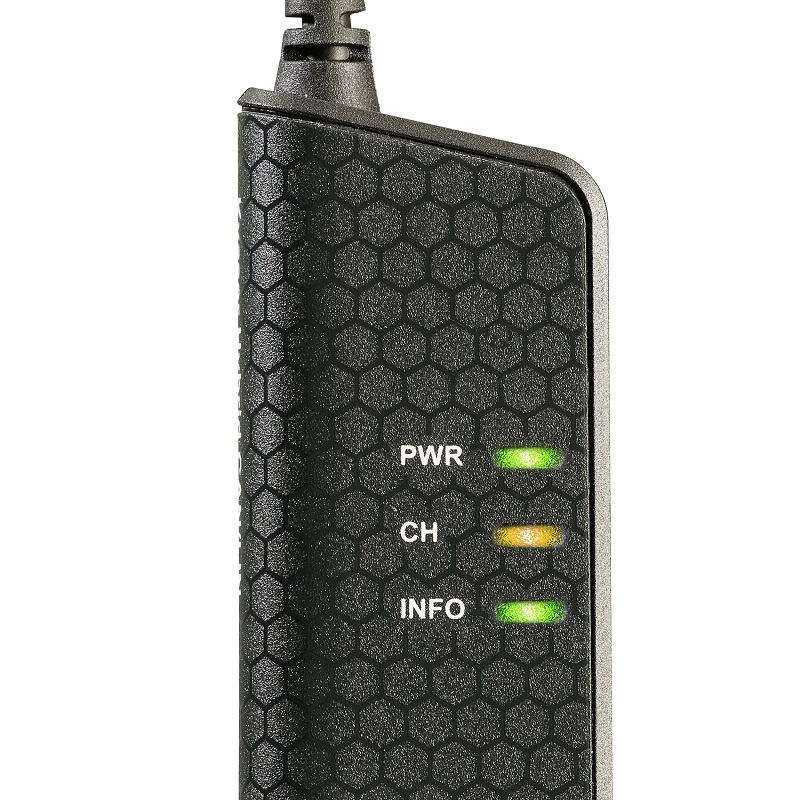

- LED lights alert user to device status.
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
- Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
- Extended operating temperature range from -40 to 85 °C.
Specifications
| Bit Rate (kbps) | 50 - 1000 kbps |
|---|---|
| Height | 17 mm |
| Length | 165 mm |
| Width | 35 mm |
| Weight | 116 g |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |

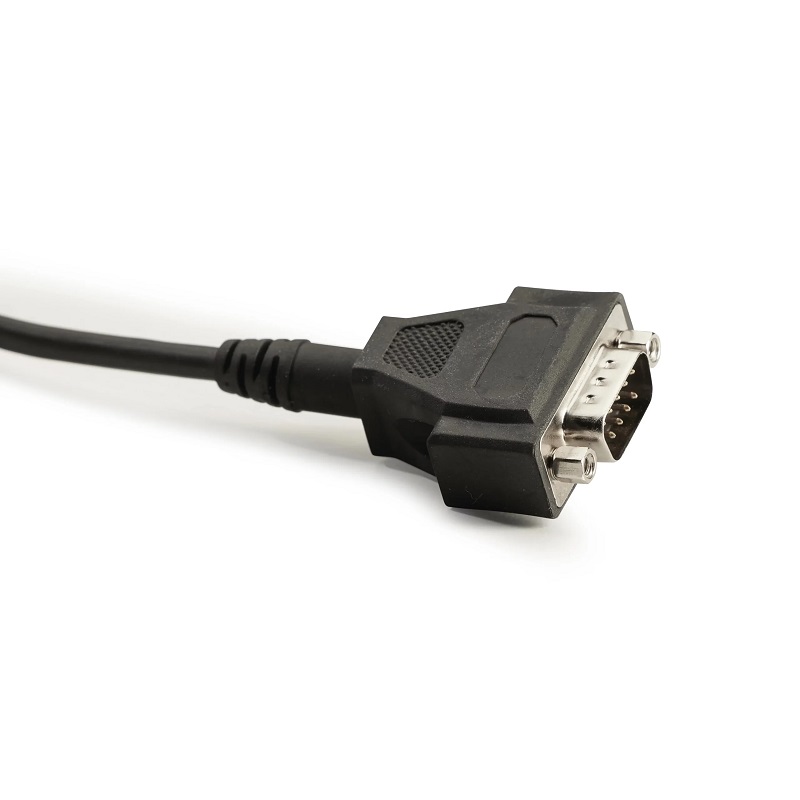

| Connectors | DSUB 9 |
| Interfaces PC | USB |
| CAN FD Bitrate | Up to 5 Mbit/s |
| Timestamp Resolution (µs) | 1 µs |
| Error Counters Reading | Yes |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP40 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) Linux |
| Temp range | -40 °C to 85 °C |
| t script | Yes |
| Categories | LIN, Interfaces, Hardware, CAN |
| Channels | 1 |
| Lin Bitrate | 1-20 kbit/s |
