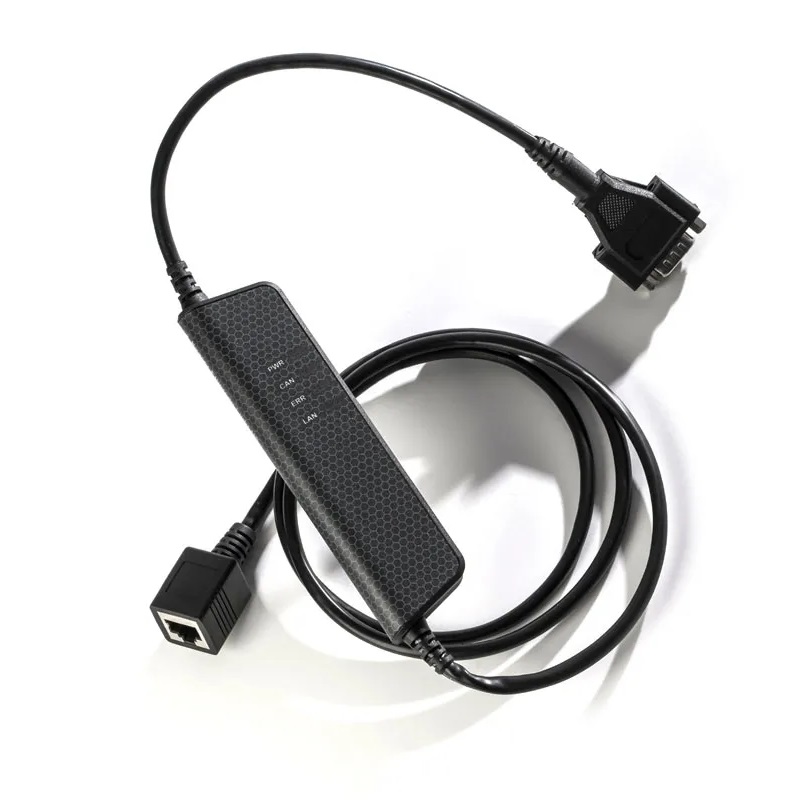

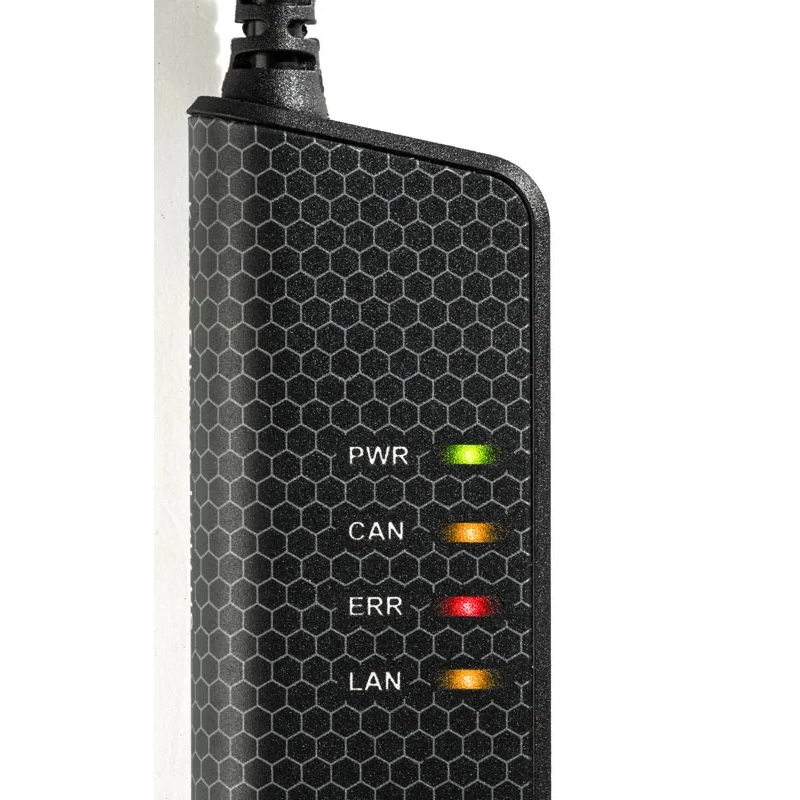

Kvaser Ethercan Light HS
Part No.: MPKV-00713-0
CAN to Ethernet interface for remote network access.
Product Description
Description

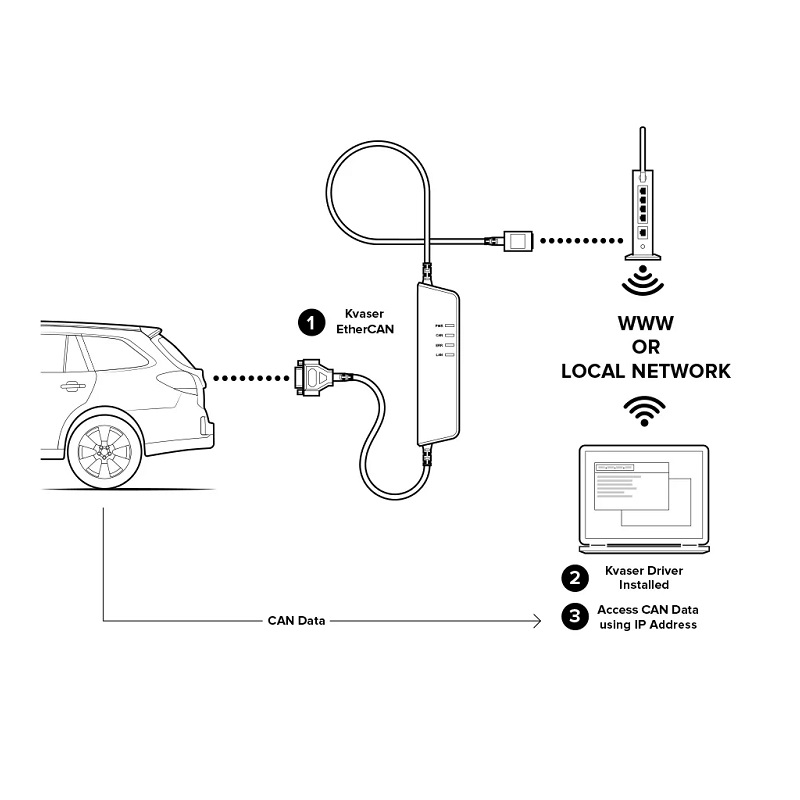

The Kvaser Ethercan Light HS is a CAN to Ethernet interface that, when linked over the Internet to an Ethernet-equipped PC, allows CAN data to be remotely accessed from anywhere in the world.
Ethercan makes it easy to implement the Internet of Things (IoT) concept by enabling data from any CAN product or system to be sent over a corporate network or the Cloud, using the standard Kvaser API. The Kvaser Ethercan device can be configured with a static IP and comes with an Ethercan Factory Reset Device to reset the configuration to factory default DHCP settings at the push of a button.
Major Features
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Ethernet connection has auto-MDIX, so it automatically detects and adjusts for Ethernet cable being used.
- Built-in Power over Ethernet (PoE) - receives data and power over the Ethernet cable.
- Also receives power over CAN so the Ethercan can be powered through devices like our T-Cannector v2.
- Small, lightweight plastic housing with galvanic isolation.
- Fully compatible with J1939, CANopen, NMEA 2000R and DeviceNet.

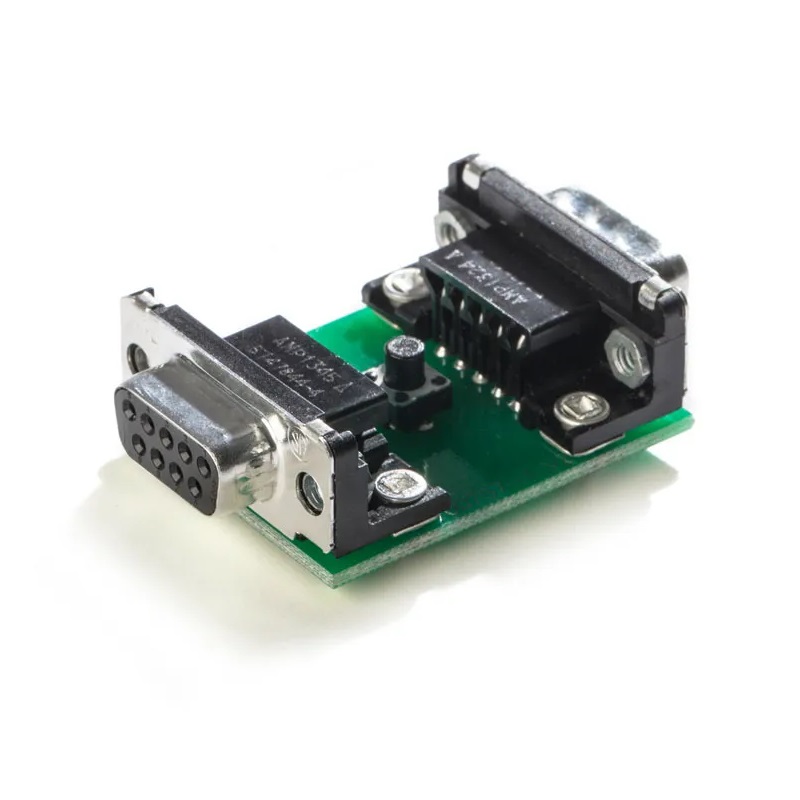

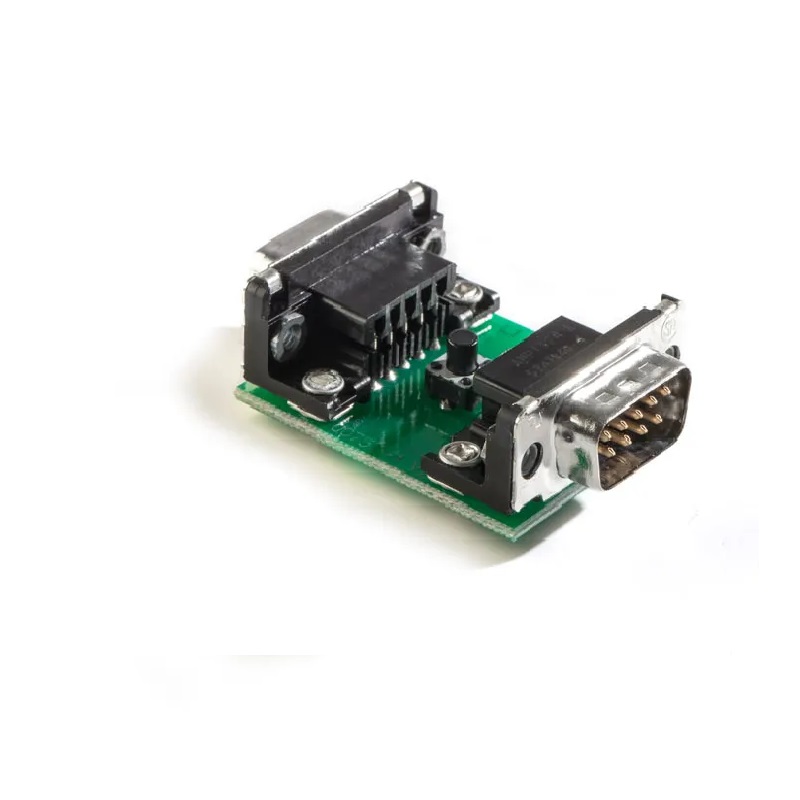

- Includes Ethercan Factory Reset Device. This device provides the ability to reset the Ethercan's IP address to factory defaults at the push of a button.
Specifications
| Bit Rate (kbps) | 40 - 1000 kbps |
|---|---|
| Height | 17 mm |
| Length | 165 mm |
| Width | 35 mm |
| Weight | 123 g |
| Messages Per Second Receive | 8000 mps |
| Messages Per Second Sending | 8000 mps |

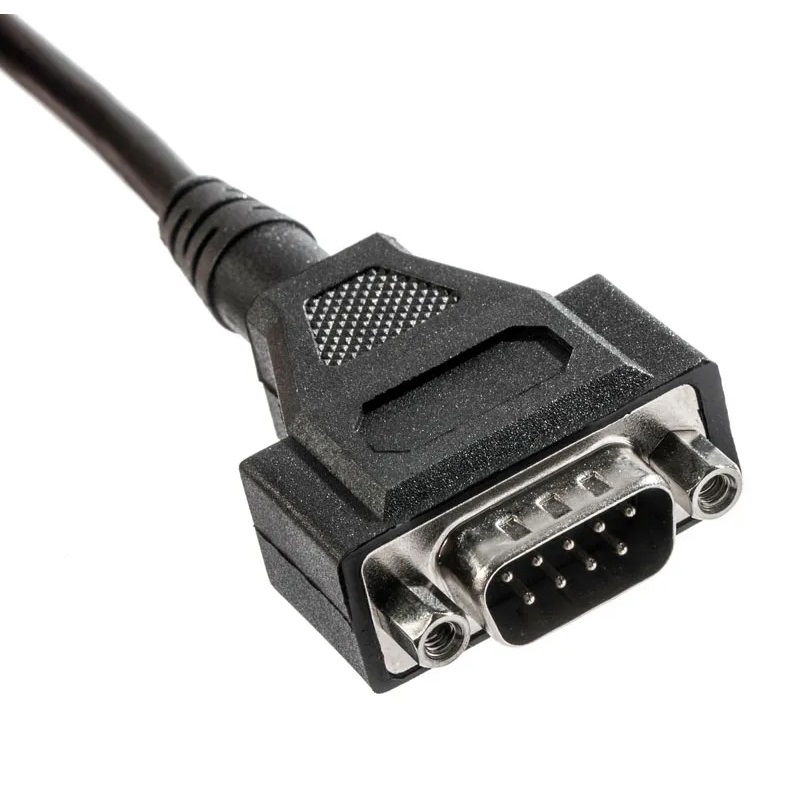

| Connectors | DSUB 9 |

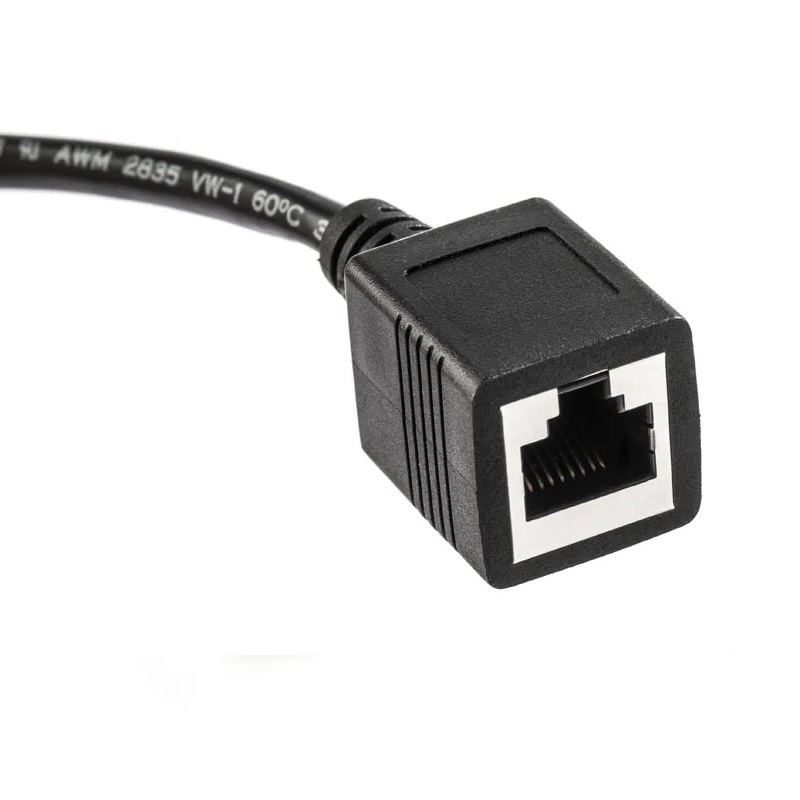

| Interfaces PC | Ethernet RJ45 |
| Timestamp Resolution (µs) | 100 µs |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP40 |
| Silent Mode | No |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) |
| Temp range | -20 °C to 70 °C |
| t script | No |
| Categories | Interfaces, Hardware |
| Channels | 1 |
