Kvaser BlackBird v2
Part No.: MPKV-00671-3
Single channel (WLAN) communication link for CAN with t-script.
Product Description
Description

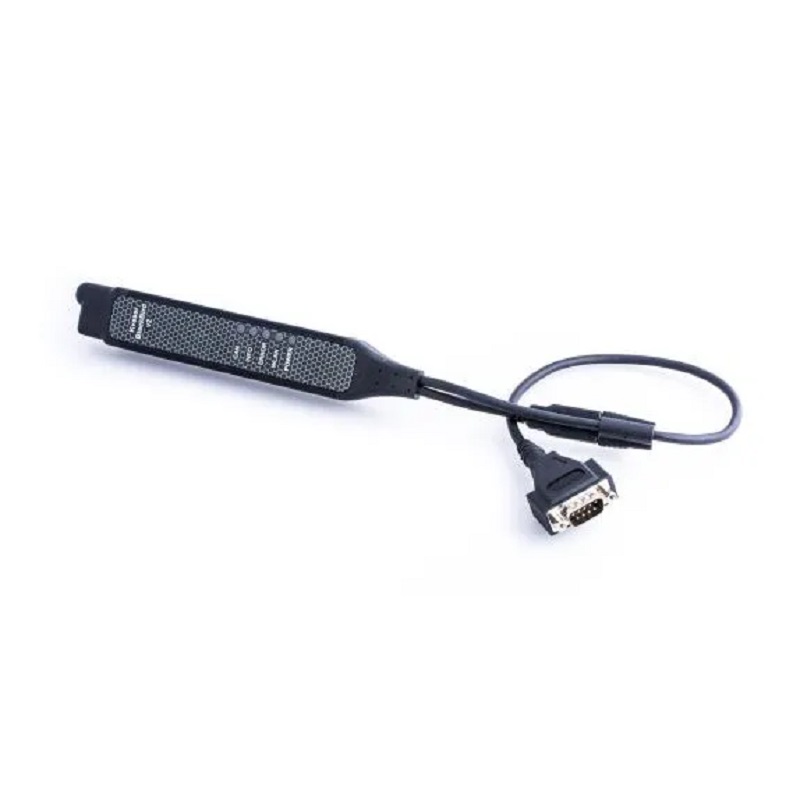

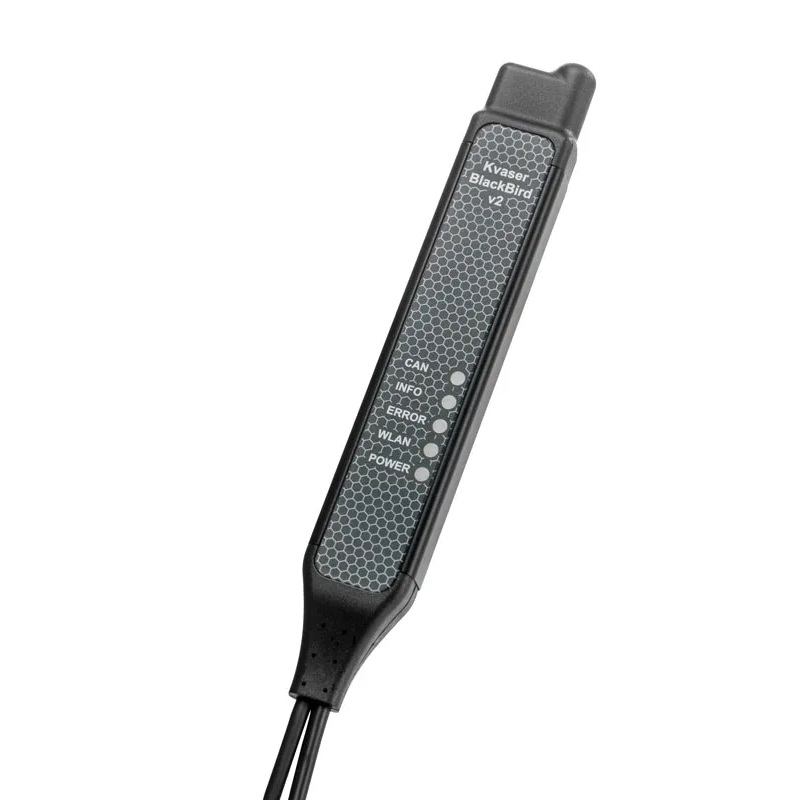

Kvaser BlackBird v2 is a high performance wireless (WLAN) communication link for the High Speed CAN bus. More powerful and versatile a WLAN solution than Kvaser's original BlackBird, Kvaser BlackBird v2 incorporates a new radio chip with up to 75% better range.
The BlackBird v2's ability to leverage existing wireless infrastructure makes it ideal for replacing cumbersome cable, accessing hard-to-reach CAN networks, or for monitoring a CANbus while in motion.
Major Features
- WLAN version 802.11b/g/n.

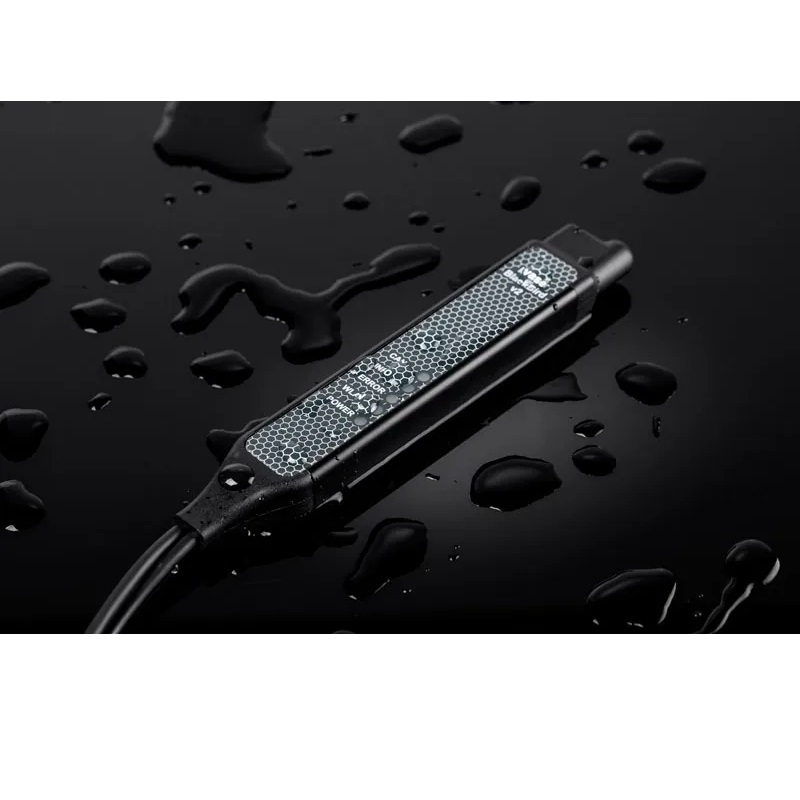

- IP65-rated for protection against water and dust.
- Responds to increased market demand for iOS and Android API with a “device agnostic” HTTP-based REST API (more info on REST >>)
- Up to 75% increased range.

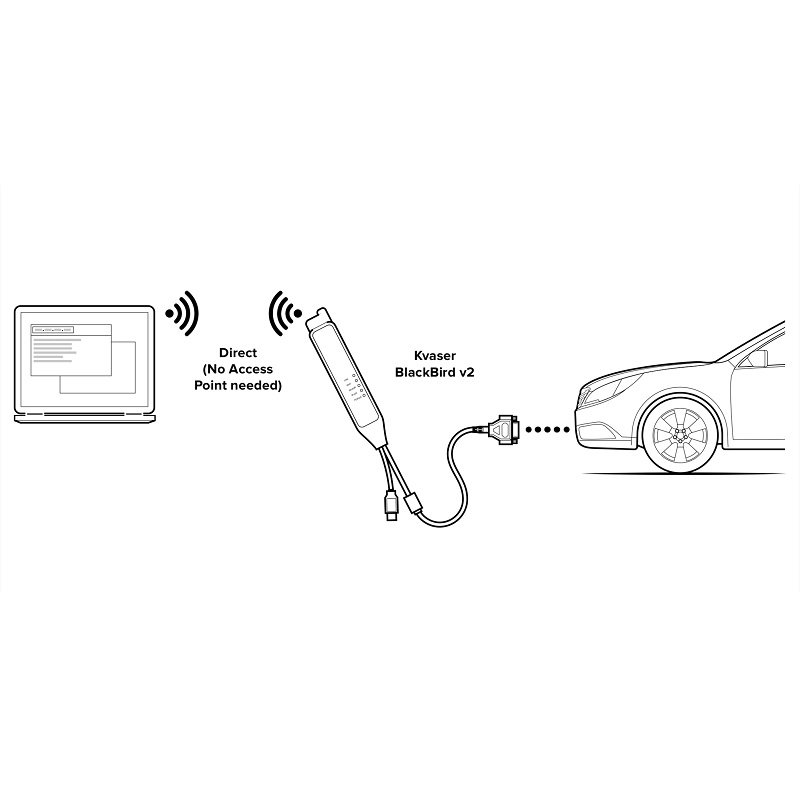

- Works in AdHoc and Infrastructure mode.
- Lightweight but highly rugged aluminum housing.
- Polyurethane cabling suitable for extreme environments.
- Galvanic isolation of the CAN bus driver stage to protect the hardware.
- Interfaces the CAN bus with a standard D-SUB connector.

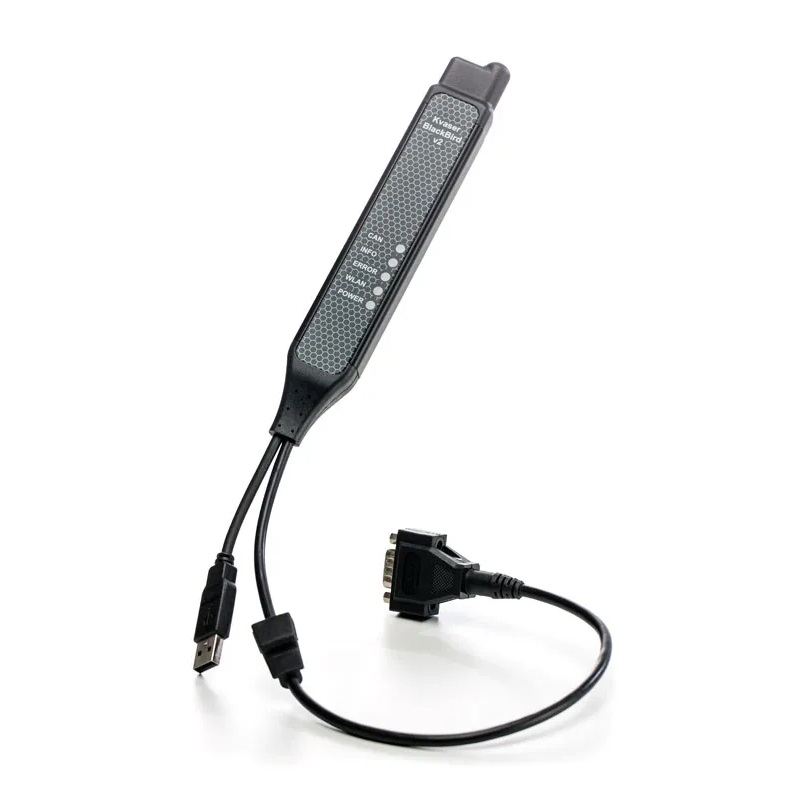

- Configured via USB connection.
- Can be used as a wired interface.
- Operating voltage CAN bus (7 - 40 V DC).
- Messages are time-stamped and synchronized with a precision of 25 microsecond.
- Supports High Speed CAN (ISO 11898-2).
- Supports 11-bit and 29-bit identifiers.
Specifications
| Bit Rate (kbps) | 40 - 1000 kbps |
|---|---|
| Height | 20 mm |
| Length | 170 mm |
| Width | 30 mm |
| Weight | 133 g |
| Messages Per Second Receive | 15000 mps |
| Messages Per Second Sending | 15000 mps |
| Connectors | DSUB 9 |
| Interfaces PC | WiFi |
| Timestamp Resolution (µs) | 25 µs |
| Error Counters Reading | Yes |
| Error Frame Generation | Yes |
| Error Frame Detection | Yes |
| Galvanic Isolation | Yes |
| IP Class | IP65 |
| Silent Mode | Yes |
| Regulatory Compliance | CE, FCC |
| Operating System |
Windows 7 (IA-32 and x86-64) Windows 8 (IA-32 and x86-64) Windows 10 (IA-32 and x86-64) Windows 11 (x86-64) |
| Temp range | -40 °C to 70 °C |
| t script | Yes |
| Categories | Interfaces, Hardware |
| Channels | 1 |
