PAE-Media Converter
Part No.: MPPK-IPEH-101101
It enables signal conversion between Automotive Ethernet and standard Ethernet networks for development, testing, and analysis applications.
Product Description
Description
The converter provides transparent bit-level communication and supports both Fast Ethernet and Gigabit Ethernet. The 100/1000 Mbit/s data rate can be configured manually or determined via Auto-Negotiation. With H-MTD and MATEnet Single-Pair Ethernet interfaces, plus USB or Phoenix connector power supply options, the device integrates flexibly into a wide range of applications.
The device can be configured via DIP switches, with settings adjustable during operation. The PAE-Media Converter also supports software configuration via USB connection and the USB API — for example, it can automatically generate SPE communication faults to verify vehicle behavior on a test bench.
Technical Specifications
Standard Ethernet Interface
- Compliant with IEEE 802.3u / 802.3ab, supporting 100BASE-TX / 1000BASE-T
- RJ45 connector
Single-Pair Ethernet (SPE) Interface
- Compliant with IEEE 802.3bw / 802.3bp, supporting 100BASE-T1 / 1000BASE-T1
- Switchable H-MTD or MATEnet connector
- Supports 100/1000 Mbit/s data rates, configurable manually or via Auto-Negotiation
- Configurable via DIP switches, adjustable during device operation
- Optional software configuration and status query via USB API; settings persist until device restart
- Supports 6 ~ 36 V power input (supply terminals), or 5 V power via USB-C
- Built-in temperature monitoring with automatic shutdown on overheating
- Extruded aluminum housing with flange mounting; front and rear panels made of composite material
- LED indicators display device status and power supply status
| Item | Operating Temperature Range |
|---|---|
| Product Version 1.0 | -40°C to +70°C |
| Extended Version | -40°C to +85°C |
.png)

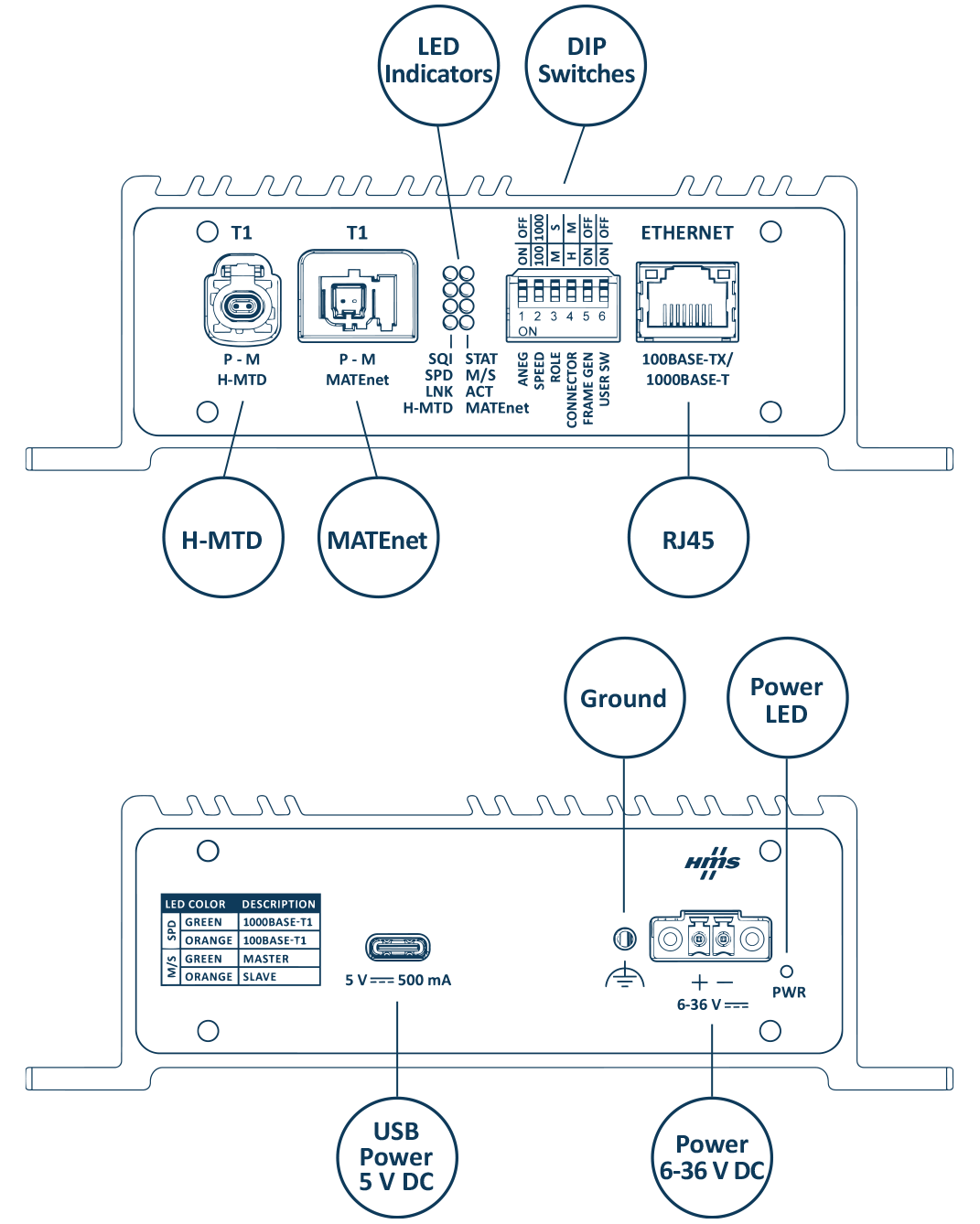

▲ PAE-Media Converter port layout
Application
The PAE Media Converter is ideal for automotive electronics development, testing, and validation environments. It bridges Automotive Ethernet networks (100/1000BASE-T1) with standard Ethernet equipment, allowing engineers to use their existing analysis tools directly for testing and diagnostics.
Its built-in controlled link interruption feature simulates real-world communication faults without physically disconnecting cables, enabling repeatable test cases. The device also supports Plug-and-Play for quick integration into existing test benches, and with the optional USB API, it can be integrated into automated test environments.

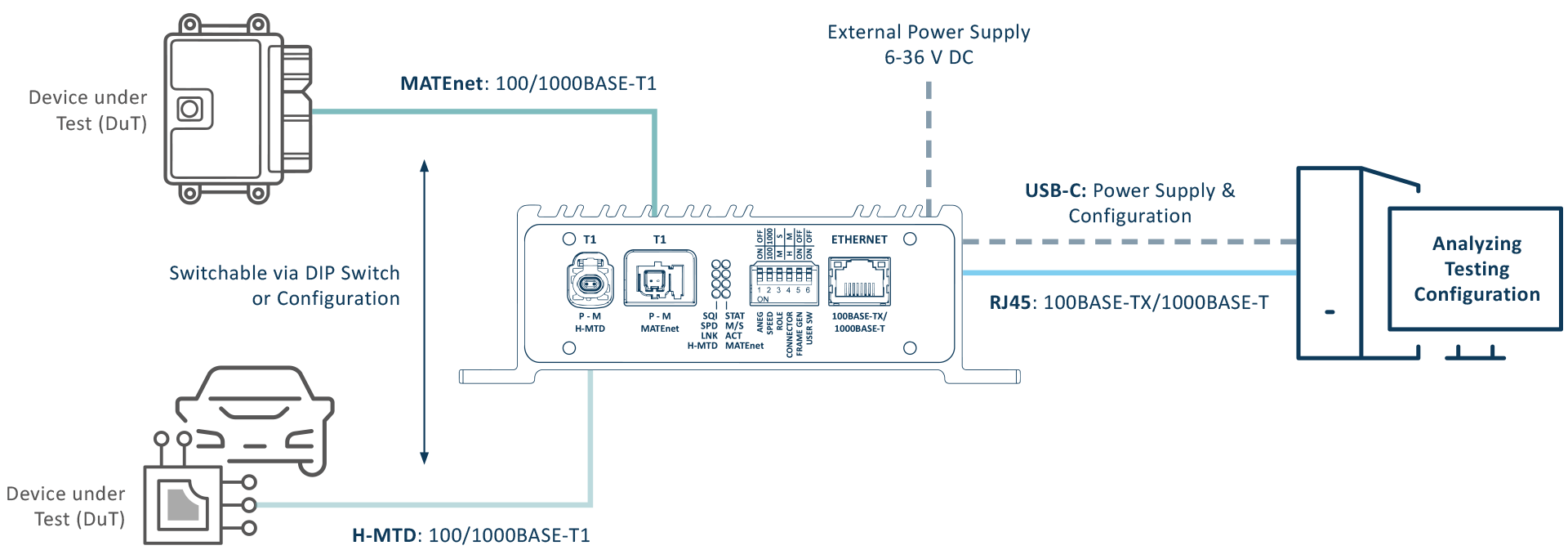

▲ PAE-Media Converter application scenario
Scope of Supply
Cable (Optional)
PAE-Cable H-MTD (MPK-IPEK-100001)
.png)
▲ Connector dimension drawing
The PAE-Cable H-MTD is designed for use with the PAE-Media Converter and other Automotive Ethernet devices equipped with H-MTD® ports. It provides a reliable, shielded connection between two H-MTD® interfaces.
H-MTD® (High-speed Miniature Twisted-pair Data) is a compact, high-frequency connector standard for Single-Pair Ethernet in automotive applications. It is one of the two dominant SPE connector types used in modern vehicle network architectures alongside MATEnet.
Technical Specifications
- 2 × H-MTD® socket (Jack)
- Shielded cable, type GG 2Speed® 251
- Length: 2.0 m
- Suitable for 100BASE-T1 and 1000BASE-T1 Single-Pair Ethernet connections
▲ Pin Assignment
PAE-Cable MATEnet (MPK-IPEK-100002)
▲ Connector dimension drawing
The PAE-Cable MATEnet is designed for use with the PAE-Media Converter and other Automotive Ethernet devices equipped with MATEnet ports. It provides a reliable, shielded connection between two MATEnet interfaces.
MATEnet is a standardized connector system for Single-Pair Ethernet (SPE) in automotive applications. Developed by TE Connectivity, it is widely used for 100BASE-T1 and 1000BASE-T1 connections in vehicle networks and test environments.
Technical Specifications
- 2 × MATEnet socket (female)
- Shielded cable, type GG 2Speed® 251
- Length: 2.0 m
- Suitable for 100BASE-T1 and 1000BASE-T1 Single-Pair Ethernet connections
▲ Pin Assignment
