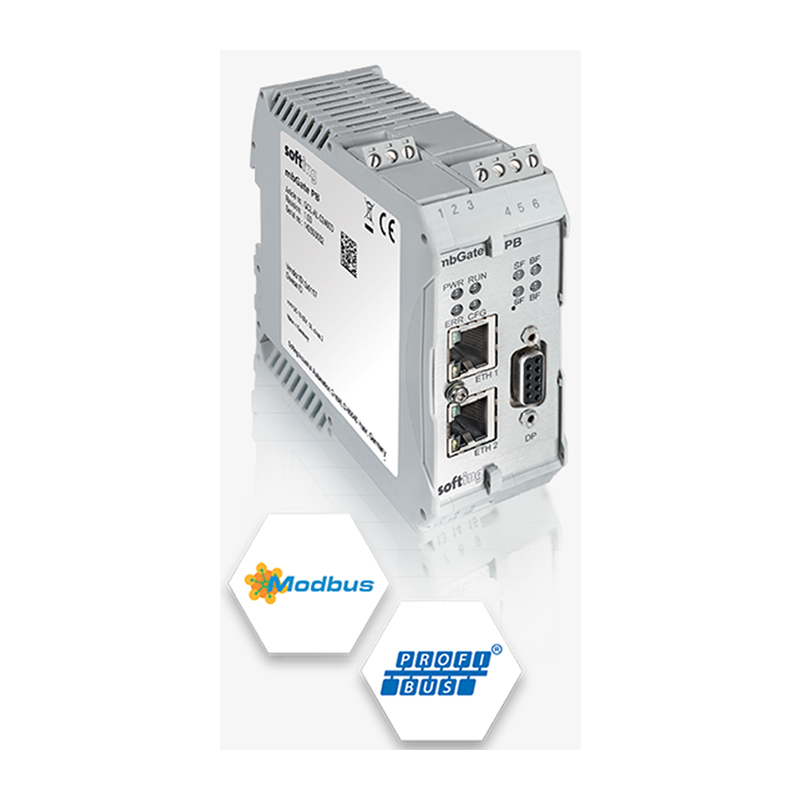

mbGate PB

Part No.: MPST-mbGate-PB
MODBUS TCP to PROFIBUS Gateway with PA/DP Master Functionality

產品介紹

MODBUS TCP SERVER to PROFIBUS PA/DP Master Gateway



Simple connection of PROFIBUS Slave Devices to Modbus Control Systems via Internal I/O Mapping

With mbGate PB it is possible to integrate up to 2 PROFIBUS PA segments and 1 PROFIBUS DP segment into Modbus TCP control systems. It acts as Modbus TCP Server and PROFIBUS Master. With our gateway the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.

Similar solutions:

mbGate PA: Modbus TCP to PROFIBUS PA Gateway - Integrate PROFIBUS PA segments into Modbus Control system

mbGate DP: Modbus TCP to PROFIBUS DP Gateway - Integrate PROFIBUS DP segments into Modbus Control system


Overview

Key Component for Transition to State-of-the-Art Technology

  • Simple replacement of installed PROFIBUS DP/PA segment couplers
  • Re-use of existing PROFIBUS segments without requiring modification

Direct Connectivity to PROFIBUS Segments

  • Single access point to PROFIBUS DP and PROFIBUS PA segments from Modbus TCP networks
  • Acting as Modbus TCP Server and PROFIBUS PA and PROFIBUS DP Master
  • Support of one PROFIBUS DP segment and up to two PROFIBUS PA segments

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major Modbus engineering tools such as Schneider Unity Pro or Siemens TIA Portal
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM



Order Information

Scope of Delivery

  • Hardware: mbGate PB Gateway
  • Documentation: On Website

Order Numbers

  • GCA-EN-024808: mbGate PB, Modbus TCP to PROFIBUS Gateway. Supports 2 PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).

Additional Products and Services

  • LRA-EN-024851: gatePlusHighAvailability, License for activating redundancy features in mbGate PB
  • LRL-DY-134501: dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access for any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge
  • GCA-EL-024802: mbGate PA, Modbus TCP to PROFIBUS PA Gateway. Supports up to 2 PA segments (up to 32 PA devices).
  • GCA-EL-024804: mbGate PA, Modbus TCP to PROFIBUS PA Gateway. Supports up to 4 PA segments (up to 64 PA devices).
  • GCA-EN-024806: mbGate DP, Modbus TCP to PROFIBUS DP Gateway. Supports 1 PROFIBUS DP segment (RS485).

Fieldbus Infrastructure

  • Installation solutionsWhen using the high-power trunk topology or FISCO, we offer in cooperation with R.Stahl, fieldbus infrastructure components with PROFIBUS PA and FOUNDATION fieldbus H1 – this ranges from power supply, physical layer diagnostics and field device couplers to termination resistors.
