F3624

Part No.: MPFF-IoT-IR-F3624
This is a F3X24 3G/4G WIFI Industrial Router is a kind of Cellular Router that provides data transfer by public network.

產品介紹

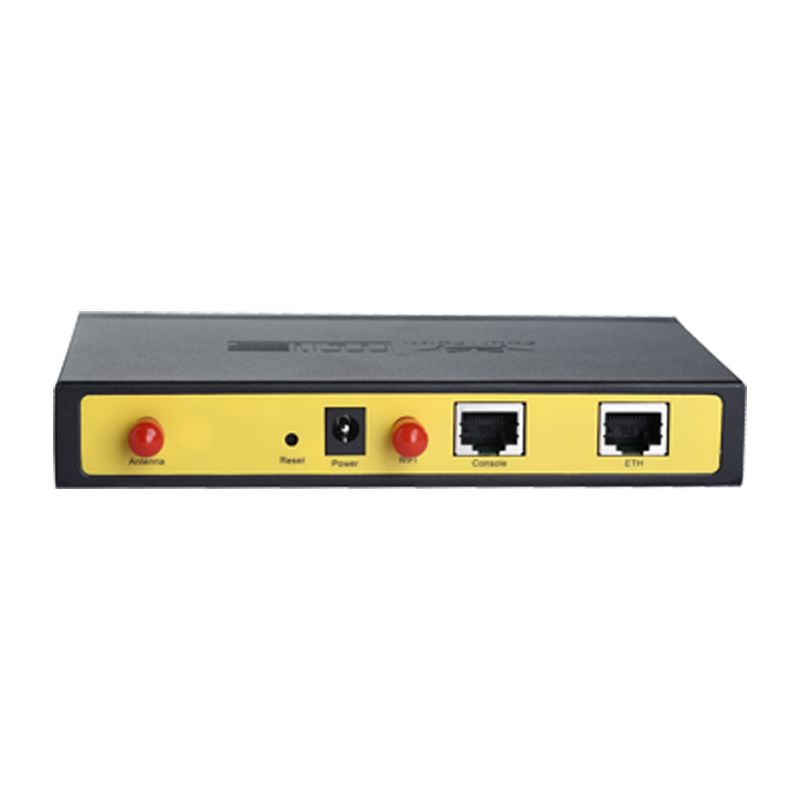

F3624 Industrial Router Cdma2000 1x EVDO

  • CDMA2000 1X EVDO
  • Powerful WIFI
  • Signal strength display in real time
  • Support VPN link
  • CPU processing speed increased by 3 times
  • Controllable bandwidth resource allocation
  • Low power consumption
  • Supporting device management platform

Features


Reliable networking and communications

Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication


Data processing and transmission speed upgrade

CPU processing speed increased by 3 times, WIFI transmission speed increased to 150 Mbps from 54 Mbps, built-in FLASH RAM capacity enhanced to 2 times, to meet the demand for wireless transmission of large amount of data, such as pictures, video, etc. Clearer and smoother.


Controllable bandwidth resource allocation

New flow control, traffic recording, real-time network speed display function, depending on the type of network protocol, bandwidth allocation mode in accordance with a pre-customized management


Supporting device management platform

Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects.


Signal strength display in real time

Real-time display of the network signal strength, and enhance the efficiency of on-site management and maintenance


Provide more security deployment scenarios

Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible


A variety of savings flows and reduce power consumption mode

From time to time on the assembly line and the timer switch function, support a variety of upper and lower trigger modes, including text messages, phone ringing trigger on the offline mode, serial data, network data, effectively saving flow, reduce power consumption.。


Powerful WIFI

WIFI support 802.11b/g/n, support WIFI the AP, AP Client, repeater, repeater bridge and WDS, etc., and support for WEP, WPA and other encryption to meet more WIFI communication needs. WIFI integrated design with built effectively enhance the stability of the product.

Reference



Cellular Specification


Item Content
Cellular
Module
Industrial cellular module
Standard
and Band
CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),
EVDO Rev B 800/1900MHz(optional)
450MHz (optional)
CDMA2000 1X RTT, IS-95 A/B
Bandwidth Download speed:3.1Mbps, upload speed:1.8Mbps;Rev B(optional):
Download speed:14.7Mbps, upload speed:5.4Mbps
TX Power <23dBm
RX
Sensitivity
<-104dBm

WIFI Specification


Item Content
Standard IEEE802.11b/g/n
Bandwidth
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security
WEP, WPA, WPA2, etc.
WPS (optional)
TX Power 21.5dBm(11g),26dBm(11b)
RX
Sensitivity
<-72dBm@54Mpbs

Hardware System


Item Content
CPU Industrial 32bits CPU
FLASH 8MB(Extendable to 64MB)
RAM 64MB

Interface Type


Item Content
Ethernet 1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic
isolation protection
Serial
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator "Power", "System", "Online", "Link/ACT", "WIFI", “Signal Strength”
Antenna
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset Restore the router to its original factory default settings

Power Supply


Item Consumption
Standard
Power
DC 12V/1.5A
Power
Range
DC 5~36V
Consumption <450mA (12V)

Physical Characteristics


Item Content
Housing Iron, providing IP30 protection
Dimensions 157x97x25 mm
Weight 440g

Environmental Limits


Item Content
Operating
Temperature
-35~+75ºC(-31~+167℉)
Storage
Temperature
-40~+85ºC (-40~+185℉)
Operating
Humidity
95% ( unfreezing)
